Quick Details
-
Warranty:
-
3 years gravel vaccum pump
-
Brand Name:
-
AN PUMP 4x3dah slurry pump
-
Model Number:
-
AM sand and gravel suction pump
-
Place of Origin:
-
hebei sand pump
-
Horsepower:
-
pump 100 hp
-
Power Source:
-
electric fuel pump 24v
-
Structure:
-
sand dragging machine pump
-
Outlet Size:
-
2 inch dredge pump
-
Power:
-
centrifugal pumps 75 kw
-
motor:
-
gold high pressure pump with motor
-
Medium:
-
mini sand and rock pump
-
Market:
-
sand suction pump india
-
Usages:
-
pump casing resin sand
-
Stocking:
-
dredgeing pump motor
-
Sand Pump:
-
sand filter pump tuv
-
Material:
-
drainable sand pump
-
Seal:
-
dredge pump cut bed
-
Theory:
-
Centrifugal sand extraction pumps
-
Driven:
-
excav mount dredg pump
-
App.:
-
diesel engine dredger pump
Quick Details
-
Application:
-
Mining industry
-
Pressure:
-
high pressure pump sensor
-
Voltage:
-
230 to 480 v sand pump equipment
-
Warranty:
-
3 years gravel vaccum pump
-
Brand Name:
-
AN PUMP 4x3dah slurry pump
-
Model Number:
-
AM sand and gravel suction pump
-
Place of Origin:
-
hebei sand pump
-
Horsepower:
-
pump 100 hp
-
Power Source:
-
electric fuel pump 24v
-
Structure:
-
sand dragging machine pump
-
Outlet Size:
-
2 inch dredge pump
-
Power:
-
centrifugal pumps 75 kw
-
motor:
-
gold high pressure pump with motor
-
Medium:
-
mini sand and rock pump
-
Market:
-
sand suction pump india
-
Usages:
-
pump casing resin sand
-
Stocking:
-
dredgeing pump motor
-
Sand Pump:
-
sand filter pump tuv
-
Material:
-
drainable sand pump
-
Seal:
-
dredge pump cut bed
-
Theory:
-
Centrifugal sand extraction pumps
-
Driven:
-
excav mount dredg pump
-
App.:
-
diesel engine dredger pump

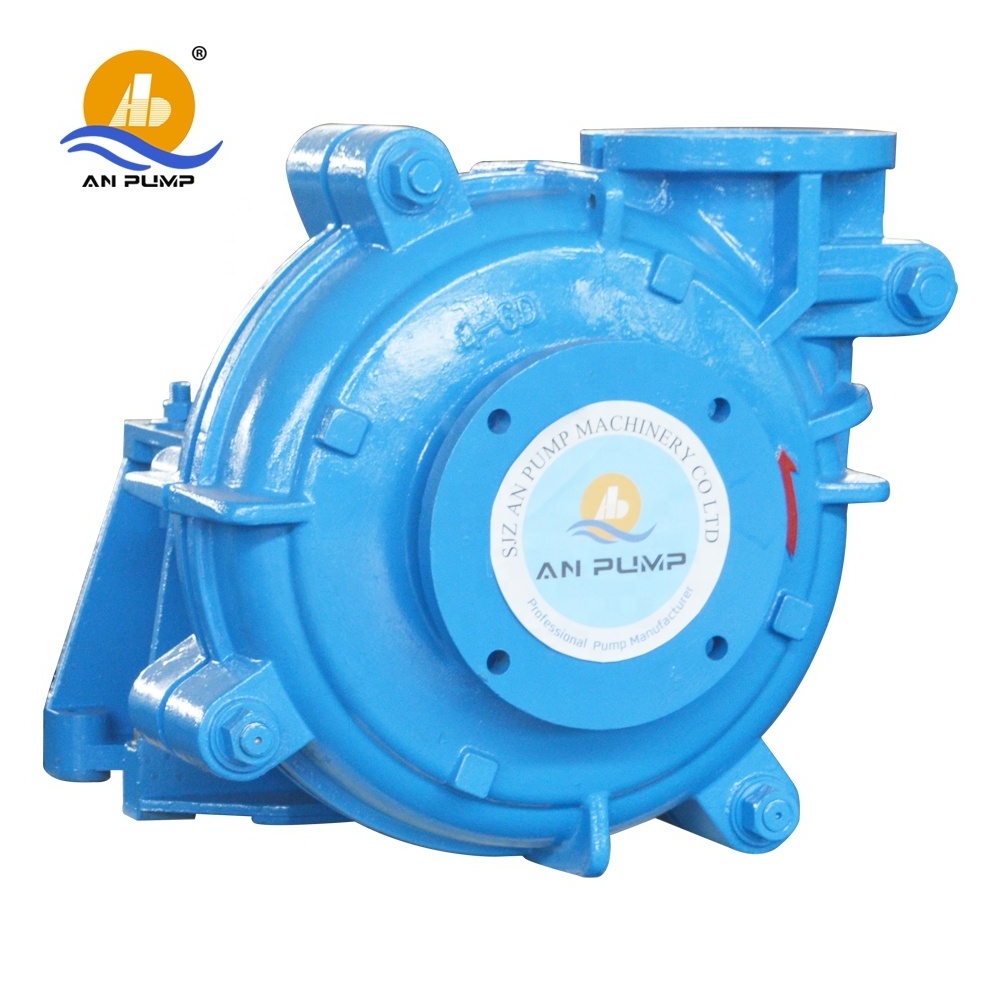

The AM series slurry pump is the horizontal centrifugal slurry pump.
It is the heavy-duty pump in mine and mineral processing for anti-abrasive and anti-corrosion conditions work.
The AM series slurry pump could handle all kinds of slurry pump, mud, and sludge in the dredge, and lime in FGD processing at the power plant.
There are different types of seals including gland packing seals, expeller seals, and mechanical seals.
It could be driven by an electric motor or diesel engine and we have an engineering professional for your pump selection and related equipment select.
| Model | Capacity | Head | Speed | NPSHr | Efficiency | Shaft Power | Power | Dia. of pump | |
| (m3/h) | (m) | ( r/min) | (m) | (%) | (kw) | (kw) | Inlet | Outlet | |
| 1.5/1B-AM(R) | 3.6-22 | 5-70 | 1200-3800 | 3.2 | 20-40 | 0.34-9.36 | 1.5-15 | 38 | 25 |
| 2/1.5B-AM(R) | 7.2-50 | 7-61 | 1200-3200 | 3 | 18-45 | 0.93-13.5 | 1.5-15 | 51 | 38 |
| 3/2C-AM(R) | 21.6-89 | 13-63 | 1300-2700 | 3 | 45-60 | 1.9-24.1 | 4-30 | 76 | 51 |
| 4/3C-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-30 | 102 | 76 |
| 4/3D-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-37 | 102 | 76 |
| 6/4D-AM(R) | 72-360 | 12.6-54 | 800-1480 | 3-6.8 | 50-68 | 6.27-51.07 | 15-55 | 152 | 102 |
| 6/4E-AM(R) | 93.6-385 | 21.7-58 | 1050-1600 | 3-7.8 | 50-68 | 11.9-101 | 22-110 | 152 | 102 |
| 8/6E-AM(R) | 126-648 | 10-58 | 500-1100 | 2-7.5 | 51-72 | 8.1-103 | 22-110 | 203 | 152 |
| 10/8ST-AM | 216-972 | 11-46 | 400-730 | 2-8.5 | 50-71 | 16.47-158 | 45-250 | 254 | 203 |
| 12/10ST-AM | 316.8-1620 | 10-55 | 350-730 | 2-7.2 | 60-80 | 18.26-249 | 30-380 | 305 | 254 |
| 14/12ST-AM | 504-2455 | 13-61 | 300-590 | 2-12.8 | 60-77 | 36.6-449 | 55-480 | 356 | 305 |
Performance Chart
slurry pump application
They are widely used in industry of mining, electrical power, metallurgy, coal, environmental, etc
