Quick Details
-
Brand Name:
-
Youjie, Youjie
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1 KG
-
Name:
-
Medium effect bag filter
-
Filter material:
-
Synthetic fiber
-
Frame material:
-
Galvanized sheet
-
Model Number:
-
Pocket filter
-
Color:
-
Customized Color
-
Size:
-
Customsize
-
Usage:
-
Office building fresh air & air conditioning air supply system
-
MQQ:
-
10
Quick Details
-
Efficiency:
-
60%-80%
-
Porosity:
-
1-5um
-
Place of Origin:
-
Guangdong, China, Guangdong, China (Mainland)
-
Brand Name:
-
Youjie, Youjie
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1 KG
-
Name:
-
Medium effect bag filter
-
Filter material:
-
Synthetic fiber
-
Frame material:
-
Galvanized sheet
-
Model Number:
-
Pocket filter
-
Color:
-
Customized Color
-
Size:
-
Customsize
-
Usage:
-
Office building fresh air & air conditioning air supply system
-
MQQ:
-
10

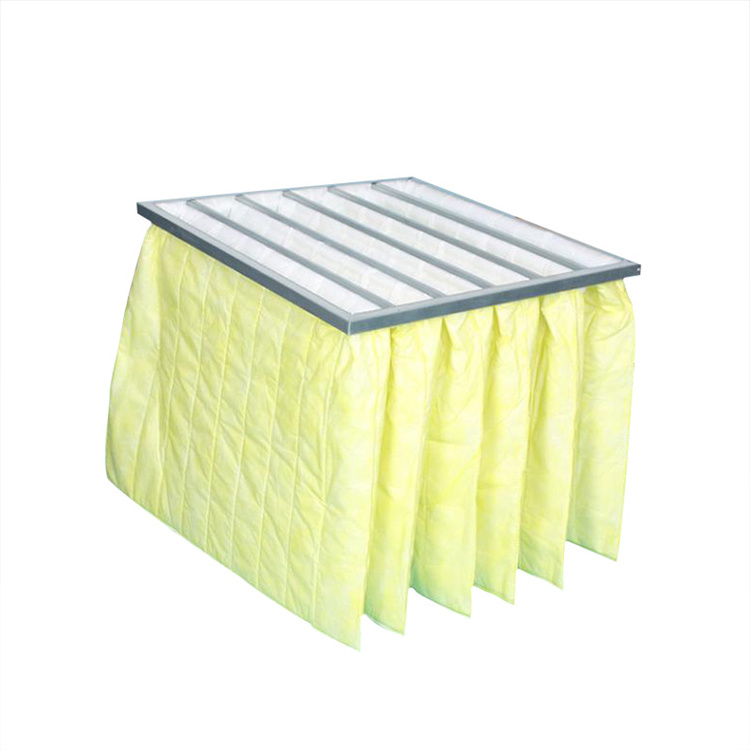

Bag filter/Pocket filter
Recommended applications
The medium replacement air filter generally adopts a bag type structure, which can effectively enlarge the windward surface of the filter, so that the filter has the advantages of large dust holding capacity and low wind speed. Therefore, it is considered to be the best medium filter structure. Due to these advantages, bag filters are widely used in central air-conditioning ventilation systems, and air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
Technical parameters of air filter
|
Initial resistance (Pa) |
Standard EN779 |
Filtration efficiency (Dust-spot) |
|
≤50-≤110Pa |
F5-F9 |
45%~ 99%@0.5μm |
Main material:
|
Filter media |
F5-F9 efficiency melt-blown non-woven fabric |
|
Frame |
Aluminum alloy frame or galvanized iron frame |
|
Sealing strips |
EVA or not |
Features :
Each filter bag is made of ultra-fine synthetic fibers in a special weave process to avoid the discomfort that traditional glass fiber material may cause to the human body. The filter media contains electrostatic fibers, which are particularly excellent in the filtration of sub-micron dust particles. Therefore, the bag filter has the characteristics of high dust capture rate, high air permeability, and long service life.
The four sides of the filter bag are fused by ultrasonic and each filter bag is separated by a metal strip, which not only increases the strength, but also prevents the filter bag from breaking due to the wind-cut friction under high wind velocity condition.
Each filter bag has six separators evenly distributed in the bag in case of over-expansion and mutual obstruction when under wind pressure. This structure increases the effective filter area and filtration efficiency.
Optional specifications
Note: The following is the common size of the air filter. Youjie can also provide custom size filters according to your requirements.
|
Efficiency in NBS(%) |
Nominal Size(W×H×D) (inch) |
Actual Size(W×H×D) (mm) |
Pockets(P) |
Rated Capacity (M3/H) |
Pressure Drop(Pa) |
|
F8 |
24"×24"×15" |
595×595×381 |
6 |
3400 |
90 |
|
|
12"×24"×15" |
295×595×381 |
3 |
1700 |
|
|
|
24"×24"×24" |
595×595×595 |
6 |
3400 |
|
|
|
12"×24"×24" |
295×595×595 |
3 |
1700 |
|
YouJie can use F5-F9 class filter media to make bag filters.
