Quick Details
-
Cutting Area:
-
1300x900mm
-
Control Software:
-
leetro or RD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
remax
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Graphic format supported:
-
AI,PLT,DXF,BMP,DST etc
-
Resolution ratio:
-
≤0.0125mm
-
Highest scanning precision:
-
4000dpi
-
Guarantee:
-
1 year , 6 months for laser tube
-
Engraving Speed:
-
1000mm/s
-
Supply voltage:
-
110/220v±10% ,50/60Hz
-
package:
-
1950* 1350* 1200mm
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Spain, Bangladesh
-
Showroom Location:
-
Spain, Bangladesh
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-800mm/s
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
1300x900mm
-
Control Software:
-
leetro or RD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
remax
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Graphic format supported:
-
AI,PLT,DXF,BMP,DST etc
-
Resolution ratio:
-
≤0.0125mm
-
Highest scanning precision:
-
4000dpi
-
Guarantee:
-
1 year , 6 months for laser tube
-
Engraving Speed:
-
1000mm/s
-
Supply voltage:
-
110/220v±10% ,50/60Hz
-
package:
-
1950* 1350* 1200mm
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Spain, Bangladesh
-
Showroom Location:
-
Spain, Bangladesh
-
Marketing Type:
-
Ordinary Product
welcome to visti our product ,we will give the best service to you and product quality guarantee,feel free to contact me
we are a specialized manufacturer of cnc router, laser engraving machine and plasma metal cutting machines
sincerely hope to cooperate with you

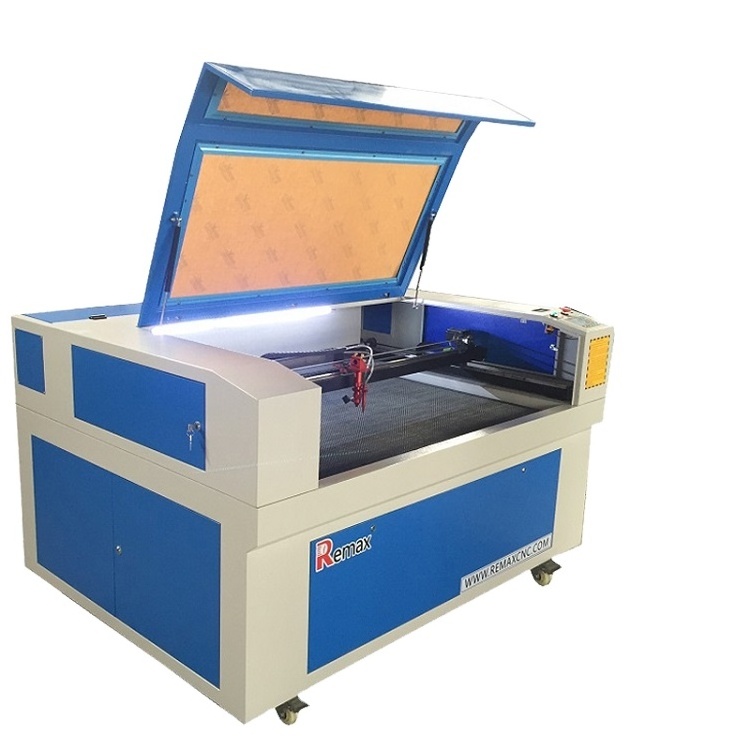

Remax-1390 laser engraving machine 80w reci CO2 laser tube best cnc laser cutting machine ,high quality your trust supplier acrylic laser cutting machines price good. portable laser glass cutting machine
Parameters:
|
Model |
1390eastern laser engraving machine |
|
Engraving and Cutting Area |
1300*900mm |
|
Tube type |
80w reci CO2 sealed glass tube (100w/150w optional) |
|
Laser wave |
10.6um |
|
Cooling |
Pure water |
|
Engraving Speed |
0-60,000mm/min |
|
Cutting Speed |
0-40,000mm/min |
|
Reposition Accuracy |
±0.01mm |
|
Minimum Character Size |
English:1mm ; Arabic numbers:1mm |
|
Resolution |
4,000 dpi |
|
File output mode |
2.0 USB interface |
|
Machine Power |
<2,000W |
|
Support Format and Software |
PLT,DST,DXF,DWG .CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 6.1 |
|
Working Environment Temperature |
0-45°C |
|
Drive system |
Leashine Stepper motor and drivers |
|
Control system |
Laser cut DSP offline control system |
|
Exhaust smoke system |
Big exhaust fan |
|
Working Voltage |
AC220V,50HZ/60HZ |
|
Warranty time |
1 year for machine (6 months for laser tube) |
|
Package |
standard plywood wooded case |
|
Packing size |
1950*1350*1200mm |
|
Delivery time
|
7-12 working days after received the deposit |
the configuration of this machine below
1. Leashine Stepper motor and drivers
2.
Control system:
RD3.0 Or Leetro 6525 can be choosed
3.80w reci CO2 laser tube (if need not reci pls tell me )
4. red dot position
5.USB output
6.water-protection
7.CW5000 chiller
8.exhaust fan 750w
9.air pump:450w
10.water pump: 2.8meter
11. 3piecs reflect mirror and 1 pcs focus len
if you need other configuration below,feel free to contact me
1.rotation axis
2.cw 5200 chiller
3.other power laser tube
4.up-down work table
5.3d scaner
Main machine parts picture
Applicable industry:
1.Engraving beautiful patterns and words such as wood,bamboo.ivory,bone,l eather,marble,shell.
2.Mainly used in large plastic character cutting,color plate engraving and cutti ng,sign engraving,
crystal engraving,trophy engraving,authorzation engraving etc.
3.Leather clothing processing industry:can engraving and cutting complex patterns on genuine synthetic leather,woolens,clothing ,furnishing,glove, handbag,model and Aircraft Model, etc.
4.Model industry:production of construction sand table model and Aiacraft Model,etc.ABC plate cutting,MLB cutting.
5.Packing industry:Engraving and printing rubber plate,plastic plate,duble board,die cut paper,etc.
6.Other industry:Engrave on marble,granite,glass,crytal and other dcorative materials,cut paper,card.
7.Product identification industry:secrity marking products,etc.
sample
FAQ:
1.Question: This is the first time I use this kind of machine, is it easy to operate?
Our Answer:
There are english manual or teaching video that show how to use machine.If there is
still have any question, please contact us by e-mail / skype/ phone /trademanager online service
at any time.
2.Question :If machine have any problem after I receive it, how can I do ?
Our Answer:
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3.Question : MOQ ?
Our Answer:
the minimum order is 1 set machine, if you order more one time, the price will be better.
4.Question: D How can I buy this machine from you? ( Very easy and flexible !)
Our Answer:
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
5.Question: good reasons why you should buy from us?
Our Answer:
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7.Total machine for one year guarantee
8 our engineer can go to your country to provide technical guidance
9 fast delivery, save your time.
How about your guarantee&warranty service?
gurantee&After-Sales Service
1.One year warranty under normal use and we supply maintenance for life for free.
2.24 hours technical support by phone,e-mail,SKYPE,MSN or Remote.
3.Free trainings to make sure you master the operation of laser cutting machine.
4.English operation manual,popular and easy to understand.
We are seeking worldwide distributors and agents,the prices is competive from original factory! Please feel free to contact us for more information now!Welcome to vist our factory in China mainland!
