Quick Details
-
Size:
-
L2200*W3600*H2960mm
-
Material:
-
Galvanized Steel
-
Warranty:
-
3 Year
-
Item:
-
Tunnel Toucess Washing Equipment Touchless Car Washer Mobile
-
Water Supply:
-
Pipeline DN25, Flow≥100L/min
-
Power Supply:
-
380V 50HZ
-
Air Supply:
-
Pressure 0.6-0.8Mpa
-
Wash Speed:
-
2.5-5min/car
-
Water consumption:
-
60-80L/car
-
Washing System:
-
Service 24hours
-
Service Life:
-
>15 years
-
Customization:
-
Accepted
-
Keyword:
-
tunnel car wash equipment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shinewash
-
Model Number:
-
S1
-
Size:
-
L2200*W3600*H2960mm
-
Material:
-
Galvanized Steel
-
Warranty:
-
3 Year
-
Item:
-
Tunnel Toucess Washing Equipment Touchless Car Washer Mobile
-
Water Supply:
-
Pipeline DN25, Flow≥100L/min
-
Power Supply:
-
380V 50HZ
-
Air Supply:
-
Pressure 0.6-0.8Mpa
-
Wash Speed:
-
2.5-5min/car
-
Water consumption:
-
60-80L/car
-
Washing System:
-
Service 24hours
-
Service Life:
-
>15 years
-
Customization:
-
Accepted
-
Keyword:
-
tunnel car wash equipment
PRODUCT OVERVIEW

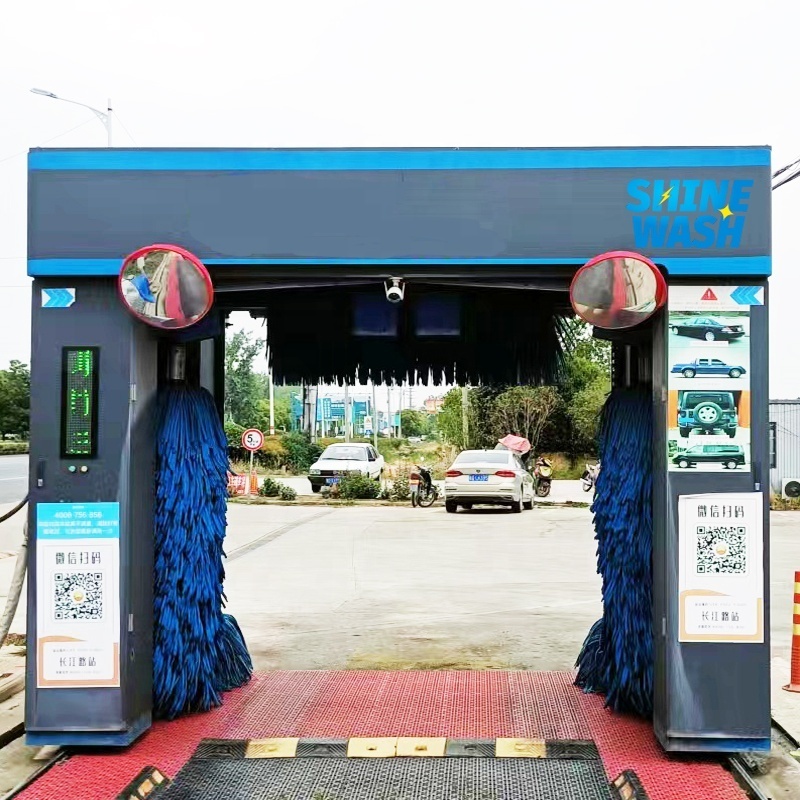

Tunnel Toucess Washing Equipment Touchless Car Washer Mobile Automatic Car Wash Machine
Feature:
* Adopts fully automatic PLC computer control system, which has faster operation speed, lower failure rate, and can be upgraded remotely.
* Adopts thickened hot dipped galvanized steel material, sturdy and durable.
* 5 brushes (1 vertical lift top brush + 2 small vertical brushes + 2 large vertical brushes).
* Strong water cleaning system and foam pump system.
* Multiple functions: water washing-----foam-----brushing-----wax water washing.
* With fault identification code, the fault is easy to identify and eliminate.
Whole Machine Frame
The main frame is made of high quality normalized steel plate with a thickness of more than 3mm. The plate is processed by laser cutting to accurately locate the position of each component, and then it is formed to plate by a bending machine. After sandblasting, galvanizing, and painting, it is assembled by mortise and tenon joint. The standard modular design of the whole machine is strong and never deformed; the anti-rust process is firstly phosphatized and galvanized, with external high-temperature car paint, the machine is absolutely guaranteed to have a long service life (15 years of service life).
Imported Quality EVA Brush
The car body and tire parts are respectively configured with soft and hard brushes with different flexibility, and can be completely wrapped cleaning, it can not only ensure that the paint is not damaged, but also thoroughly clean the hub and other parts that are easy to accumulate dirt. The service life can reach 400,000 times. If 100 cars are washed every day, 36500 times a year, the service life is more than 10 years.
New Intelligent Air drying Control System
Shinewash car washing machine adopts a 4-fan fixed air drying system, which can automatically adjust the air drying power according to the vehicle model, reducing power consumption and saving energy under the condition of ensuring the air drying rate of more than 95%. The main body of the fan adopts turbine type, with noise reduction of more than 60%.
Industry Leading Cleaning Effect
Shinewash car washing machine is equipped with the automatic spraying function of car washing liquid and water wax, and the brush can automatically change its posture with the car body to achieve 360 degree non dead angle cleaning. The brush is made of imported materials without damaging the car paint.
Program Control, 24-hour Business Without Labor
Support remote control, program scanning and startup, and can be completely unattended and open for 24 hours. At the same time, we provide customers with platform customization services, and develop special car washing control platforms and programs for customers.
Remote Control Intelligent Walking System
The background of Shinewash customer big data intelligently monitors the operation of all car washing equipment, automatically judges the equipment failure and is remotely handled by the background maintenance personnel, without manual on-site operation.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model
|
S1
|
|
2
|
Max. Car Size
|
L6*W2.1*H2.1m
|
|
3
|
Machine Size
|
L2.2*W3.6*H2.96m
|
|
4
|
Installation Size
|
L11*W3.7*H3.1m
|
|
5
|
Wash Speed
|
2.5-5min/car
|
|
6
|
Brush Quantity
|
5 brushes (1 top brush+2 vertical brush+2 skirt brush)
|
|
7
|
Drying Fan Quantity
|
4×5.5Kw fans
|
|
8
|
Water Consumption
|
60-80L/car
|
|
9
|
Water Supply
|
Pipeline DN25, Flow≥100L/min
|
|
10
|
Air Supply
|
Pressure 0.6-0.8Mpa/ Flow≥0.1m³/min
|
|
11
|
Warranty
|
3 Year
|
|
12
|
Service Life
|
＞15 years
|
5 Brush Rollover Car Wash Machine
Model: S1
Wash Speed: 2.5-5min/Car
PLC Control
3 Year Warranty
Service Life More Than 15 Years
High Quality Hot Galvanized Steel Material
Side elevation
Front elevation
Side elevation
Successful Project
Project in Thailand
Project in Malaysia
Project in Canada
