Quick Details
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
SINOTRUK Dump truck
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8065*2496*3490
-
Engine:
-
Sinotruk WD10.38
-
Horse power:
-
380hp
-
Transmission:
-
HW19710
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 3
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
SINOTRUK Dump truck
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8065*2496*3490
-
Engine:
-
Sinotruk WD10.38
-
Horse power:
-
380hp
-
Transmission:
-
HW19710
15 ton dumper truck (zz3257n3847a)
SINOTRUK HOWO A7 6x4 340HP Tipper/Dumper Truck
Sinotruk howo 6x4 dumper truck for sale
howo 6x4 dumper truck
|

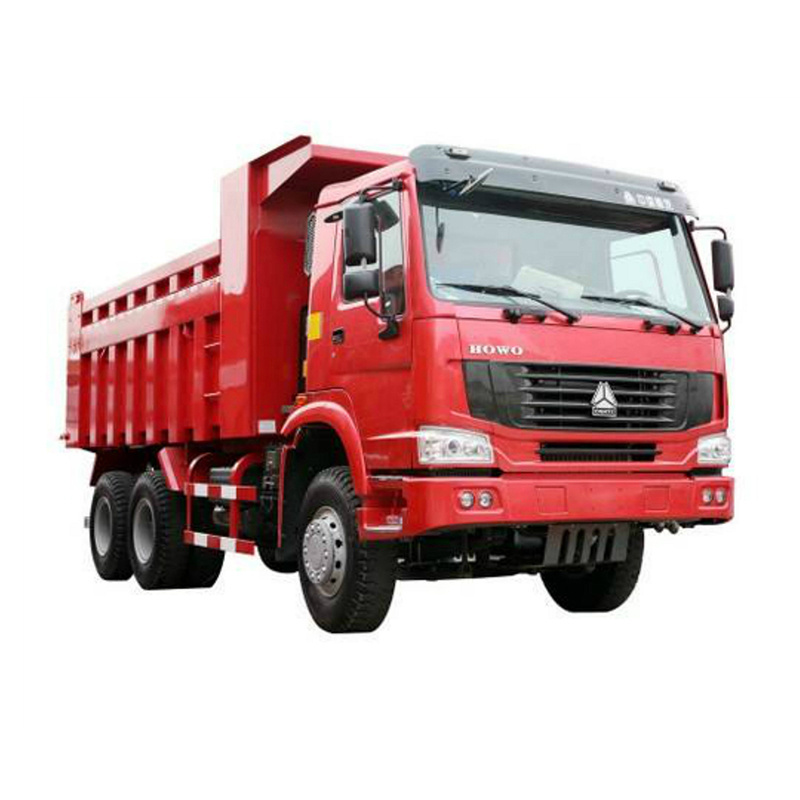

Howo- a7 6X4 dump Truck 380hp |
||
|
Traction type |
6X4 |
|
|
Driving type |
LHD |
|
|
Cabin
|
A7-W cabin, flat roof, air-conditioner |
|
|
Engine brand |
Sinotruk (Steyr) |
|
|
Engine model |
D10.38 |
|
|
Engine type
|
Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling,electronic control unit, four-valves, common rail diesel engine |
|
|
Rated power(kw) |
279 |
|
|
Horse power |
380 |
|
|
Displacement |
9.726liters |
|
|
Emission standard |
Euro III |
|
|
Max. output |
380HP@2000rpm |
|
|
Max torque |
1590NM@1600rpm |
|
|
Gear box |
Sinotruk HW19710 Manual type (10 forward speeds + 2 reverse speeds) |
|
|
Clutch |
430 Diaphragm type |
|
|
Steering |
ZF 9098 |
|
|
Front axle |
HF9 front axle series with plate brake system, 9 tons permissible load, Steering with double T-cross section beam |
|
|
Rear axle |
AC16 rear axles 2X16 ton permissible load Pressed axle housing, central double reduction with planetary wheel reduction and with differential locks between wheels and axles |
|
|
Tyre |
12.00R20 Radial tires Number of tires:10+1 spare |
|
|
Suspension |
Leaf spring |
|
|
Front spring:10 pieces |
||
|
Rear spring:12 pieces |
||
|
Specification |
||
|
Max. speed (km/h) |
78 |
|
|
Curb weight (kg) |
12,170 |
|
|
Rated payload(kg) |
25,000 |
|
|
Max.payload (kg) |
35,000 |
|
|
Wheel base (mm) |
3425+1350 |
|
|
Fuel tank capacity |
300L |
|
|
Overall dimension (mm) |
8065x2496x3490 |
|
|
VOLVO Upbody |
||
|
Inner size(mm) |
5200x2300x1500 |
|
|
Bucket capacity (cbm) |
18 cbm |
|
|
Thickness of body steel(mm) |
Floor 6, side 4 |
|
|
Tipping type |
Hydraulic front tipping system |
|
