Quick Details
-
Year:
-
2023
-
Weight (KG):
-
300
-
Model:
-
DO-ZW-2400
-
Dimension:
-
3200*800*1100mm
-
Power supply requirements:
-
380V/220V(50-60Hz)
-
Power of the whole machine:
-
2400w
-
Processing thickness:
-
Within 6mm
-
Processing size:
-
Within 2400mm
-
Heating mode:
-
Lower heating (quartz tube)
-
Bending angle:
-
0-175 degrees
-
Angle Adjustment:
-
Manual adjustable angle indicator
-
Heating thickness:
-
0-6mm
Quick Details
-
Place of Origin:
-
shandong,China
-
Marketing Type:
-
Hot Product 2024
-
Brand Name:
-
deou
-
Year:
-
2023
-
Weight (KG):
-
300
-
Model:
-
DO-ZW-2400
-
Dimension:
-
3200*800*1100mm
-
Power supply requirements:
-
380V/220V(50-60Hz)
-
Power of the whole machine:
-
2400w
-
Processing thickness:
-
Within 6mm
-
Processing size:
-
Within 2400mm
-
Heating mode:
-
Lower heating (quartz tube)
-
Bending angle:
-
0-175 degrees
-
Angle Adjustment:
-
Manual adjustable angle indicator
-
Heating thickness:
-
0-6mm
Products Description
Title goes here.

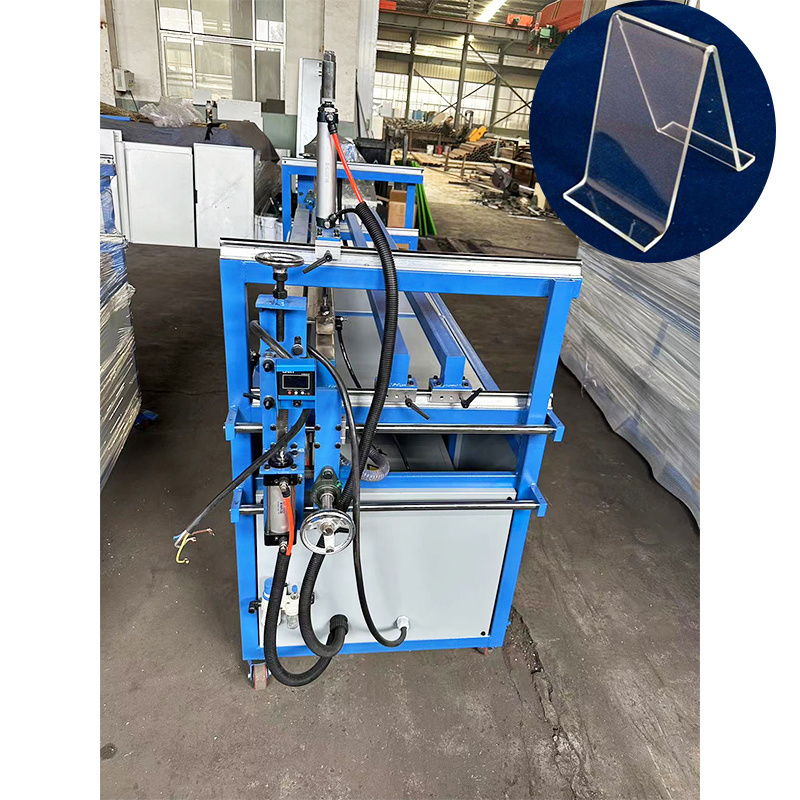

Acrylic automatic bending machine bending machine is widely used in plexiglass, acrylic, plastic plate, PC, PVC, PP and other materials on the hot bending process, is indispensable to the hot bending process equipment. This product adopts the overall heating method, the use of hot plate heating welding fusion principle. So that the workpiece is heated evenly, not easy to paste the board. Fast heating speed, accurate angle, high efficiency. Heating temperature can be arbitrarily adjusted according to the thickness of the plate and the workpiece of different materials.
Technical parameters
|
Name
|
Acrylic Bending Machine
|
|
Model
|
DO-ZW-2400
|
|
Dimension
|
3200*800*1100mm
|
|
Power supply requirements
|
380V/220V(50-60Hz)
|
|
Power of the whole machine
|
2400w
|
|
Processing thickness
|
Within 6mm
|
|
Processing size
|
Within 2400mm
|
|
Heating mode
|
Lower heating (quartz tube)
|
|
Double tube spacing
|
Heating space can be adjusted R angle size can be adjusted
|
|
Positioning configuration
|
Meet the smaller folding edge positioning
|
|
Control mode
|
Push-button control (fully automatic) Heating time and cooling time can be set.
|
|
Bending angle
|
0-175 degrees
|
|
Angle Adjustment
|
Manual adjustable angle indicator
|
|
Cooling mode
|
Air cooled and water cooled
|
|
Heating thickness
|
0-6mm
|
