Quick Details
-

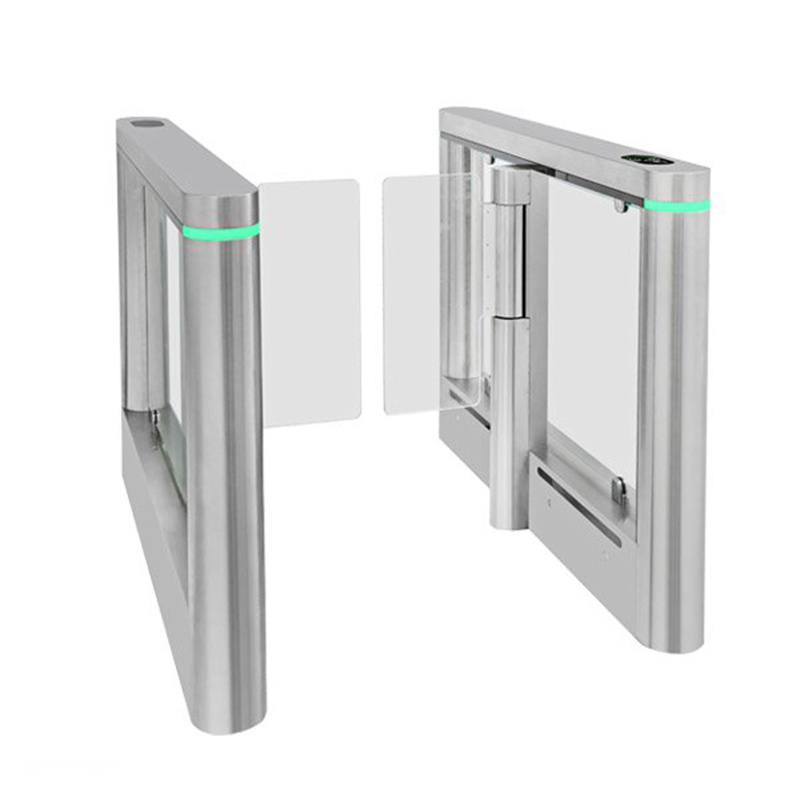

Product Name:
-
Flap Turnstile
-
Product Material::
-
304 Stainless Steel
-
Function:
-
Intelligent access control system
-
Working environment:
-
Indoor Outdoor
-
Communication:
-
Dry Cintact
-
Supply voltage:
-
AC220±10% V,50HZ
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beward
-
Model Number:
-
B2002FR-T
-
Product Name:
-
Flap Turnstile
-
Product Material::
-
304 Stainless Steel
-
Function:
-
Intelligent access control system
-
Working environment:
-
Indoor Outdoor
-
Communication:
-
Dry Cintact
-
Supply voltage:
-
AC220±10% V,50HZ
Support MQTT/SDK/HTTP,It's easy to integrate to existing security/access control system
IE Web page base,you could set the parameter by login device:
Technical specification:
|
Model
|
B2002FR-7I-CM-L06
|
|
|
||
|
Processor
|
Hi3516D CPU+1G memory+16G flash
|
|
|
||
|
Operating system
|
Linux Operating system
|
|
|
||
|
Storage
|
Support TF card storage
|
|
|
||
|
Sensor
|
1/2.8" Progressive Scan CMOS
|
|
|
||
|
Lens
|
6mm
|
|
|
||
|
Recognition height
|
1.2~2.2 meters,Angle can be adjusted
|
|
|
||
|
Recognition distance
|
0.5~5 meters,depends on lens
|
|
|
||
|
Face angle
|
30 degrees left and right, 30 degrees up and down
|
|
|
||
|
Recognition time
|
Less than 0.8 second
|
|
|
||
|
Switch inputs
|
1ch switch input
|
|
|
||
|
Power
|
DV12V/2A
|
|
|
||
|
Network Interface
|
1x RJ45 10M / 100M Adaptive Ethernet port
|
|
|
||
|
Wiegand Interface
|
1ch Wiegand interface input/output
|
|
|
||
|
USB interface
|
1ch USB interface
|
|
|
||
|
Camera
|
Two cameras:1x B/W camera;1x color camera
|
|
|
||
|
Effective pixels
|
2MP,1920*1080
|
|
|
||
|
Resolution
|
Main stream:50Hz: 25fps (1920×1080,1280×720);60Hz: 30fps (1920×1080,1280×720)
Sub stream:720*576,1-25(30)fps/640*480,1-25(30)fps;320*240,1-25(30)fps
|
|
|
||
|
SNR
|
≥50db(AGC OFF)
|
|
|
||
|
WDR
|
≥100db
|
|
|
||
|
Weight
|
1.5 kg(without base plate)
|
|
|
||
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
MOQ:
1.Sample t order, have no limit for the quantity
2.OEM MOQ is 50pcs/model
Payment Terms:
T/T,Western Union,PayPal
Delivery Time:
1.Sample order about 2-7 working days
2. General order about 15-30 working days
3. Bulk order can about 25-50 working days
Shipping:
FEDEX,DHL,TNT,UPS,EMS,Aramex,by air,by sea
OEM & ODM Service:
OEM and ODM service are acceptable;Free provided SDK&API
Warranty Policy:
We provide 3 years warranty after the shipment date
Technical Support:
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email or chat with us by skype or whatsapp,thank you in advance.
