Quick Details
-

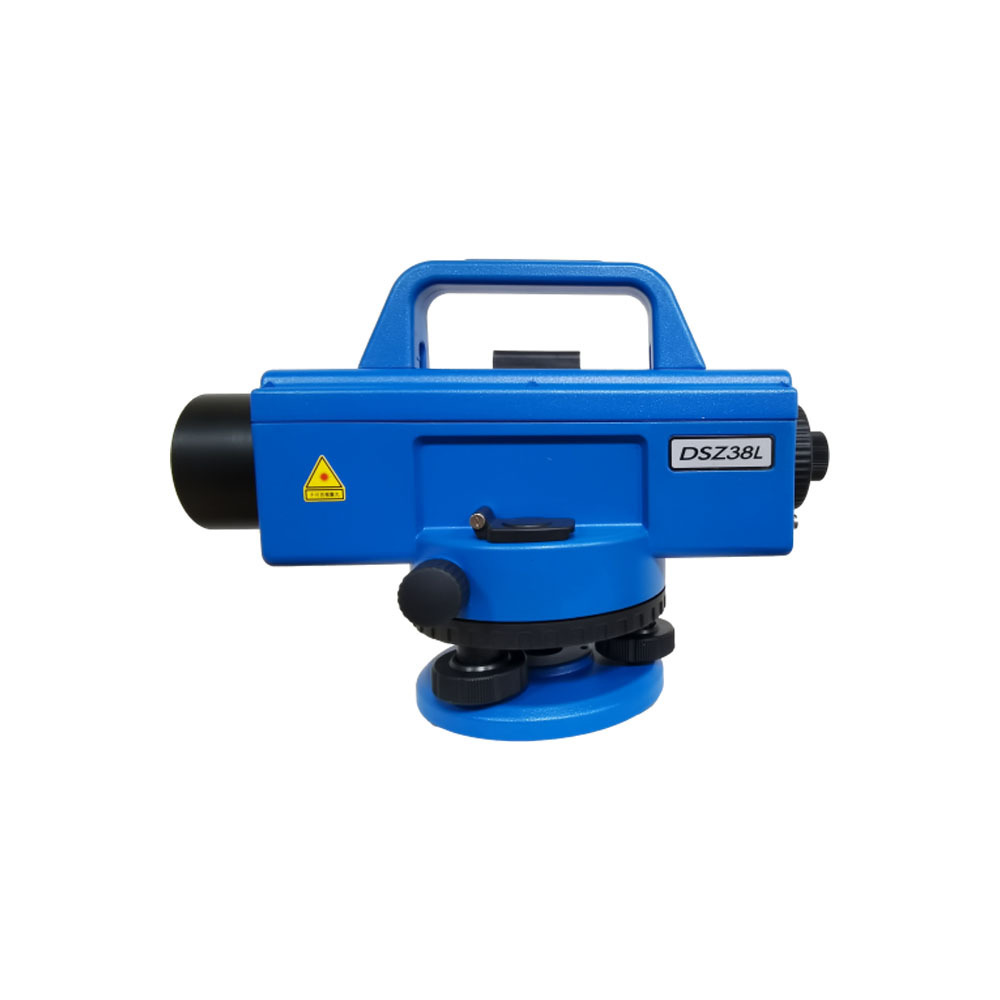

Model Number:
-
DSZ38L
-
Telescope image:
-
Erect
-
Magnification:
-
38X
-
Clear Objective Aperture:
-
45mm
-
Shortest Focusing Distance:
-
0.65m
-
Stadia Multiplying Constant:
-
100
-
Stadia Additive Constant:
-
0
-
Compensator type:
-
X-shaped wire suspension magnetic damping compensator
-
INGRESS PROTECTION:
-
IP66
-
Handling:
-
Yes
-
MOQ:
-
1 PC
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
DSZ38L
-
Telescope image:
-
Erect
-
Magnification:
-
38X
-
Clear Objective Aperture:
-
45mm
-
Shortest Focusing Distance:
-
0.65m
-
Stadia Multiplying Constant:
-
100
-
Stadia Additive Constant:
-
0
-
Compensator type:
-
X-shaped wire suspension magnetic damping compensator
-
INGRESS PROTECTION:
-
IP66
-
Handling:
-
Yes
-
MOQ:
-
1 PC
Product Description
|
Model NO.
|
DSZ38L
|
|
Applicable
|
surveying instrument
|
|
Standard Deviation for 1km Double-run levelling
|
0.7mm.
|
|
Telescope image
|
Erect.
|
|
Magnification
|
38X
|
|
Clear Objective Aperture
|
45mm
|
|
Field of View
|
1°20′
|
|
Shortest Focusing Distance
|
0.65m
|
|
Stadia Multiplying Constant
|
100
|
|
Stadia Additive Constant
|
0
|
|
Sensitivity of Circular Level
|
8′/2mm
|
|
Graduation lnterval of Circle
|
1°or1gon
|
|
Compensator type
|
X-shaped wire suspension magnetic damping compensator
|
|
Working Range
|
≥±15′
|
|
Setting Accuracy
|
±0.3″
|
|
INGRESS PROTECTION
|
IP66
|
|
Dimensions
|
260X130X190mm
|
|
Connecting size to tripod
|
M16or5/8″
|
|
Handling
|
Yes
|
|
The wavelength of the laser
|
635nm
|
|
Effective range
|
200m(ninght)
|
|
Spot size
|
5mm/100m
|
|
Spot center and the deviation of the visual axis
|
≤5″
|
