Quick Details
-
Brand Name:
-
WisdomShow
-
Model Number:
-
S9200
-
Function:
-
counting machine
-
Level:
-
auto Machine
-
Color:
-
Black and white
-
Advantage:
-
High Effciency
-
Keyword:
-
Technical Service
-
After Service:
-
3 years
-
Model:
-
S-9200
-
Material:
-
Stainess Steel
-
Type:
-
Automatic Control
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WisdomShow
-
Model Number:
-
S9200
-
Function:
-
counting machine
-
Level:
-
auto Machine
-
Color:
-
Black and white
-
Advantage:
-
High Effciency
-
Keyword:
-
Technical Service
-
After Service:
-
3 years
-
Model:
-
S-9200
-
Material:
-
Stainess Steel
-
Type:
-
Automatic Control
Product Description

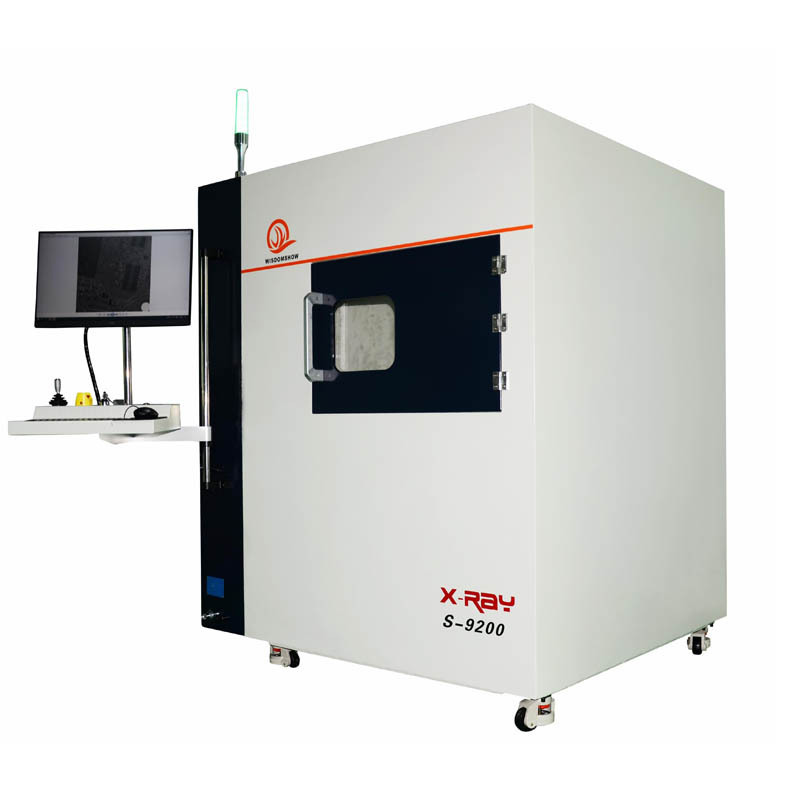

S-9200 is a large-scale micro-focus
X-ray inspection equipment
, The combination of imported HAMAMATSU micro-focus X-ray tube and high-definition flat-panel detector 2.5 D technology CNC programming automatic measurement, high-performance, cost-effective closed-tube X-ray machine , Suitable for FPC,SMT detection,LED detection, battery electronic components, electronic connectors, semiconductor molds, automobile parts detection;
Convenient operation.
Convenient operation
Product features
1.the effective detection range is larger, improve the product magnification and detection efficiency;
2.easy to identify the defect of the product side tilt surface, and realize the detection without dead Angle;
3.adopt imported Hamamatsu X-ray source;
4.can easily distinguish semiconductor packaging gold wire bending, gold wire fracture; 5, suitable for mass detection, improve detection efficiency, automatic determination NG products;
6.Large loading table, can be placed large industrial control board, super long LED lamp strip, suitable for various fields of electronic products;
7.the operation is very convenient, can quickly find the defects goods, improve the detection efficiency;
Radiation safety
wisdomshow technology brand X-ray inspection equipment, After a number of third-party inspections, the radiation measurement is lower than the national standard, and the national radiation safety license has been obtained. At the same time, it has obtained the exemption management of our company's x-ray inspection equipment by the Guangdong Provincial Environmental Protection Department. At the customer site at home and abroad, All comply with local national standards after customer inspection.
Certifications
Speed and accuracy
1Semiconductor package
2.Electronic connector module
3.Die casting
4.Automotive
5.Battary
6.LED
Product Paramenters
|
X-ray source
|
tube type
|
sealed microfoucus x-ray source
|
|
|
|
tube voltage
|
130KV
|
|
|
|
tube current
|
10-300μA
|
|
|
|
tube power
|
39w
|
|
|
|
foucs size
|
3μm
|
|
|
|
geometric magnification
|
geometric 300 times system 3000 times
|
|
|
|
cooling method of bare pipe
|
Air-cooled
|
|
|
radition safety
|
<1μSV/H
|
|
|
|
Flat panel detector
|
etector category
|
|
|
|
|
Pixel matrix
|
1536*1536 pixels
|
|
|
|
image frame rate(1*1)
|
20fps
|
|
|
|
pixel pitch
|
85μm
|
|
|
computer
|
DELL
|
windowers10
|
|
|
Load-bearing platfoem
|
10KG
|
|
|
|
Detectable size
|
900*700mm
|
|
|
|
Equipment Specifications
|
Total power
|
2500w
|
|
|
|
Equipment size
|
1650*1500*1800mm
|
|
|
|
Equipment weight
|
2000KG
|
|
|
|
Supply votage
|
110-220V 50-60HZ
|
|
Packing&Shipping
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
