Quick Details
-
Model Number:
-
TO-003~TO-076
-
Color:
-
Black, red, yellow, green, blue, purple, grey
-
Certification:
-
ROHS. CE ,REACH,Halogen free
-
Flame resistance:
-
VW-1, 94-Vo
-
Temperature:
-
-50°C~+150°C
-
Specifications:
-
3mm ~76mm
-
Type::
-
Insulation Sleeving
-
Usage:
-
Cable protection cover
Quick Details
-
Material:
-
PET/Polyester
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TONY
-
Model Number:
-
TO-003~TO-076
-
Color:
-
Black, red, yellow, green, blue, purple, grey
-
Certification:
-
ROHS. CE ,REACH,Halogen free
-
Flame resistance:
-
VW-1, 94-Vo
-
Temperature:
-
-50°C~+150°C
-
Specifications:
-
3mm ~76mm
-
Type::
-
Insulation Sleeving
-
Usage:
-
Cable protection cover

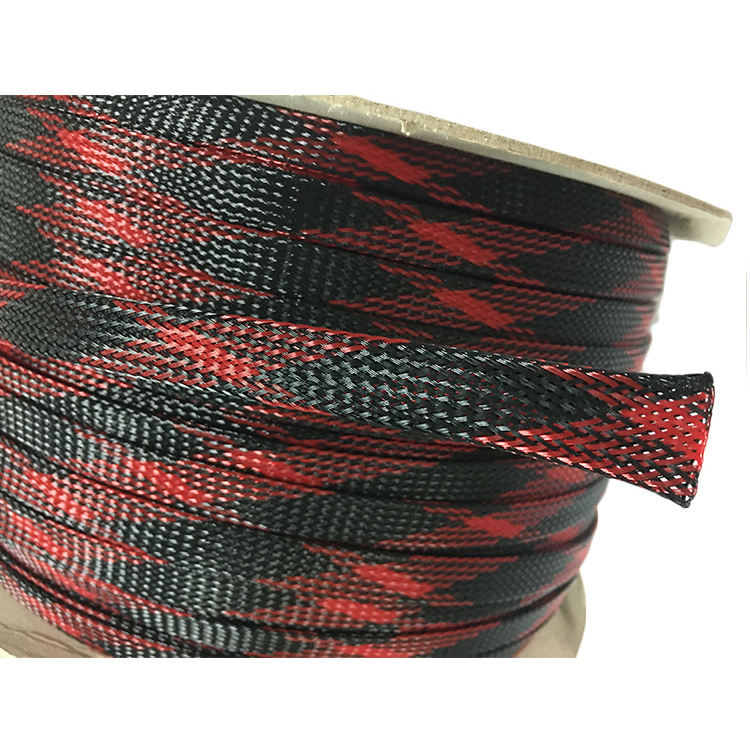

Expandable Braided PET/Nylon Cable Protection Sleeve
Expandable PET Braided Cable Wire Sleeving is weaved precisely with environmental PET material which has strong wear-resistant, extendibility
and retarding inflame.
PET Monofilament Yarns, Braided Construction & Expandable
For Wire and Cable Bundle and Protect, Flame-retardant.
1.Excellent softness,easy bending,can be loose to close,easy to operation, The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
2.good scalability,elasticity and abrasion resistance, Expandable, Suitable for constructing and protecting cable harnesses or tidying cable looms.
3 . It offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables.
4.The special open structure allows to be installed after other components, for example copper terminals and
connectors.
5. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.
6. It offers durable abrasion resistance in a wide range of industrial applications.
7. Totally expanded the sleeving can reach at least one point five times than the initial dimension. Sleeve expands to allow the cables to pass through and then automatically shrinks back.
8. Multiple sizes and lengths available - identify via the sizing guide below and then select your required sizes and length via the drop down boxes above.
Parameters :
|
Datasheet |
||||||
|
Nominal size W |
Part No. |
Expanded range |
Packing L |
|||
|
Inch |
mm |
|
Min.I |
Max.O |
standard spool |
|
|
1/8" |
3 |
TO-003 |
1 |
6 |
1000 m |
|
|
1/5" |
5 |
TO-005 |
2 |
8 |
500m |
|
|
1/4" |
6 |
TO-006 |
3 |
9 |
500 m |
|
|
5/16" |
8 |
TO-008 |
5 |
16 |
350 m |
|
|
3/8" |
10 |
TO-010 |
7 |
19 |
350 m |
|
|
1/2" |
12 |
TO-012 |
8 |
24 |
300 m |
|
|
5/8" |
15 |
TO-016 |
10 |
27 |
250 m |
|
|
3/4" |
20 |
TO-019 |
14 |
30 |
200 m |
|
|
1" |
25 |
TO-025 |
18 |
35 |
200 m |
|
|
1 1/4" |
30 |
TO-032 |
20 |
50 |
150 m |
|
|
1 1/2" |
40 |
TO-038 |
30 |
60 |
100 m |
|
|
1 3/4" |
45 |
TO-045 |
35 |
75 |
100 m |
|
|
2" |
50 |
TO-050 |
40 |
80 |
100 m |
|
|
2 1/2" |
64 |
TO-064 |
45 |
105 |
100 m |
|
|
3" |
76 |
TO-076 |
64 |
120 |
100 m |
|
|
|
|
|
|
|
Unit:mm |
|
Applications :
|
PET
Expandable
Braided Cable Sleeving
It is widely used as protective cable or wire for products such as computer, stereo, TV, air condition, washing machine, refrigerator, vehicle, aviation, etc. And it is also widely used in optic fiber, cable, motorcycle, automobile, plane, etc. |
