Using latest plane cam struture,weaving the cylinder or flat cloth with PP and HDPE flat yarns.
Latest plane cam structure -adopt idler wheel from shuttle, non-lubrication
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NANYI
-
Model Number:
-
NY-SBY850/6
-
Voltage:
-
3KW
-
Dimension(L*W*H):
-
9100*2300*2730
-
Weight:
-
2100 KG
-
After Warranty Service:
-
Video technical support
Quick Details
-
Machine Type:
-
Cutting Machine
-
Bag Type:
-
Cement Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NANYI
-
Model Number:
-
NY-SBY850/6
-
Voltage:
-
3KW
-
Dimension(L*W*H):
-
9100*2300*2730
-
Weight:
-
2100 KG
-
After Warranty Service:
-
Video technical support

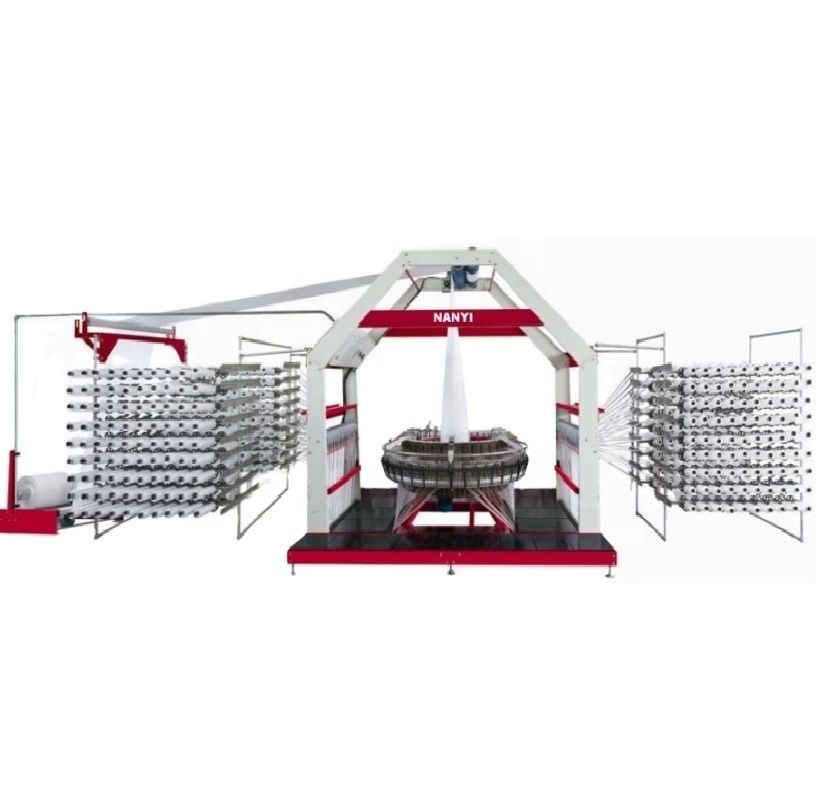

High-speed automatic industrial six-shuttle weaving circular loom for bags price
Products Description
This serious of six shuttle circular loom is latest plane cam struture,weaving the cylinder or flat cloth with PP and HDPE flat yarns.
• Latest plane cam structure -adopt idler wheel from shuttle, non-lubrication.
• The brown belt made of high-strength and high-toughness material, with brown silk, runs smoothly and has low noise.
• Complete weft and weft automatic detection system.
• Man-machine interface centralized control, easy to operate.
• Latest plane cam structure -adopt idler wheel from shuttle, non-lubrication.
• The brown belt made of high-strength and high-toughness material, with brown silk, runs smoothly and has low noise.
• Complete weft and weft automatic detection system.
• Man-machine interface centralized control, easy to operate.
Model No.
|
Weaving folding width (mm)
|
Max.number warp(pcs)
|
revolutions of main motor(r/min)
|
Production capacity(m/min)
|
Power of main motor (kw)
|
Installing dimensions(L*W*H)
(mm) |
Weight (kg)
|
NY-SBY-850/6
|
300-850
|
720
|
120-180
|
1.8-2.7
|
3
|
9100x2300x2730
|
2100
|
NY-SBY-1500/6
|
950-1500
|
840/1680
|
90-120
|
1.3-1.8
|
4/5.5
|
12000x2800x3200
|
3800
|
NY-SBY-1700/6
|
1100-1700
|
960/1920
|
70-110
|
1.4-1.7
|
4/4.5
|
12000x3000x3600
|
4200
|
Details Images
Machine parts
Brand: Nanyi
Brand: Nanyi
With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.
Machine parts
Brand: Nanyi
Brand: Nanyi
PLC centralized control is adopted for electric controlling, frequnency speed regulation is adopted as well, which is convenient
and stable.
and stable.
