Quick Details
-
Brand Name:
-
QIANDAO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1900x1800x2150
-
Weight (KG):
-
2450
-
Power (kW):
-
8.5
-
Grinding diameter of OD:
-
250 mm
-
The longest distance between two peaks:
-
500mm
-
Max workpiece weight:
-
80 kg
-
Grinding wheel size:
-
510x50x203.2mm
Quick Details
-
Wheel Size(mm):
-
405
-
Year:
-
2023
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
QIANDAO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1900x1800x2150
-
Weight (KG):
-
2450
-
Power (kW):
-
8.5
-
Grinding diameter of OD:
-
250 mm
-
The longest distance between two peaks:
-
500mm
-
Max workpiece weight:
-
80 kg
-
Grinding wheel size:
-
510x50x203.2mm
Product Description

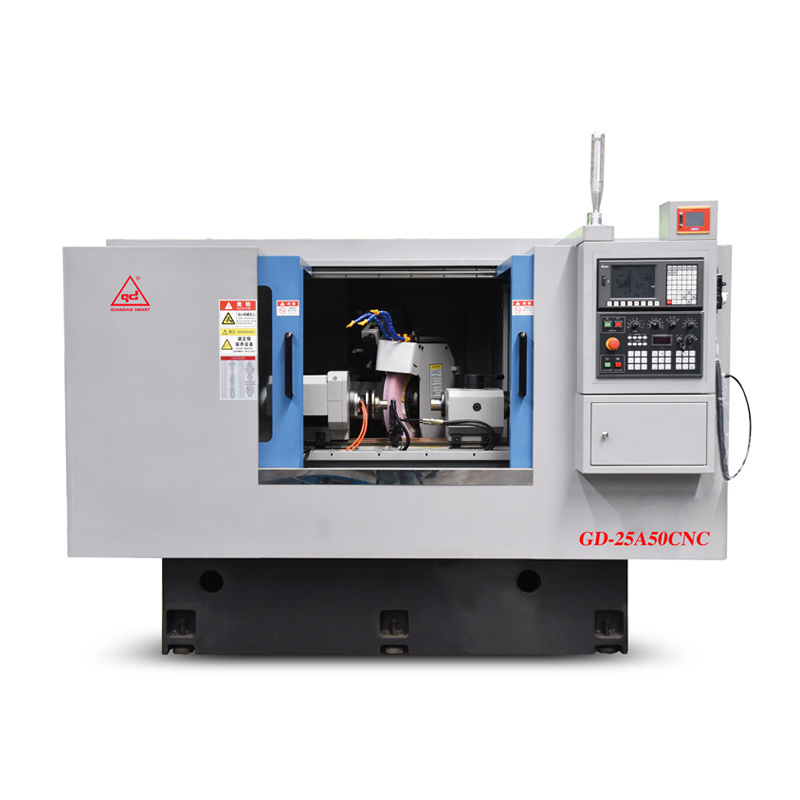

GD-25A50CNC Precision Cylindrical Grinder
Features：
GD-25A50CNC Inclined Type Precision Cylindrical Grinding Machine
The grinding wheel spindle has the characteristics of high rigidity, high precision, long life, low vibration and low friction.
With the automatic centering function, the main shaft of the grinding wheel will not be deflected due to the influence of the belt tension.
The spindle has the functions of centering and synchronous motion, which can be quickly switched between top processing and chuck clamping processing.
Specification
|
Model
|
|
GD-25A50CNC
|
|
The maximum rotation diameter of the workbench
|
mm
|
250
|
|
The longest distance between two peaks
|
mm
|
500
|
|
Maximum load between two centers
|
kg
|
80
|
|
Grinding wheel size (diameter x thickness x hole diameter)
|
mm
|
510x50x203.2
|
|
line speed
|
m/s
|
35
|
|
Grinding wheel head feed angle
|
°
|
60
|
|
X axis feed speed
|
m/min
|
6
|
|
Grinding wheel head feed stroke
|
mm
|
225
|
|
X-axis minimum setting unit
|
mm
|
0.001
|
|
Headstock spindle speed
|
rpm
|
0-600
|
|
Headstock spindle
|
|
Centering (optional with simultaneous movement)
|
|
Headstock thimble
|
|
MT5
|
|
Tailstock automatic retractable distance
|
mm
|
40mm
|
|
Tailstock thimble
|
|
MT4
|
|
Z axis rapid movement speed
|
mm
|
8
|
|
Z axis minimum setting unit
|
mm
|
0.001
|
|
Maximum moving stroke of worktable
|
mm
|
500
|
|
Table rotation angle
|
°
|
+9/-3
|
|
Grinding wheel spindle motor
|
kw
|
5.5
|
|
X axis feed motor
|
kw
|
1.5
|
|
Z axis feed motor
|
kw
|
1.5
|
|
Headstock spindle motor
|
kw
|
1.1
|
|
cooling water motor
|
kw
|
0.25
|
|
tailstock oil pump motor
|
HP
|
1
|
|
controller
|
|
FANUC/Delta
|
|
Mechanical weight
|
kg
|
3800
|
|
Package weight
|
kg
|
4100
|
|
Package Size
|
mm
|
2700x1800x2150
|
Standard accessories
|
Grinding software
|
1
|
|
FANUC Control system
|
1
|
|
Grinding wheel spindle
|
1
|
|
Headstock spindle
|
1
|
|
Full cover sheet metal
|
1
|
|
Wheel flange
|
1
|
|
Grinding wheel (510*50*203mm)
|
1 piece
|
|
Headstock and tailstock point
|
1
|
|
Tool box
|
1
|
Packing & Delivery
Wooden case packing
