Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
3000 - 5000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
860*710*1500mm
-
Weight (KG):
-
250 KG
-
Product name:
-
Hemp Cumin Pulverizer Nutmeg Pepper Cinnamon Grinder
-
Input size:
-
<3cm
-
Output size:
-
20-100 mesh
-
Capacity:
-
100kg/h
-
Spindle speed:
-
3800 rpm
-
Spare parts:
-
mesh screen
-
Certification:
-
ISO CE
-
Package:
-
Plywood Case
Quick Details
-
Output (kg/h):
-
50 - 150 kg/h
-
Feeding Size (mm):
-
10 - 20 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
3000 - 5000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
860*710*1500mm
-
Weight (KG):
-
250 KG
-
Product name:
-
Hemp Cumin Pulverizer Nutmeg Pepper Cinnamon Grinder
-
Input size:
-
<3cm
-
Output size:
-
20-100 mesh
-
Capacity:
-
100kg/h
-
Spindle speed:
-
3800 rpm
-
Spare parts:
-
mesh screen
-
Certification:
-
ISO CE
-
Package:
-
Plywood Case
Product Overview

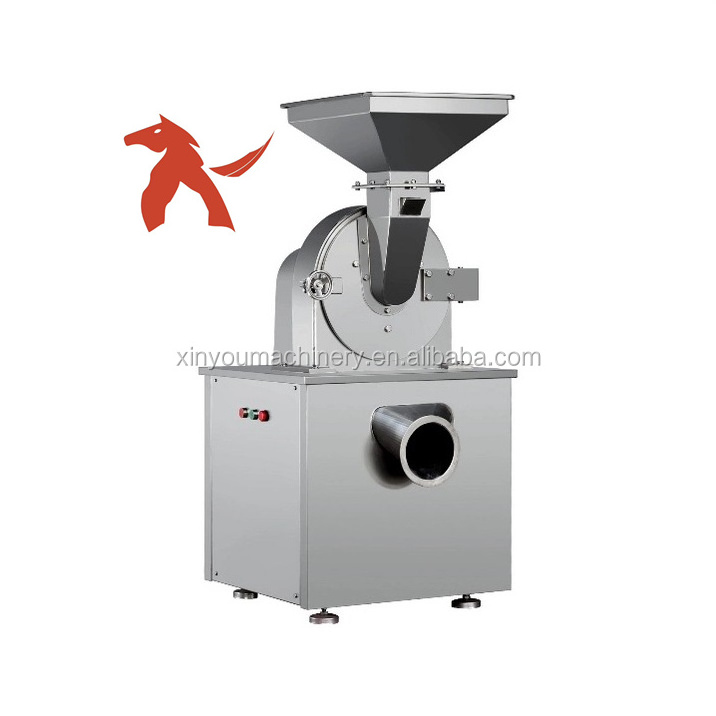

WF series universal grinding machine
Product Application
This pin mill is widely used in Food, chemical and other industries.
There are different models for different requirement.
It has mesh screen inside of the grinding chamber, you can get the powder size by changing the screen size.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 20-120 mesh.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
This pin mill is widely used in Food, chemical and other industries.
There are different models for different requirement.
It has mesh screen inside of the grinding chamber, you can get the powder size by changing the screen size.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 20-120 mesh.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
|
Model
|
Input size
|
Output size
(mesh)
|
Capacity
(kg/h)
|
Grinding moor
|
Speed
|
Overall dimension
(mm)
|
Weight
|
|
WF-20B
|
<10mm
|
20-120
|
20-50
|
4kw
|
4500
|
500*650*1200
|
185kg
|
|
WF-30B
|
<10mm
|
20-120
|
50-150
|
5.5kw
|
3800
|
600*750*1350
|
210kg
|
|
WF-40B
|
<10mm
|
20-120
|
100-300
|
11kw
|
3400
|
700*850*1550
|
350kg
|
|
WF-60B
|
<10mm
|
20-120
|
300-500
|
22kw
|
2900
|
800*870*1780
|
500kg
|
|
WF-80B
|
<10mm
|
20-120
|
500-800
|
37kw
|
2000
|
900*900*1910
|
1000kg
|
|
WF-100B
|
<10mm
|
20-120
|
800-1000
|
55kw
|
1500
|
1400*1100*2800
|
2000kg
|
