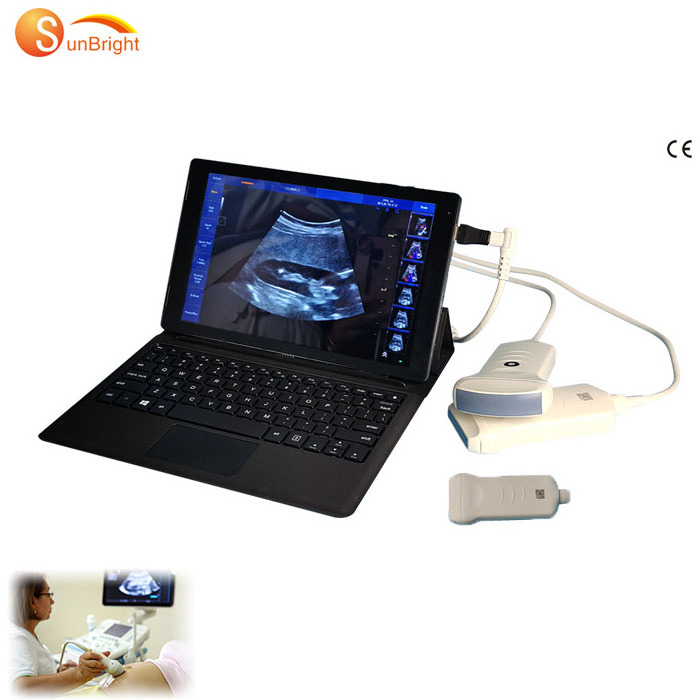

Android USB linear high frequency ultrasound probe medical probe price for MSK

Size of host：125×50*20mm，weight 125-160g，easy to carry around.

In china ,it is the first handheld color Doppler ultrasound system which supports phased array probe.

Adopts USB3.0 high-speed interface to data transmission, which cause the image has no stutter, no frame loss, and smooth display.

In China, it is the first handheld color Doppler ultrasound system that can obtain real-time RF data, as its data transmission rate is up to 3.2Gbps.

Support puncture enhancement and contrast agent imaging functions to meet the requirements of more specialized clinical ultrasound applications.

1)Imaging mode： B, B/B, 4B, B/M, M Color flow (CF), Power Doppler (PDI), Directional Power Doppler (DPDI) Tissue Doppler（TDI） Pulse Doppler (PW) Continuous Doppler (CW) B+CF color double-frame real-time imaging Color M type Anatomical M type B+PW (Real Duplex)，B+CF/PDI/DPDI+PW (Real Triplex) High pulse repetition frequency (HPRF) Tissue Harmonic Imaging (THI), Pulse Inverse Harmonic Imaging (iTHI) Tissue Specific Imaging (TSI) Convex array expansion imaging Linear array deflection/ Trapezoidal imaging Space composite imaging Wide-view imaging Contrast agent imaging 3D imaging

2)Scanning mode： Electronic linear array, Electronic convex array, Electronic micro convex Electronic phased array Scanning depth：2-30cm 3)Color Doppler blood flow; PRF repetition frequency range：0.6-20 kHz Wall filter range：≥ 5 Groups Linear array probe angle deflection：±5°，±10°，±15° Real-time spatial filter：≥ 4 Groups CFM Color ：≥ 10 kinds PDI Color ：≥ 10 kinds Color threshold control CFM Baseline control Adjustable Doppler frequency：≥ 4 Groups Color frame related Color transparency control (TCM)

3)Pulse Doppler： PRF Repetition frequency range：0.6-20 kHz Wall filter range：≥ 10 Groups Linear array probe angle deflection：±5°，±10°，±15° Real-time tracking spectrum and real-time calculation of spectrum parameters Stereo output Spectrum pseudo color Adjustable Doppler frequency：≥ 4 Groups

4)Image Processing： High line density scanning (adjustable) Dynamic Range ：≥120 dB Automatic gain control M scanning speed adjustable PW scanning speed adjustable Adjustable sound power Controllable frame related Gamma correction Adjustable scanning range Up&down / left & right / black & white flip Image enhancement, edge enhancement Puncture enhancement Noise suppression Spot suppression

5)Image and video storage format：

AVI, JPG, BMP, PNG, DCM (DICOM)etc.

6)Routine measurement and calculation:

distance, depth, area, circumference, volume, angle, stenosis ratio, ratio, speed, gradient (PG), acceleration, resistance index (RI), heart rate, velocity time integral (VTI), etc.

7)Measurement and calculation software package:

obstetrics, gynecology, abdomen, urinary, endocrine, blood vessel, heart, etc.

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
