Widely used in area of Faucet Flush Toilet and Automatic Home Garden Watering , Outdoor Garden Automatic Irrigation Controller, Single Outlets Tap
Timer,2or4 Zone Outdoor Irrigation Sprinkler, Lawn Garden Watering , Pool Filling , Smart Water Meter, Smart Feeder , Drip
Irrigation System , Green Plant Spraying, Automatic Agricultural, Municipal Garden Irrigation System,garden spray landscaping ,
farmland, and other fields of daily irrigation control,intelligent irrigation drip irrigation , to reduce human costs, improve the
efficiency of automation, saving electricity wand water.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Water Solenoid Valve
-
Body material:
-
brass
-
Certificate:
-
ROHS
-
Size:
-
G1/2*1/2
-
Rated Voltage:
-
3.6VDC
-
Working pressure:
-
0.02-0.8MPa
-
Applicable medium:
-
Water System
-
Medium Temperature:
-
1-75
-
Resistance (Ω):
-
13-22Ω(±0.5Ω)
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
MFZ0101M-180-02
-
Product name:
-
Water Solenoid Valve
-
Body material:
-
brass
-
Certificate:
-
ROHS
-
Size:
-
G1/2*1/2
-
Rated Voltage:
-
3.6VDC
-
Working pressure:
-
0.02-0.8MPa
-
Applicable medium:
-
Water System
-
Medium Temperature:
-
1-75
-
Resistance (Ω):
-
13-22Ω(±0.5Ω)
|
Product Name
|

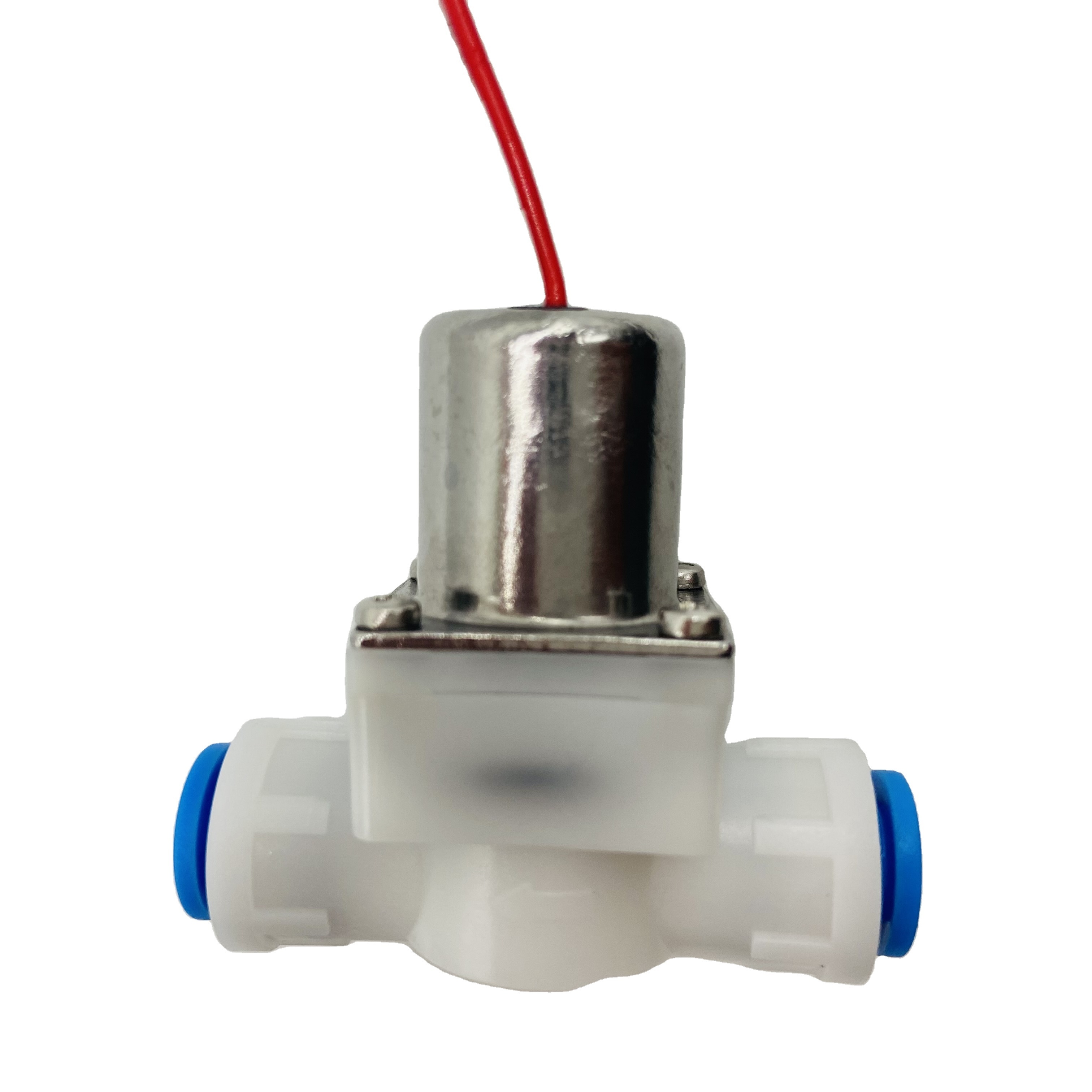

Intelligent Faucet Water solenoid valves
|
|
Type
|
Custom Available
|
|
Certification
|
CE ULROHSREACH SGS
|
|
Temperature of Medium
|
1-75℃
|
|
Medium
|
Water/Air
|
|
Structure
|
Diaphragm
|
|
Installation Method
|
G1/2thread or 1/4 quick connect
|
|
Static Pressure
|
0.05-0.8Mpa
|
|
Voltage
|
DC 2.5V-28V
|
|
Switch Type
|
DC pulse type(positive pulse on/negative pulse off)default red to +pole
|
|
Response Time
|
ON≥0.2S, OFF≥0.5S
|
|
Main Usage
|
Faucet Flush
|
|
Material
|
Cuprum/Stainless iron +NBR
|
|
Surface Technology
|
Electroplate
|
Product Application
Main Applications of solenoid valves
Product Test
|
Strength Test
|
Water pressure resistance 1.2Mpa/5min
|
Work environment temperature
|
1-60℃
|
|
Electrical Strength
|
The conductive part,mounting hole and non-conductive metal can withstand 500V/50Hz,leakage current 1mA,withstand voltage for 1min
without breakdown |
Working environment humidity
|
35%-95%RH(no condensation)
|
|
Insulation Resistance
|
Use a 500V megger to test the resistance between the conductive part and the non-conductive metal>=20MΩ
|
Storage Temperature
|
-5-80℃(no icing state)
|
|
High Water Pressure Leakage
|
1.0MPa,No leakage
|
Storage Humidity
|
25%-95%(no condensation
|
|
Low Water Pressure Leakage
|
0.02MPa,Leakage<<=0.1mL/min
|
Installation Direction
|
Vertical or horizontal direction , inclination<=15degree
|
|
Service Life Test
|
>=800000 times
|
Allowable Pressure limit(water pressure)
|
<=1.0Mpa
|
