Quick Details
-
Brand Name:
-
Wolon
-
Use:
-
FTTB
-
Warranty Time:
-
1 Year
-
Receiver Type:
-
Indoor CATV Optical Node
-
Application:
-
FTTX, HFC ,CATV
-
Color:
-
silver
-
Power Supply:
-
12V
-
Responsivity:
-
>=0.9A/W
-
Input Optical Power:
-
-10~0 dBm
-
Product name:
-
Optical Receiver
-
Material:
-
Metal
-
Warranty:
-
1 Yeras
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
WL-ORB 1080A
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wolon
-
Use:
-
FTTB
-
Warranty Time:
-
1 Year
-
Receiver Type:
-
Indoor CATV Optical Node
-
Application:
-
FTTX, HFC ,CATV
-
Color:
-
silver
-
Power Supply:
-
12V
-
Responsivity:
-
>=0.9A/W
-
Input Optical Power:
-
-10~0 dBm
-
Product name:
-
Optical Receiver
-
Material:
-
Metal
-
Warranty:
-
1 Yeras
Product descriptions from the supplier
Overview
1. Product Summary

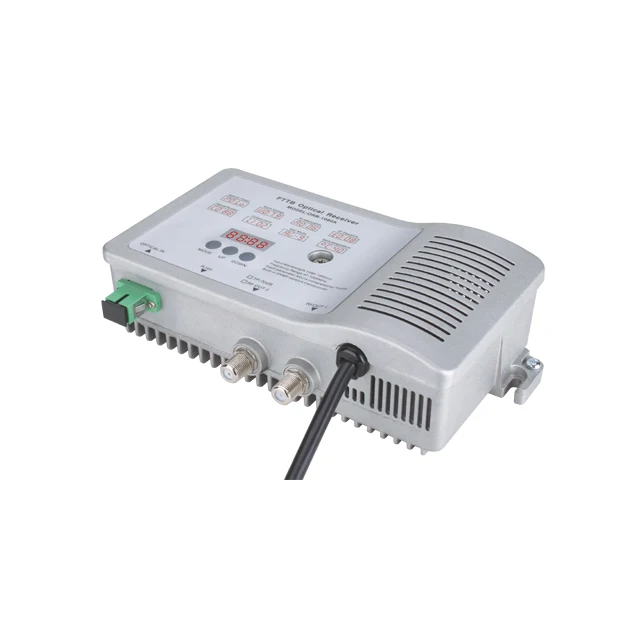

SR1002 optical receiver is our latest 1GHz FTTB bidirectional optical receiver. With wide range receiving optical power, high output level, low power consumption. It is the ideal equipment to build the high-performance NGB network.
2. Performance Characteristics
- Adopt advanced optical AGC technique, optical AGC control range: +2dBm ~ -9/-8/-7/-6/-5/-4dBm adjustable;
- Forward working frequency extended to 1GHz, RF amplifier part adopts the high performance low power consumption GaAs chip, the maximum output level up to 106dBuv;
- EQ and ATT both use the professional electric control circuit, make the control more accurate, operation more convenient;
- Built-in the standard II class network management responder, support remote network management (optional);
- With compact structure, convenient installation, it is the first choice equipment of FTTB CATV network;
- Built-in high reliability low power consumption power supply;
Note 1: Configure 59 PAL-D analog channel signals at the 550MHz frequency range. Transmit digital signal at the frequency range of 550~862/1003MHz. The digital signal level (in 8MHz bandwidth) is 10dB lower than analog signal carrier level. When the input optical power of the optical receiver is -1dBm, the output level: 108dBμV, EQ: 8dB.
