Quick Details
-
Jacket:
-
No sheath
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aoguli
-
Model Number:
-
OEM, AAC/AAAC/ACSR/ACSS/ACCC
-
Conductor:
-
Aluminium
-
Color:
-
Silver white
-
Standard:
-
GB1179, IEC 1089, DIN 48204, ASTM B232, BS215
-
Certificate:
-
ISO
-
Rated voltage:
-
6/10kv
-
Keywords:
-
AAC/AAAC/ACSR/ACSS/ACCC
Quick Details
-
Insulation Material:
-
No insulation material
-
Application:
-
Overhead
-
Conductor Material:
-
AAC/AAAC/ACSR/ACSS/ACCC
-
Jacket:
-
No sheath
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aoguli
-
Model Number:
-
OEM, AAC/AAAC/ACSR/ACSS/ACCC
-
Conductor:
-
Aluminium
-
Color:
-
Silver white
-
Standard:
-
GB1179, IEC 1089, DIN 48204, ASTM B232, BS215
-
Certificate:
-
ISO
-
Rated voltage:
-
6/10kv
-
Keywords:
-
AAC/AAAC/ACSR/ACSS/ACCC
|
Bare Conductor Types
|
|
|
|
|
||||
|
AAC
|
All Aluminum Conductor
|
|
|
|
||||
|
AAAC
|
All Aluminum Alloy Conductor
|
|
|
|
||||
|
ACSR
|
Aluminum Conductor Steel Reinforced
|
|
|
|
||||
|
TACSR
|
Thermal Resistant Aluminium Conductor Galvanized Steel Reinforced
|
|
|
|
||||
|
ACAR
|
Aluminum Conductor Aluminum Alloy Reinforced
|
|
|
|
||||
|
AACSR
|
Aluminum Alloy Conductor Steel Reinforced
|
|
|
|
||||
|
GSW
|
Galvanized Steel Wire Strand
|
|
|
|
||||

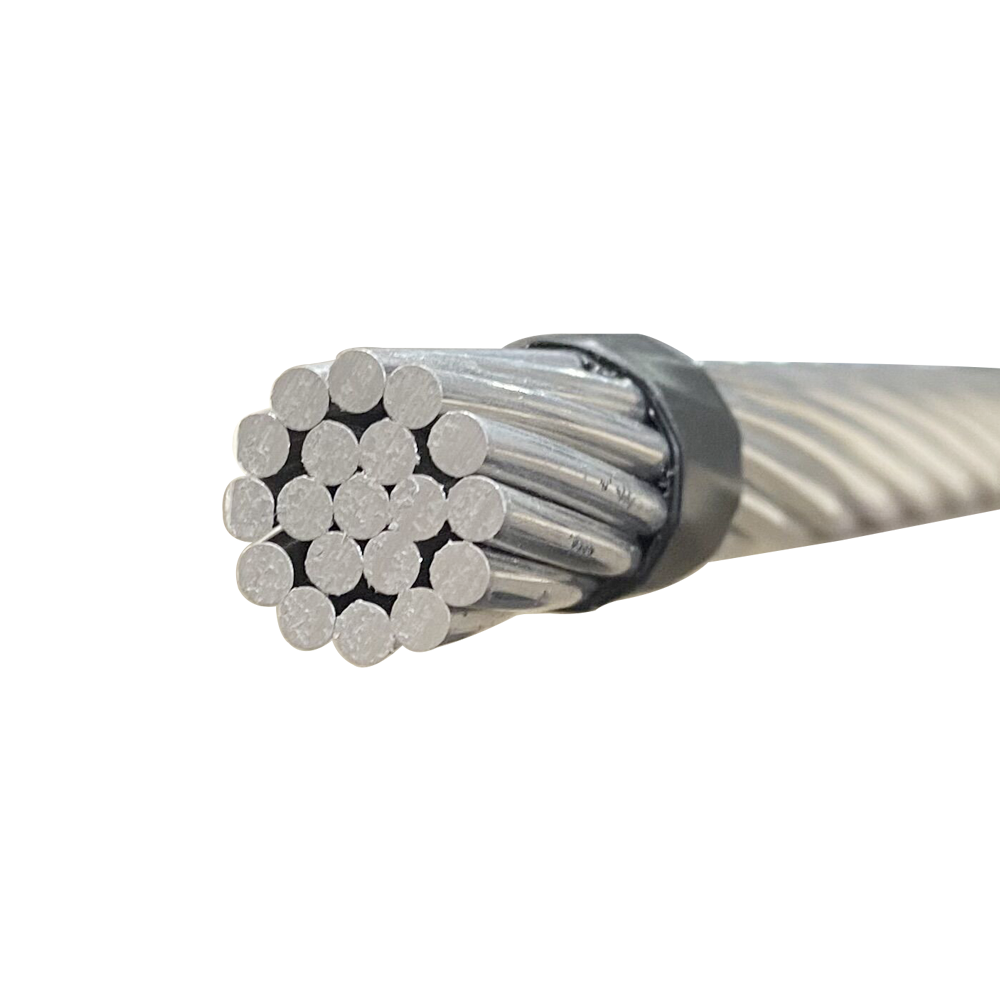

01.AAC All Aluminium Conductor
AAC CONDUCTOR APPLICATION
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%. AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance.
AAC CONDUCTOR STANDARDS
ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018
AAC Conductor with ASTM B231
Specifications
Aluminium conductors are known by codenames, differing depending on dimensions. Examples include
|
Code word
|
Size of Conductor(AWG or MCM)
|
Stranding and Wire Diameter(mm)
|
Overall Diameter(mm)
|
|
Peachbell
|
6
|
7/1.554
|
4.67
|
|
Rose
|
4
|
7/1.961
|
5.89
|
|
Lris
|
2
|
7/2.474
|
7.42
|
|
Pansey
|
1
|
7/2.776
|
8.33
|
|
Poppy
|
1/0
|
7/3.119
|
9.36
|
|
Aster
|
2/0
|
7/3.503
|
10.51
|
|
Phlox
|
3/0
|
7/3.932
|
11.8
|
|
Oxlip
|
4/0
|
7/4.417
|
13.26
|
|
Valerian
|
250
|
19/2.913
|
14.57
|
02.AAAC All Aluminum Alloy Conductor
AAAC CONDUCTOR APPLICATION
AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.
AAAC CONDUCTOR STANDARDS
ASTM B399, ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018
AAAC Conductor with ASTM B399
Specifications
Aluminium conductors are known by codenames, differing depending on dimensions. Examples include
|
Code word
|
SIZE AWG (KCMIL)
|
NUMBER OF STRANDS
|
|
Akron
|
6
|
7
|
|
Alton
|
4
|
7
|
|
Ames
|
2
|
7
|
|
Azusa
|
1/0
|
7
|
|
Anaheim
|
2/0
|
7
|
|
Amherst
|
3/0
|
7
|
|
Alliance
|
4/0
|
7
|
|
Butte
|
266.8
|
19
|
|
Canton
|
336.4
|
19
|
|
Cairo
|
397.5
|
19
|
|
Darien
|
477
|
19
|
|
Elgin
|
556.5
|
19
|
|
Flint
|
636
|
37
|
|
Greeley
|
795
|
37
|
03.ACSR All Aluminium Conductors Steel reinforced
ACSR CONDUCTOR APPLICATION
ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage transmission lines to sub-service spans at distribution or utilization voltages on private premises.
ACSR CONDUCTOR STANDARDS
ASTM B231, ASTM B 232, DIN 48201, BS 215, UNE 21.018
AAAC Conductor with ASTM B232
Specifications
Aluminium conductors are known by codenames, differing depending on dimensions. Examples include
|
Code word
|
SIZE AWG (KCMIL)
|
NUMBER OF STRANDS
|
|
Turkey
|
6
|
6/1
|
|
Swan
|
4
|
6/1
|
|
Swanate
|
4
|
7/1
|
|
Sparrow
|
2
|
6/1
|
|
Sparate
|
2
|
7/1
|
|
Robin
|
1
|
6/1
|
|
Raven
|
1/0
|
6/1
|
|
Quail
|
2/0
|
6/1
|
|
Pigeon
|
3/0
|
6/1
|
|
Penguin
|
4/0
|
6/1
|
|
Waxwing
|
266.8
|
18/1
|
|
Partridge
|
266.8
|
26/7
|
|
Ostrich
|
300
|
26/7
|
|
Merlin
|
336.4
|
18/1
|
|
Linnet
|
336.4
|
26/7
|
|
Oriole
|
336.4
|
30/7
|
|
Chickadee
|
397.5
|
18/1
|
|
Brant
|
397.5
|
24/7
|
|
lbis
|
397.5
|
26/7
|
|
Lark
|
397.5
|
30/7
|
|
Pelican
|
477
|
18/1
|
|
Flicker
|
477
|
24/7
|
|
Hawk
|
477
|
26/7
|
|
Hen
|
477
|
30/7
|
|
Osprey
|
556.5
|
18/1
|
|
Parakeet
|
556.5
|
24/7
|
|
Dove
|
556.5
|
26/7
|
|
Eagle
|
556.5
|
30/7
|
|
Peacock
|
605
|
24/7
|
|
Squab
|
605
|
26/7
|
