Quick Details
-
Model Number:
-
YY1000
-
Brand Name:
-
Yunyi
-
Item Name:
-
China solenoid valve coil solenoid valve price solenoid valve
-
Pressure:
-
0-7mpa
-
Orifice (mm):
-
1.0,1.2,1.5,2.0,2.5,3.0,3.5
-
Voltage:
-
DC-12V/24V ;AC110V/220V
-
Scope:
-
± 10%
-
Coils:
-
SC11B/SC12B,10VA(AC),10W(DC), IP65 100%ED
Quick Details
-
Port Size:
-
1/8'', 1/4''
-
Warranty:
-
2 years
-
Place of Origin:
-
Shaanxi
-
Model Number:
-
YY1000
-
Brand Name:
-
Yunyi
-
Item Name:
-
China solenoid valve coil solenoid valve price solenoid valve
-
Pressure:
-
0-7mpa
-
Orifice (mm):
-
1.0,1.2,1.5,2.0,2.5,3.0,3.5
-
Voltage:
-
DC-12V/24V ;AC110V/220V
-
Scope:
-
± 10%
-
Coils:
-
SC11B/SC12B,10VA(AC),10W(DC), IP65 100%ED
Fuel Land Cruiser Lpg Gas Back Cng Flow 25Bar High With Filter Rv24v solenoid valve coil cng solenoid valve
Specification 24v solenoid valve coil cng solenoid valve
| Characteristic |
1. Direct acting, low power 2.Long life and low temperature |
| Medium | air,water,oil |
| Temperature |
NBR:-10℃~80℃
EPDM:-30℃~120℃
VITON:-30℃~150℃
|
| Pressure | 0 ~ 7.0MPa |
| Thread | 1/8'',1/4'' |
O
rifice
(
mm):
1.0,1.2,1.5,2.0,2.5,3.0,3.5
Voltage:
DC-12V/24V ;AC110V/220V
Scope
:
± 10%
Coils:
SC11B/SC12B,10VA(AC),10W(DC), IP65 100%ED
Material:
Body-B
ass/
SUS304
Seal -
Viton/NBR/EPDM
Armature - SUS304
Plunger -
1J117
Stop -
1J117
Springs - SUS304
Shading Rings - Copper

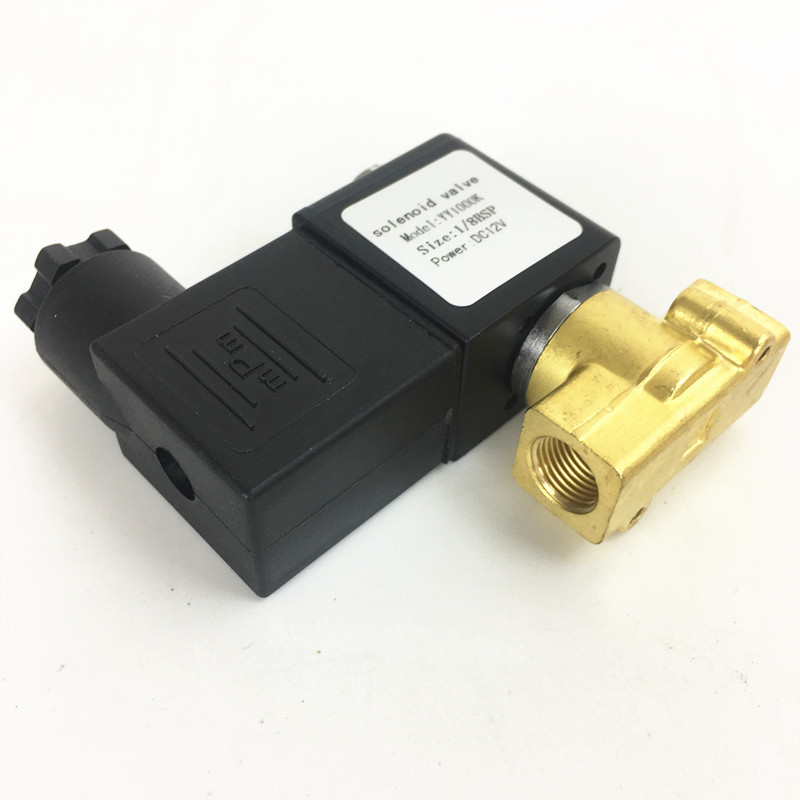

Detailed Images 24v solenoid valve coil cng solenoid valve
Dimension 24v solenoid valve coil cng solenoid valve
Selection Guide 24v solenoid valve coil cng solenoid valve
Related products 24v solenoid valve coil cng solenoid valve
