Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinghan
-
Model Number:
-
3000 pounds
-
Product name:
-

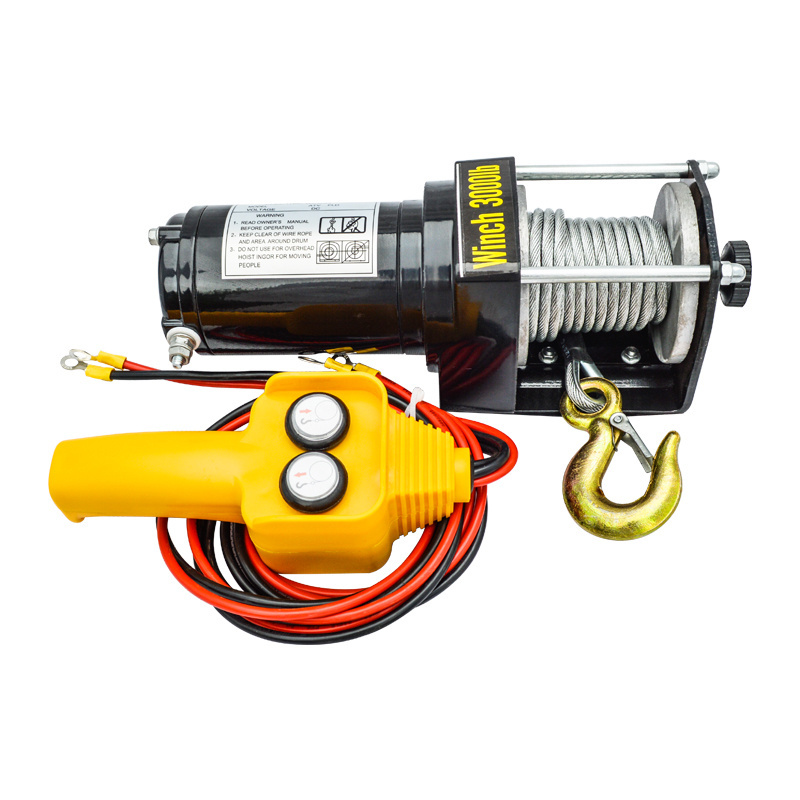

3000 LB electric winch
Quick Details
-
Power Source:
-
Electric
-
Application:
-
Industrial
-
Capacity:
-
200kg
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinghan
-
Model Number:
-
3000 pounds
-
Product name:
-
3000 LB electric winch
Products Description
Product Overview
Vehicle electric winch is widely used for vehicle first aid, lifting and hauling heavy objects, depending on the vehicle's own
power system to drive the winch. Work voltage choice: 12v/24v.
power system to drive the winch. Work voltage choice: 12v/24v.
It can provide strong pulling force by using anti-twist wire rope.Used normally in the case of vehicle flameout, suitable for off-road vehicle self-protection and traction, using rescue or self-help in snow, swamp, desert, beach, muddy mountain roads and other harsh environments.
Simple installation can achievemulti-position installation and rapid shift.
Product Paramenters
|
Model
|
2000LBS
|
3000LBS
|
3500LBS
|
4000LBS
|
|
Output Voltage
|
12V/24V
|
12V/24V
|
12V/24V
|
12V/24V
|
|
Horizontal traction
|
907kgs
|
1360kgs
|
1587kgs
|
1814kgs
|
|
Vertical lifting
|
453.5kgs
|
680kgs
|
793.5kgs
|
907kgs
|
|
contriol mode
|
handle
|
handle
|
handle
|
handle/ wireless
|
|
running speed
|
6m/min
|
6m/min
|
6m/min
|
6m/min
|
|
wire diameter
|
4mm
|
4.8mm
|
4.8mm
|
5.4mm
|
|
rope length
|
6m
|
8m
|
8m
|
8m
|
|
motor material
|
All copper
|
All copper
|
All copper
|
All copper
|
|
Gross Weight
|
6kgs
|
7kgs
|
8kgs
|
9kgs
|
|
overall dimension(cm)
|
28.6*10*10.5
|
39*10*10.5
|
34*11*11
|
35*11*11
|
|
Model
|
4500LBS
|
6000LBS
|
9500LBS
|
12000LBS
|
|
Output Voltage
|
12V/24V
|
12V/24V
|
12V/24V
|
12V/24V
|
|
Horizontal traction
|
2041kgs
|
2721kgs
|
4309kgs
|
5443kgs
|
|
Vertical lifting
|
1020.5kgs
|
1360.5kgs
|
2454kgs
|
2721kgs
|
|
contriol mode
|
wireless romote control
|
wireless romote control
|
wireless romote control
|
wireless romote control
|
|
running speed
|
6m/min
|
6m/min
|
6m/min
|
6m/min
|
|
wire diameter
|
5mm
|
8mm
|
10mm
|
10mm
|
|
rope length
|
10.5m
|
15m
|
20m
|
24m
|
|
motor material
|
All copper
|
All copper
|
All copper
|
All copper
|
|
Gross Weight
|
10kgs
|
26kgs
|
32kgs
|
38kgs
|
|
overall dimension(cm)
|
35*11.5*12
|
44.2*16*22.2
|
46*16*25
|
53.4*16*22.5
|
Product Application
Our electric winch has a traction of high capacity and can easily be used in most SUVs, ATV, UTV or something with a higher base like pickup trucks. It is essential for you to drive your loved car up hills, over sand roads or over muddy roads. It can help you get out of trouble by yourself without waiting for others’ help. Add this electric winch to your car for added safety. For example, when your car gets stuck in mud or water, you can use our electric winch to pull it out. This greatly saves your physical strength and time.
Our Advantages
Our electric winch uses pure copper motor which is very powerful. It can carry on the high power output. What’s more, it has powerful explosive power, especially when accelerating and climbing. At the same time, it has high stability.
1.12/24V volt series wound motor for power and fast line speed
2. Low-profile design will fit suv, offroad, jeep and so on
3.Durable, smooth, and reliable three-stage planetary gear train
4. Automatic load-holding break for safety
5. The clutch allows you to release winch rope by hand
6. Aircraft grade wire rope, or synthetic rope is optional
7. Remote switch + wireless remote control
8. We have 100% testing on winch pulling capacity and function
9. Our products are of well-designed, beautiful appearance and easy to install
1.12/24V volt series wound motor for power and fast line speed
2. Low-profile design will fit suv, offroad, jeep and so on
3.Durable, smooth, and reliable three-stage planetary gear train
4. Automatic load-holding break for safety
5. The clutch allows you to release winch rope by hand
6. Aircraft grade wire rope, or synthetic rope is optional
7. Remote switch + wireless remote control
8. We have 100% testing on winch pulling capacity and function
9. Our products are of well-designed, beautiful appearance and easy to install
Installation Instructions
Wiring instructions: the short conductor can be connected with the motor according to the color.
The long red wire is connected to the positive pole of the battery.
One end of the zero line is connected to the negative pole of the battery, and the other end of the zero line is connected to the terminal at the bottom of the motor together with the thin black line.
Precautions
1. When operating the winch, pay attention to maintaining a specific distance to prevent damage caused by cable breakage. When using the winch for rescue, the basic protection tool is rope. The purpose of using the rope is to prevent the winch rope from breaking, which can play a great role in resistance, thus greatly reducing the damage caused by rope breaking.
2. When using the winch, check the tightness of the anchor point. During towing, the rope may not retract neatly. Do not use your hands or other objects to guide the rope back. If the ropes are stacked on the rolling side, reverse the disc and adjust the running angle. After dragging, the winch rope can be loosened and rewound neatly.
3. Do not use the winch continuously for a long time. Generally, the continuous use will not exceed one minute, which can prevent the motor from failure due to overheating and extend the service life of the winch.
