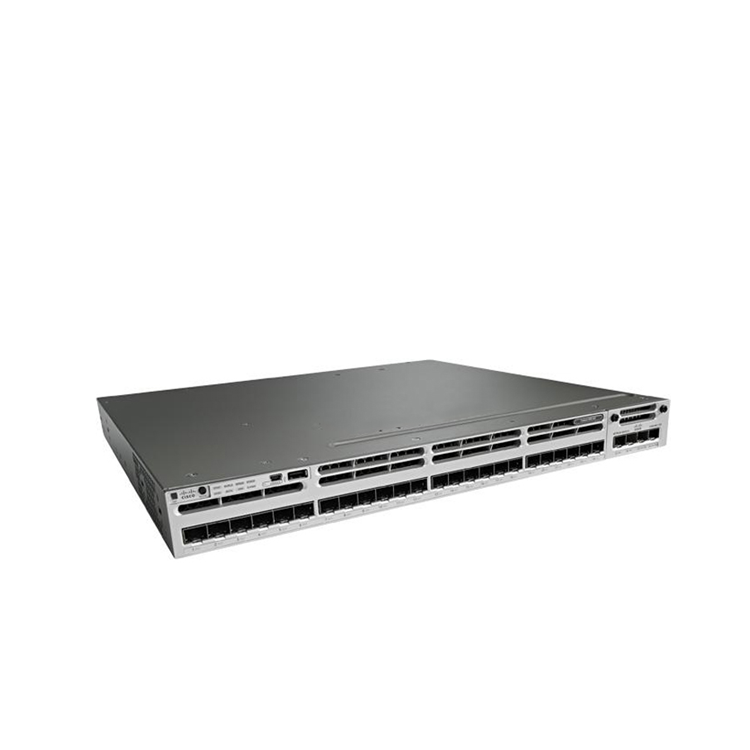

WS-C3850-24XS-E 3850 24 Port Fiber IP Services Switch

Product

WS-C3850-24XS-E

Product Description

Catalyst 3850 24 Port 10G Fiber Switch IP Services

Qty

24

Type

Management (mini-USB)

Connector Type

Type B

Comments

Management

Compliant Standards

AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A

Authentication Method

Kerberos, RADIUS, Secure Shell (SSH), TACACS+

MTBF

307,990 hours

Connectivity Technology

Wired/Wireless

Remote Management Protocol

CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP

Compliant Standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3z

Status Indicators

Active, Port duplex mode, Port transmission speed, Power, Status, System

Ports Qty

24

Routing Protocol

BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng

MAC Address Table Size

32000 entries

Stackable

Stackable

Subcategory

Network hubs and switches

Power Over Ethernet (PoE)

No

Advanced Switching

Layer 3

Manageable

Yes

Form Factor

Desktop, Rack-mountable

Jumbo Frame Support

9198 bytes

Subtype

10 Gigabit Ethernet

Frequency Required

50 - 60 Hz

Power Provided

715 Watt

Installed Qty

1

Max Supported Qty

2

Nominal Voltage

AC 120/230 V

Power Redundancy

Optional

Width

17.5 in

Depth

17.7 in

Height

1.8 in

Weight

13.45 lbs
