Quick Details
-
Working Voltage:
-
110V/220V/380V
-
Flow Rate:
-
55±5
-
Warranty:
-
12 MONTHS
-
Certificate:
-
ISO
-
Flow rate (L/min.):
-
55±5
-
Inlet Pressure:
-
≥54kPa.
-
Suction Distance (m):
-
6(vertical meter) / 50(horizontal meter)
-
Accuracy:
-
0.2%
-
Voltage(V):
-
110V/220V/380V,50Hz/60Hz
-
Capacity(hp):
-
1HP(0.75kw)
-
Input Voltage:
-
110V/220V/380V50Hz/60Hz
-
Nozzle:
-
Auto Shut-off Nozzle
-
Environmental Condition:
-
-40C+55C
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ecotec
-
Model Number:
-
CK-224C
-
Working Voltage:
-
110V/220V/380V
-
Flow Rate:
-
55±5
-
Warranty:
-
12 MONTHS
-
Certificate:
-
ISO
-
Flow rate (L/min.):
-
55±5
-
Inlet Pressure:
-
≥54kPa.
-
Suction Distance (m):
-
6(vertical meter) / 50(horizontal meter)
-
Accuracy:
-
0.2%
-
Voltage(V):
-
110V/220V/380V,50Hz/60Hz
-
Capacity(hp):
-
1HP(0.75kw)
-
Input Voltage:
-
110V/220V/380V50Hz/60Hz
-
Nozzle:
-
Auto Shut-off Nozzle
-
Environmental Condition:
-
-40C+55C
Product Description
Product detali

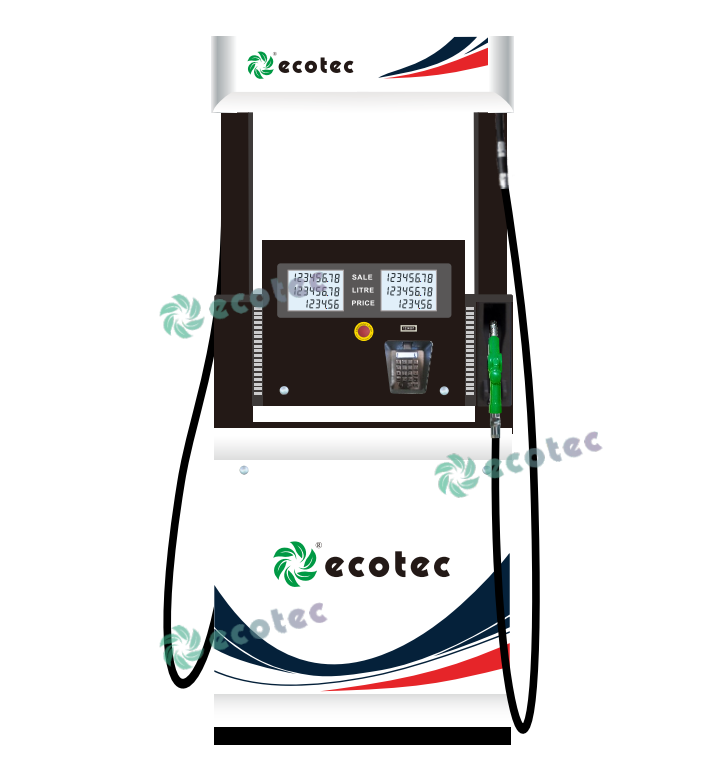

FUEL DISPENSER
CK-224C
2 Product 2 nozzle, 4nozzle can work at the same time
2 Product 2 nozzle, 4nozzle can work at the same time
Fuel Dispenser CK series with flow rate from 5LPM to 120LPMserve for dispensing of liquid oil products into car or trucks.
Model CK are progressive single or double side fuel dispenser with 1 to 4 hose(each side) for dispensing 4 Nozzles at the same time. The fuel dispenser are equipped by the highest-quality gear Pump and 4-Piston Flow meter and a reliable electronic controller WA and WB Series
A simple and attractive design with durable material
in addition to composite plastic nozzle boots with
automatic switch and countless design configuration
lasts longer and offers certain benefit to its users
Model available for Tatsuno / Tokheim / Bennett
LPG /Adble / CNGDispenser, and DC EV charger C
Available with IC / ID CARD SYSTEM
Optional function:Smart screen / LED rolling display Ticket printer / Voice Teller / Barcode Scanner
Fuelplus Management system working with
GRPS /4G /WIFI/ RJ 45 Wire and Lora to achieve remote control, error report, record enquiry on
cell phone, computer, Smart Scree and handle POS
|
Input Voltage
|
|
110V/220V/380V,50Hz/60Hz
|
Totalizer
|
|
1~~9,999,999
|
||
|
Nozzle
|
|
Auto Shut-off Nozzle
|
Hose
|
|
4.5m
|
||
|
Environmental Condition
|
|
-40ºC~~+55ºC
|
Weight
|
|
205kg
|
||
|
Control Type
|
|
Solenoid Vale Control Type
|
Dimension(L×W×H)
|
|
1000*500*2250(mm)
|
||
