Formally established in 2014, it has technicians in multiple workshops, more than 10 production equipment and multiple production
lines
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Xianghong
-
Product name:
-
Unpowered roller
-
Application:
-
Industry
-
Material:
-
Stainless steel, coated
-
Type:
-
Chain Conveyor
-
Usage:
-
Wide Usage
-
Keyword:
-
Conveyor Roller Tracks
-
OEM:
-
Accept
-
Function:
-
Material Conveying Accessories
-
Feature:
-
Long Service Life
-
Service:
-
OEM Customized Services
Quick Details
-
Warranty:
-
1.5 years
-
Weight (KG):
-
2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xianghong
-
Product name:
-
Unpowered roller
-
Application:
-
Industry
-
Material:
-
Stainless steel, coated
-
Type:
-
Chain Conveyor
-
Usage:
-
Wide Usage
-
Keyword:
-
Conveyor Roller Tracks
-
OEM:
-
Accept
-
Function:
-
Material Conveying Accessories
-
Feature:
-
Long Service Life
-
Service:
-
OEM Customized Services
Xianghong machinery equipment
Focus on roller research for many years Introduce modern production technology, Create good products at affordable prices, Welcome new and old customers to negotiate business.

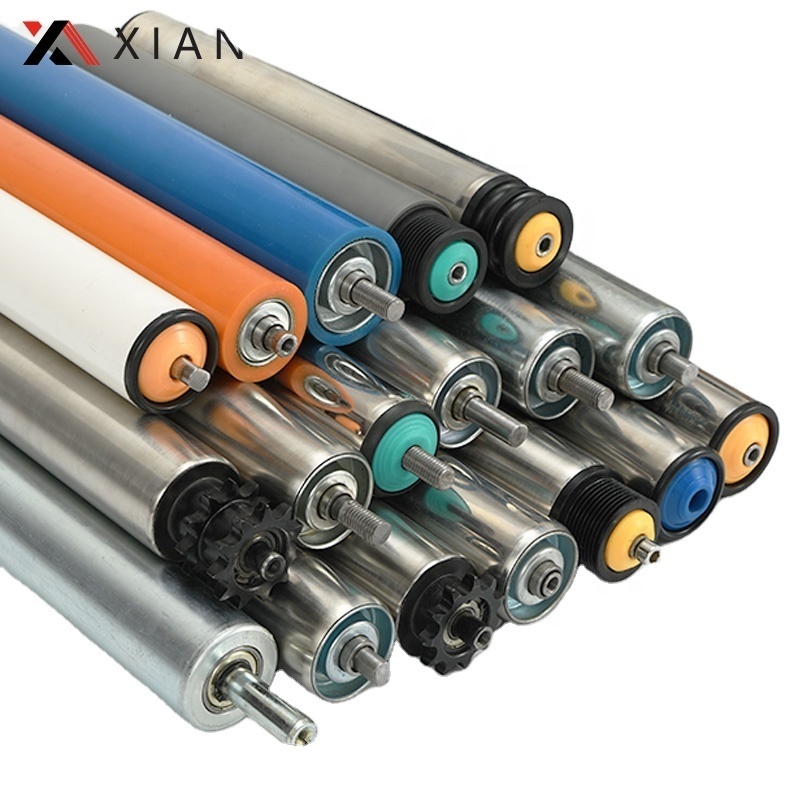

Coated sprocket roller
Sprocket power roller
Plastic steel power roller
Accumulation type power roller
Multi-wedge belt power roller
Sleeve glue power roller
Product information
Sprocket power roller series
●Steel galvanized bearing housing
●High speed, quiet and higher transmission efficiency
●Heavy load, stable operation and wide application range
●High speed, quiet and higher transmission efficiency
●Heavy load, stable operation and wide application range
Product usage scenarios
In the field of logistics, rollers are widely used to transport goods. Compared with the traditional conveyor belt, the roller
conveyor line is more flexible and can be customized according to the actual needs to achieve a variety of conveying requirements.
conveyor line is more flexible and can be customized according to the actual needs to achieve a variety of conveying requirements.
Technology & Process
Synchronous whee
Synchronous whee
Multi-wedge belt
Groove
Groove
Sprocket
“CYLINDRICAL SURFACE TECHNOLOGY
”
Increase the friction of contact surface
In order to make the system run stably,Prevent slipping
Need to be at the contact surface increase friction between them
Surface Coating
Surface Knurled
Surface PVC Soft glue
Excellent detail Achieve excellent experience
Flexible rotation
Shaft steel material, smooth rotation, stability,
Save trouble without worry
Automatic welding
Automatic welding with new technology, the welding joint is more uniform and fastened, and the surface is smooth and beautiful
Various processes
THERE ARE MANY KINDS OF DRUM
MANUFACTURING PROCESSES, STAMPING.
WELDING SLEEVE, TURNING EQUAL PROCESS,PROVIDE CUSTOMERS WITH MORE CHOICES,BUY THE RIGHT PRODUCT
Multiple
specifications
SPROCKETS OF VARIOUS SPECIFICATIONS
CAN BE PROVIDED,
CUSTOMERS CAN CHOOSE MATCHING
ACCORDING TO DESIGN NEEDS, MASSIVE
4 MINUTES AND 11 TEETH.
4 MINUTES AND 9 TEETH.
4 MINUTES AND 14 TEETH.
THE SPECIFICATION SPROCKET,
FAST PRODUCTION SPEED
“Careful selection of materials
Refuse to cut corners and rest assured of quality
”
Strictly select raw materials, Stable performance, Quality assurance
Refuse to cut corners, Quality assured
Blackened sprocket fittings
1.Run smoothly
2.Stable performance
3.Accurate dimensions
4.L
ong service time
Brand precision bearing
1.Forging with high quality bearing steel
2.
High density
3.
Strong wear resistance
“Wide range of application‘’
Widely applicable to Automobile manufacturing industry：Airport facilities、 Conveying equipment、 Automation industry and other industries
Product parameters
|
Brand: Xianghong machinery
|
|
Origin: Dongguan City, Guangdong Province, China
|
|
Product Category: Sprocket power roller series
|
|
Roller diameter/MM: 32 38 50 60 76 89
|
|
Roller thickness/MM: 0.9/1.0/1.2/1.5/2.0/3.0
|
|
Shaft diameter/MM: 8/12/15/20/25
|
|
Roller material: Stainless steel / Galvanizing
|
|
Bearing category: Adopt national standard brand bearings
|
|
Sprocket model: 06B9、 06B11、 08B9、 08B11、 08B14、 10A13Tooth
|
|
Internal teeth: M5/M6/M8/M10/M12/M14
|
|
Installation method: S (Spring telescopic) M (Milling flat) I (Internal thread) IM (External thread)
|
|
This product Roller diameter, Thickness as well as Sprocket model can be referred to-《Conventionalparameters of sprocket powerroller》 , If you have any questions, please contact customer service to answer them for you!
|
|
|
|
|
|
|
||||||
|
Conventional parameters of sprocket power roller
|
|
|
|
|
|
|
||||||
|
Diameter/MM
|
Thickness /MM
|
Pipe material
|
Shaft diameter /MM
|
Sprocket model
|
Internal teeth
|
Installation mode
|
||||||
|
XH-32
|
0.9
|
Stainless stee
|
12
|
06B9Tooth
|
M5/M6
|
Spring telescopic
Milling flat
Internal thread
External thread
|
||||||
|
XH-38
|
1.0/1.2/1.5
|
Stainless steel
Galvanizing
|
8/12
|
06B11Tooth 08B9Tooth
|
M6/M8
|
|
||||||
|
XH-50
|
1.0/1.2/1.5
|
|
12/15
|
08---B9/B11/B14Tooth
|
M6/M8/M10
|
|
||||||
|
XH-60
|
1.0/1.2/1.5
|
|
12/15/20
|
08---B9/B11/B14Tooth
|
M8/M10/M12
|
|
||||||
|
XH-76
|
1.5/2.0
|
|
15/20
|
08-B11/B14Tooth 10A13Tooth
|
M8/M10/M12
|
|
||||||
|
XH-89
|
2.0/3.0
|
|
20/25
|
08B14Tooth 10A13Tooth
|
M10/M12/M14
|
|
||||||
|
Bearing category: Adopt national standard brand bearings
|
|
|
|
|
|
|
||||||
"Roller drawing display"
In-depth understanding of products
Other types of products
PVC unpowered roller
Synchronous wheel electric roller
Glue-coated unpowered roller
AC electric roller
Grooved electric roller
Stainless steel unpowered roller
Production equipment
Company staff 50 +, production equipment 10 +. For many years, we have been focusing on the production and development of rollers
