Quick Details
-
Max. Forward Voltage:
-
3.4V
-
Max. Reverse Voltage:
-
5V
-
Max. Forward Current:
-
20MA
-
Max. Reverse Current:
-
5
-
Forward Voltage:
-
2.0-2.6V/3.0-3.4V
-
Forward Current:
-
20mA
-
Wave length:
-
R: 620nm-630nm, G: 520nm-530nm, B: 450-470nm
-
Product Type:
-
Dip LED
-
Lens:
-
Clear lens/diffused lens oprional
-
Pin quantity:
-
4pin (4 Pins)
-
Leg:
-
long leg/short leg optional
-
Viewing angle:
-
25 Degree/30 degree/ 45degree/60degree/90degree
-
LED shape:
-
nipple(butterfly)/round shape
-
polarity:
-
common anode/Cathode
Quick Details
-
Model Number:
-
3mm LED RGB
-
Brand Name:
-
Litlight
-
Place of Origin:
-
Guangdong, China
-
Max. Forward Voltage:
-
3.4V
-
Max. Reverse Voltage:
-
5V
-
Max. Forward Current:
-
20MA
-
Max. Reverse Current:
-
5
-
Forward Voltage:
-
2.0-2.6V/3.0-3.4V
-
Forward Current:
-
20mA
-
Wave length:
-
R: 620nm-630nm, G: 520nm-530nm, B: 450-470nm
-
Product Type:
-
Dip LED
-
Lens:
-
Clear lens/diffused lens oprional
-
Pin quantity:
-
4pin (4 Pins)
-
Leg:
-
long leg/short leg optional
-
Viewing angle:
-
25 Degree/30 degree/ 45degree/60degree/90degree
-
LED shape:
-
nipple(butterfly)/round shape
-
polarity:
-
common anode/Cathode

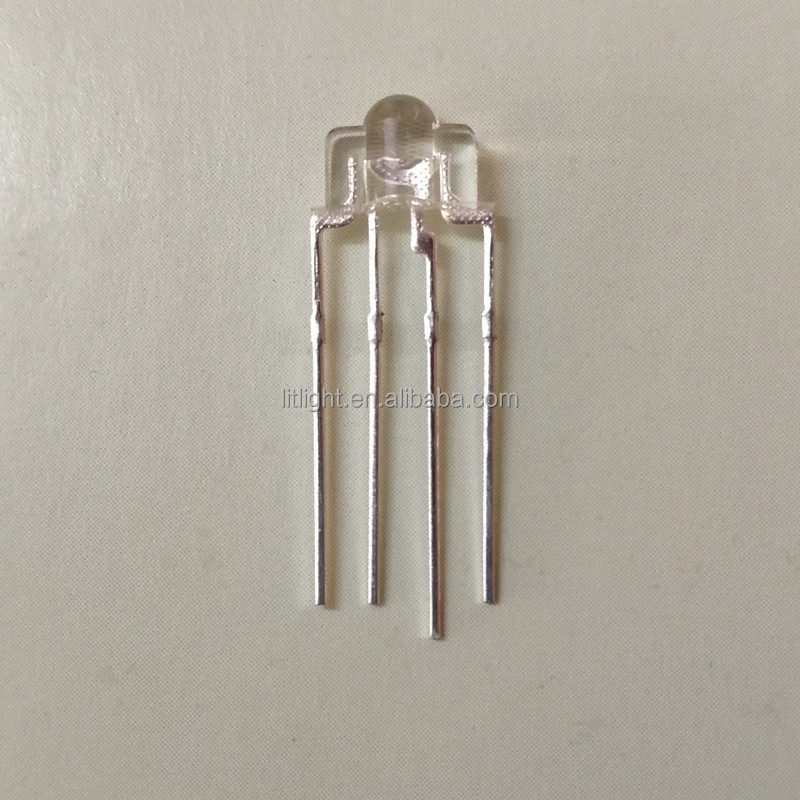

F3 RGB LED full color diffused nipple shape diode 4 pin common cathode/anode 3mm LED chip for mechanical keyboard lighting
|
Electro-Optical characteristics (TA=25°C) |
|||||||
|
Parameter |
Test Condition |
Symbol |
Color |
Value |
Unit |
||
|
|
|
|
|
Min |
Typ |
Max |
|
|
Forward voltage |
I F = 20 mA |
Vf |
R G |
2.0 3.0 |
-- |
2.6 3.4 |
V |
|
luminous flux |
I F = 20 mA |
φ |
R |
|
-- |
|
MCD |
|
Viewing angle at 50% IV |
I F = 20 mA |
2θ1/2 |
R |
-- |
120 |
-- |
Deg |
|
Dominant wavelength |
I F = 20 mA |
λd |
R G B |
620 520 450 |
-- |
630 530 470 |
nm |
|
Reverse current |
Vr=5V |
Ir |
R |
-- |
5 |
-- |
μA |
|
View Angle |
I F = 20 mA |
deg |
R |
25 |
degree |
||
Product Catalog:
Q
uestion
1. Can I have a sample order of the led?
A: Yes, we welcome sample order to test. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 working days, mass production needs 3-7 working days if order quantity more than 10K.
Q3. Do you have any MOQ limit for led light order? What's the Payment method?
A: MOQ is
20000
pcs for each model. We accept Alibaba Trade Assurance(Credit card or T/T),Paypal, and Western Union payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.
Q5. How to proceed an order for the led?
A:
for some products, you can buy on our web directly; otherwise, please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new LEDs with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
