Quick Details
-
Weight:
-
260kg
-
Warranty:
-
6 months
-
Name:
-
Man Portable Drilling Rig
-
Application:
-
Mountaine Area, Railway, Highway, Hydropower Construction Drilling
-
Drilling Hole Dia.:
-
<75mm
-
Max Drilling Depth:
-
50m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOHWA
-
Dimension(L*W*H):
-
1400x680x1230mm
-
Weight:
-
260kg
-
Warranty:
-
6 months
-
Name:
-
Man Portable Drilling Rig
-
Application:
-
Mountaine Area, Railway, Highway, Hydropower Construction Drilling
-
Drilling Hole Dia.:
-
<75mm
-
Max Drilling Depth:
-
50m
Small Man Portable SPT Drilling Rig and Core Drilling Rig
I. Product Description
WD-50(M) is a simple rig suitable for borehole drilling in geo-construction and geo-technical exploration drilling, and mountain area drilling in projects like civil building, railway construction, hydropower, highway, bridge and dam etc. Typically, it is mainly used for:
- SPT working
- Diamond Core drilling
- Soil sampling with auger drilling (SPT).
- Micro piling
- Water well drilling by carbide and rotary drilling.
II. Main Features
- Compact in size and light in weight (Total weight without power unit is less than 260kg, it can be further disassembled), and it is easy to be carried and transported in difficult mountain working sites.
- Movable skid base, the drilling spindle could move away from the borehole easily;
- With a hydraulic auxiliary winch, it could help lift the drill rod and SPT tools, convenient for working;
III. Technical Specification
| WD-50 | WD-50M | |
| Drill Rod Dia. | 42mm | 42mm |
| Max. Drill Depth | 50m | 50m |
| Hole Dia. | 75mm | 75mm |
| Spindle Speed | 70-650rpm | 70-650rpm |
| Reverse Speed | 50-130rpm | 50-130rpm |
| Diesel Engine Power | 5.7kw | 5.7kw |
|
Weight
(without Crawler&Power) |
220kg | 260kg |
| Dimension | 1180x680x1600mm | 1400x680x1230mm |
| Winch Lift Force | N/A | 500kg |
| Skid Base Sliding Distance | N/A | 200mm |
| Spindle Feeding Stroke | 600mm | 600mm |
| Kelly bar | A in-built kelly bar,L=1000mm | Dia.46x51 mm, L=3000mm |
| Drill Mast | N/A | Optional |
Note: Drilling Depth Varies as per the different rock formation;

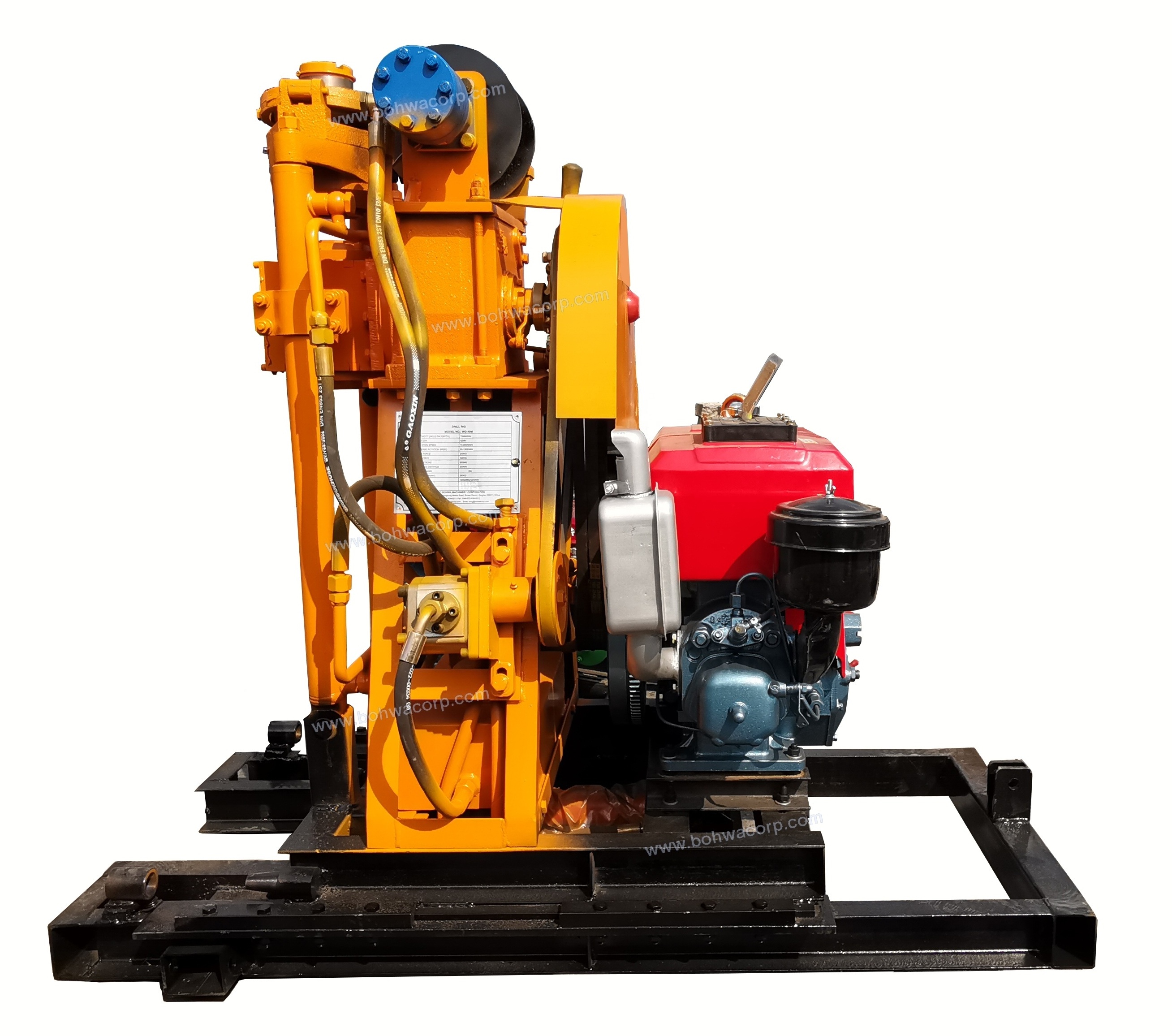

IV. Machine Photos
