28 inch Indoor Stretched Bar LCD Display Android 7.0 Shelf Edge Digital Signage Strip Screen for Market Store Advertising Player

28 inch Indoor Stretched Bar LCD Display Android 7.0 Shelf Edge Digital Signage Strip Screen for Market Store Advertising Player

FOB Reference Price: Get Latest Price

≥1 Sets

US $259

≥100 Sets

US $229

≥500 Sets

US $199

≥1000 Sets

US $189

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Size:: 28"

Place of Origin:: Guangdong, China

Model Number:: kc-28" lcd streth bar display

Pixel Pitch:: 0.36MM, 0.53*0.53mm, 4k

Specification:: LCD Stretch bar lcd screen

Size:: 28''

Dimension:: 729.7*161.5*66.5mm

Display area:: 698.4*130.9mm

Brightness:: 500nits

Resolution:: 1920*360

Display color:: 16.7M

View Angle:: 89/89/89/89

Power:: AC 110-240V

Display ratio:: 16:3

Quick Details

Application:: Indoor, Semi-outdoor

Brand Name:: KINGCHONG

Color:: Full color

Panel Size:: 28"

Place of Origin:: Guangdong, China

Model Number:: kc-28" lcd streth bar display

Pixel Pitch:: 0.36MM, 0.53*0.53mm, 4k

Specification:: LCD Stretch bar lcd screen

Size:: 28''

Dimension:: 729.7*161.5*66.5mm

Display area:: 698.4*130.9mm

Brightness:: 500nits

Resolution:: 1920*360

Display color:: 16.7M

View Angle:: 89/89/89/89

Power:: AC 110-240V

Display ratio:: 16:3

Specification

Panel parameter

Model

CTP191LY9C1-01

CTP195LY9C1-01

CTP191LY9C1-01

CTP231LY9C1-01

CTP240LY9C1-01

CTP280LL9C1-01

Dimension

500*116 mm

500*159 mm

565*338*46.6mm

599*62.5 mm

615*134 mm

731*163 mm

Display area

476.64*89.37 mm

476*116 mm

520.2*293.2 mm

585.6*48.19 mm

597.89*112.11 mm

698.4*130.95 mm

Brand

LG/SAMSUNG/AU

Resolution

1920*360

1920*540

1920*132

1920*158

1920*360

Brightness

300cd/m2

500cd/m2

300cd/m2

700cd/m2

Display Colors

8 Bit-16.7M

Aspect ratio

0.67

Response time

8MS

Contrast

5000:1

View angle

178°/178°(H/V)

Panel parameter

Model

CTP286LL9C1-01

CTP340LL9C1-01

CTP350LL9C1-01

CTP362LL9C1-01

CTP366LL9C1-01

CTP371LL9C1-01

Dimension

731*228 mm

819*360 mm

905*67 mm

910*270 mm

964*178 mm

976*80 mm

Display area

698.4*196.4 mm

799.8*334.8 mm

885.6*50 mm

885.6*250 mm

919.3*138.85 mm

941.18*66.18 mm

Brand

LG/SAMSUNG/AU

Resolution

1920*540

3440*1440

1920*108

1920*540

1920*1080

1920*135

Brightness

500cd/m2

300cd/m2

500cd/m2

700cd/m2

500cd/m2

Display Colors

8 Bit-16.7M

Aspect ratio

0.67

Response time

8MS

Contrast

5000:1

View angle

178°/178°(H/V)

Panel parameter

Model

CTP377LL9C1-01

CTP385LL9C1-01

CTP430LL9C1-01

CTP480LL9C1-01

CTP495LL9C1-01

Dimension

976*211 mm

976*300 mm

1092*219 mm

1220*250 mm

1250*380 mm

Display area

941.18*177.4 mm

941.18*264.7 mm

1073.8*201 mm

1194*224 mm

1209.6*340.2 mm

Brand

LG/SAMSUNG/AU

Resolution

1920*375

1920*540

1920*360

3840*720

1920*540

Brightness

500cd/m2

1000cd/m2

500cd/m2

Display Colors

8 Bit-16.7M

Aspect ratio

0.67

Response time

8MS

Contrast

5000:1

View angle

178°/178°(H/V)

Product Features

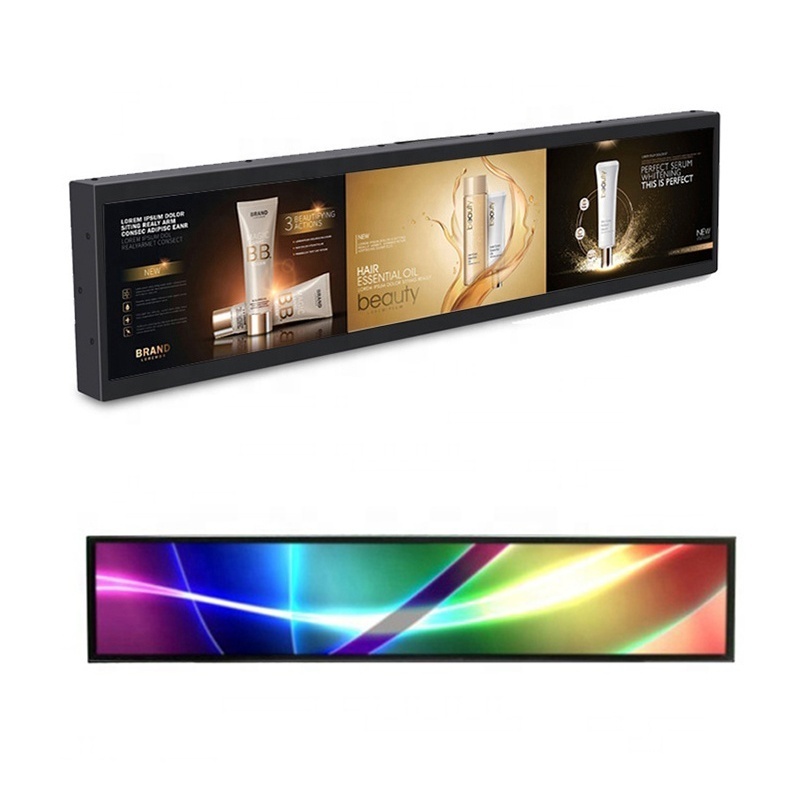

Stretch bar LCD display

Stretch bar LCD display is a commercial display products with an ultra-wide LCD screen.In order to meet different needs,it has various display ratios of length and width.

The ultra stretched digital shelf edge display is designed to work with the real-life requirements of the retail environment.

The retail digital shelf display is an attractive Shelf Edge LCD Display well suited for a variety of in-store, on-shelf digital signage applications such as retail shelf edge pricing, retail shelf edge advertising, and multi-shelf digital signage in supermarkets, grocery stores, liquor stores, clothing stores, and other retail applications.

LCD stretch bar lcd are packaged using honeycomb boxes/cartoon box/wooden box/flight case.Depending on what is required.

Products Description

Security Configuration
1. Battery of car power protection: 1 low voltage protection and 1 timer protection
2. Alternator protection:1 set low voltage protection.
3. Additional 1 minute fast cooling system for when power on after high solar exposure.
4. Environment camera (if needed, additional costs)
5. Filter block percentage detection sensor.
6. Door open sensor
7. Human sensor and warning with people photos upload
8. 7/24 hours video recording of double side.(2 camera need 130 USD additional)

Outershell:
1. IK10 and IP65 level outershell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outershell,vandal proof.
Android Solution (RK3288)
1,CPU: Quad core Cortex-A17, 2.0GHZ
2,GPU: ARM Mali-T764 GPU
3,DDR: DDR3 2G
4,ROM NAND FLASH: 8G
5,Exteral ROM Support up to 32G bytes sd card
6,WiFi Support 802.11b/g/n wifi module
