Quick Details
-
Product:
-
Metal Access Control Reader Smart Lock
-
App control:
-
no APP control
-
Power source:
-
Electric
-
Protection grade:
-
IP68
-
Identification mode:
-
PIN, ID card, Pin+ID card (Optional IC)
-
Material:
-
Metal
-
Keypad:
-
Backlight touch keypad
-
Feature:
-
Touch screen, waterproof, wet And Dry
-
Use:
-
Universal
-
Application:
-
Hotel, outdoor, garage, commercial, home
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elefine
-
Model Number:
-
EF-FL01
-
Product:
-
Metal Access Control Reader Smart Lock
-
App control:
-
no APP control
-
Power source:
-
Electric
-
Protection grade:
-
IP68
-
Identification mode:
-
PIN, ID card, Pin+ID card (Optional IC)
-
Material:
-
Metal
-
Keypad:
-
Backlight touch keypad
-
Feature:
-
Touch screen, waterproof, wet And Dry
-
Use:
-
Universal
-
Application:
-
Hotel, outdoor, garage, commercial, home

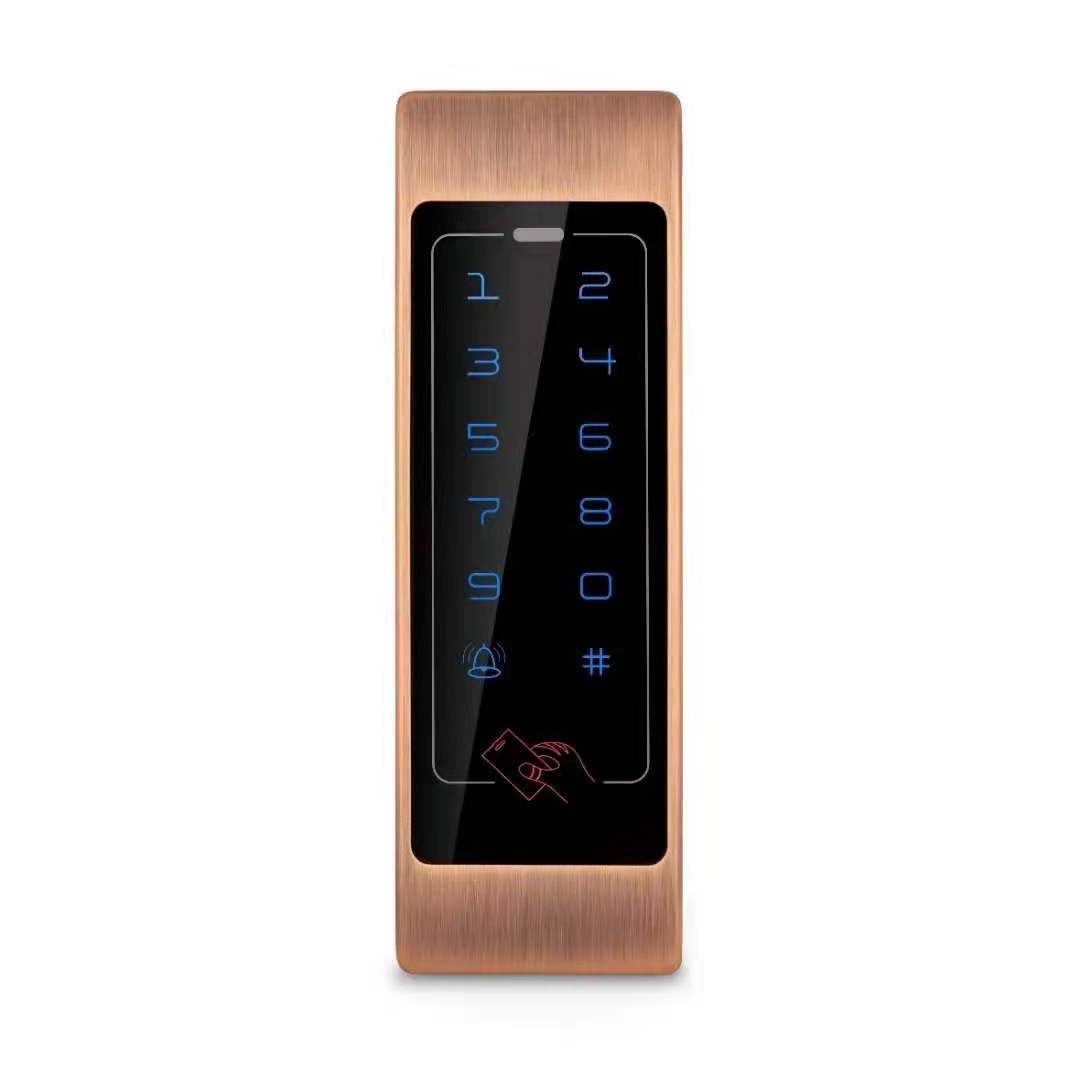

Metal Touch Keypad Access Control Terminal
Stand Alone Single Door Metal Electronic Keypad NFC Waterproof RFID Card Reader Access Control Smart Lock
Product Description
Product introduction
This product is a non-contact induction card, metal password touch access control machine, according to different models support em, Mifare two induction cards, is currently one of the most advanced single door access controller. It uses a unique metal shell design, smart keyboard panel operation, built-in high-grade microprocessor, strong anti-interference ability, high security and reliability, can provide a strong security guarantee for 4000 users. It has ultra-low power consumption, luminous keyboard, independent password, Wigan output, output short-circuit protection, door magnetic alarm, anti demolition alarm, door opening button, doorbell interface, security level setting and other powerful functions. It is very convenient to use, and can be widely used in families, offices, residential areas and other public places.
Product features:
1. Longer controller life, more stable performance, ultra-low power consumption, standby current less than 30mA.
2. Metal structure design, built-in high-grade microprocessor, strong anti-interference ability, high safety and reliability.
3. Wigan output: with Wigan output interface, it can output WG26 card number or wg34 key number.
4. Luminous keyboard: capacitive induction touch key, digital light transmission, night can also operate the keyboard.
5. Output short circuit protection: when the electric lock or alarm output is short circuited, the output of this terminal will be closed automatically within 100μS.
6. You can delete the card number with the keyboard: after the card is lost, you can delete the card number with the keyboard to completely eliminate the potential safety hazard.
7. Relay mode: swipe the card to open the door, then swipe the card to close the door. No is the normally open end of the relay, com is the common end of the relay, and NC is the normally closed end of the relay.
8. Anti disassembly alarm: after illegal disassembly, the built-in buzzer will give an alarm sound.
9. There are doorbell buttons and interfaces: the buttons are isolated from the circuit, and any doorbell can be connected externally.
10. Independent password: the password unrelated to the card can be used to open the door.
11. User's password modification: the user can modify the door opening password by himself.
12. Fast search speed: the time between swiping the card and opening the door is less than 0.1s.
Specification
|
Item
|
Value
|
|
Working voltage
|
DC12V
|
|
Quiescent current
|
≤ 30mA
|
|
Working currenct
|
≤ 100mA
|
|
Card reading distance
|
1 ~ 15cm
|
|
Storage capacity
|
4000 users
|
|
Ambient temperature
|
0 ℃ ~ 60 ℃
|
|
Environmental humidity
|
20% ~ 90%
|
|
Electric lock output
|
≤ 3A
|
|
Protection grade
|
IP68
|
|
Identification mode
|
PIN, ID card, Pin+ID card (Optional IC)
|
|
Alarm output
|
≤ 20A
|
|
Keypad
|
Backlight touch keypad
|
|
Feature
|
Touch screen, waterproof, wet And Dry
|
|
Use
|
Universal
|
|
Application
|
Hotel, outdoor, garage, commercial, home
|
|
Output short circuit protection time
|
≤ 100 μ S
|
|
Opening time
|
0 ~ 99 seconds (adjustable)
|
|
Overall dimension
|
140 * 45 * 18mm
|
|
Weight
|
110g
|
Wiring Diagram
Suitable for wooden, metal,
stainless steel door,
frameless glass door
and glass frame door
Applications
Suitable for
families, offices, residential areas and other public places. Below picture is for reference only. You may order other accessories from us too if you prefer.
