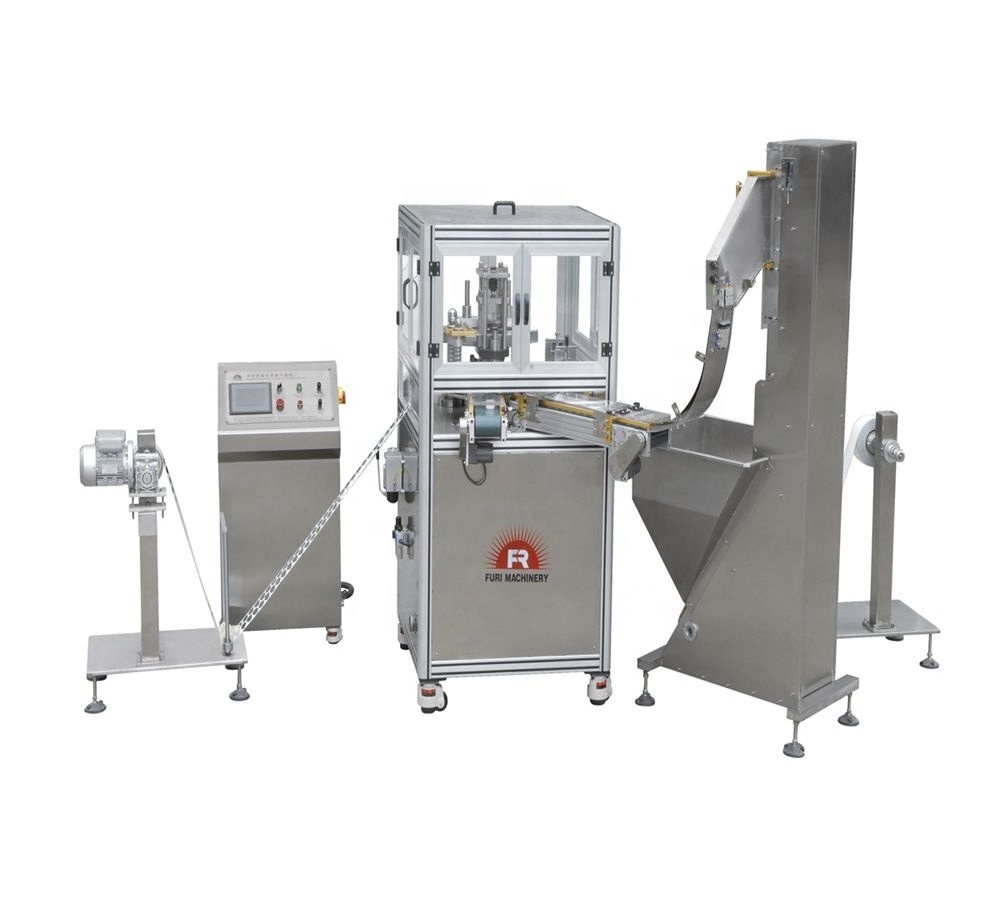

lid closure tapa cap liner die cutting inserting wadding LINING MACHINE

1.Application:This machine is an ideal liner inserting machine which is widely applied in cap factories, liner factories, pharmaceutical factories, food products factories, daily chemical factories, packing factories, etc..

2. Operation principle:hoist cap feeder sorting and feeding caps into the conveyor with upwards direction,then cut the reeled liner materials into specified size and simultaneously insert the precut liner into the cap; finally, the liner pressing unit press the liner to the bottom of the cap and shapping.

Process: Feeding the caps — cutting  the liner —inserting Liners into caps— counting the caps — Outlet.

3. Structure: Automatic cap hoist sorting and feeder: it can sorting the disorder caps to be orderly through rotation and make all caps with the mouths upward.

Cap conveying unit: accurately and orderly convey the arranged caps to the liner inserting unit.

Liner inserting unit: insert the liner into the cap.

Unit for sifting caps with reverse-sided liners or without liner: it can automatically sift caps with reverse-sided liners or without liner, thus to guarantee that all caps are qualified. (Optional)

6.Touche screen control board for easy operation.

7,Machine capacity:100-120 pcs/Min.

8,G/N Weight: 800/700 KGS.

9,Power: 2.2 KW, 220V.single Phase or 380 V,3 phases,50/60 HZ.

10,Gurantee: Machine under 1 year guarantee since machine arrives in Customer's plant.and also we supply machine life time after sales technicial support and parts providing.
