Quick Details
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qingdao dongnuo
-
Voltage:
-
380v or Customer settings
-
Dimension(L*W*H):
-
4250*1850*1870
-
Year:
-
NEW PRODUCT
-
Power (kW):
-
37KW
-
Weight (KG):
-
6600 KG
-
Advertising Company:
-
Video technical support, Online support,
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service
Quick Details
-
Diameter of Roll(mm):
-
400 mm
-
Length of Roll(mm):
-
1000 mm
-
Roll Ratio(Front/Back):
-
1:1.27
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qingdao dongnuo
-
Voltage:
-
380v or Customer settings
-
Dimension(L*W*H):
-
4250*1850*1870
-
Year:
-
NEW PRODUCT
-
Power (kW):
-
37KW
-
Weight (KG):
-
6600 KG
-
Advertising Company:
-
Video technical support, Online support,
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service

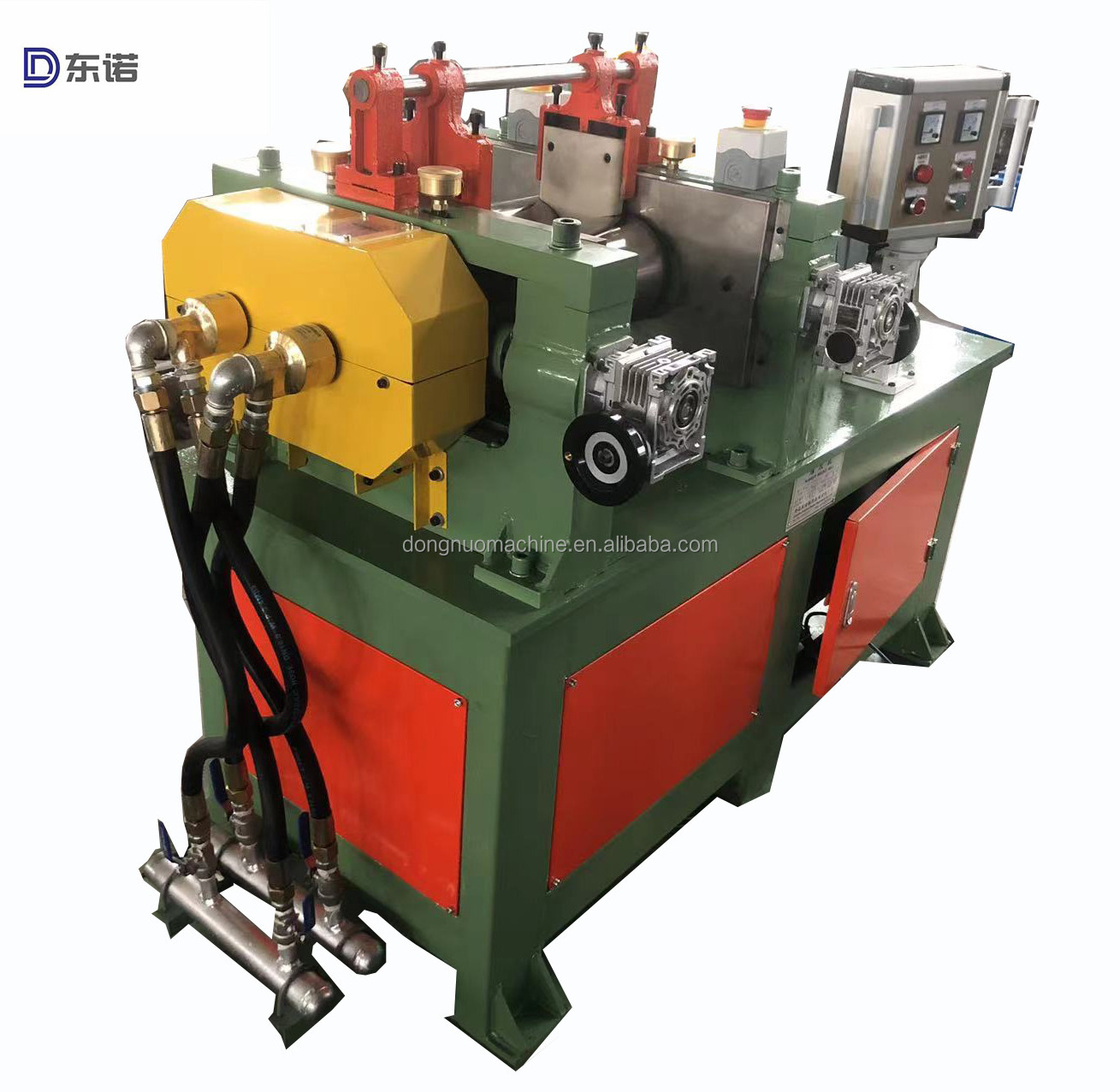

China XK-160 Silicone Rubber Two Roller Mixing Mill lab rubber mixing mill machine second hand rubber mixing mill
1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll.
and so on.
and so on.
2.The roll is supported by roller bearing so it has low noise and long service life.
3.The roll bearing adopts grease lubricating and oil lubricating.
4.The pressure transducer system is available for directly displaying the working pressure and
control the feed. When over pressure, it will automatically stops and save or print the pressure value.
control the feed. When over pressure, it will automatically stops and save or print the pressure value.
5.The product is complied with nation-established safety standard (this standard is identical with Europe standard.)
6 The base frame is a whole framework,which is convenient for installation.
7 Stock bender for direct rubber sheet and knife to cut as your need to assemble.
8.Auto-lubrication sysytem for greese or oil and match bearing bush.
Product Description
1.XK-160 lab rubber mixing mill . Mainly used for lab use
rubber open mixing mill is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory。
2. xk-400 rubber mixing mill
production is about 350 kg/h . From this model , we begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.
3.XK-450 rubber mixing mill
two configuration , stock blender is choosed . 500 kg/h
4.XK-560 rubber open mixing mill
two configuration , stock blender . production is 500 KG/H
Specification
|
Type
|
Xk-160
|
Xk-250
|
Xk-300
|
Xk-400
|
Xk-450
|
Xk-560
|
Xk-660
|
|
Working diameter of rolls(mm)
|
160
|
250
|
300
|
400
|
450
|
560
|
660
|
|
Working length of rolls(mm)
|
320
|
620
|
750
|
1000
|
1200
|
1530
|
2130
|
|
Front roll surface speed(m/min)
|
8.95
|
14.1
|
15.1
|
18.65
|
24.26
|
27.72
|
28.6
|
|
Friction ratio
|
1:1.35
|
1:1.17
|
1:1.27
|
1:1.27
|
1:1.27
|
1:1.2
|
1:1.24
|
|
Max.nip(mm)
|
4.5
|
8
|
8
|
10
|
15
|
15
|
15
|
|
Capacity per.batch(kg)
|
1-2
|
8-15
|
15-20
|
18-35
|
25-50
|
35-50
|
165
|
|
Motor power
(kw) |
5.5
|
18.5
|
22
|
37
|
55
|
90
|
245
|
|
Overall dimension(mm)
|
1380*860
*1320 |
3400*1500
*1800 |
3580*1550
*1695 |
4350*1850
*1785 |
5200*2380
*1840 |
5845*2284
*1978 |
7465*3662
*2080 |
