Quick Details
-
Control Type:
-
Digital
-
App-Controlled:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NAKKA
-
Model Number:
-
FS45-DC17ARL
-
Power (W):
-
90
-
Voltage (V):
-
110-230v
-
Featured Function:
-
can with WIFI function
-
Product name:
-
DC Stand Fan
-
Function:
-
DC Function
-
Color:
-
Black
-
Style:
-
Commerical
-
Certification:
-
EMC, CB, RoHS, ce
-
Number of Blades:
-
18
Quick Details
-
Type:
-
Air Cooling Fan
-
Wind Speed:
-
More Than Five
-
Remote Control:
-
Yes
-
Control Type:
-
Digital
-
App-Controlled:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NAKKA
-
Model Number:
-
FS45-DC17ARL
-
Power (W):
-
90
-
Voltage (V):
-
110-230v
-
Featured Function:
-
can with WIFI function
-
Product name:
-
DC Stand Fan
-
Function:
-
DC Function
-
Color:
-
Black
-
Style:
-
Commerical
-
Certification:
-
EMC, CB, RoHS, ce
-
Number of Blades:
-
18
Product Description
Specification
|
Product Name
|

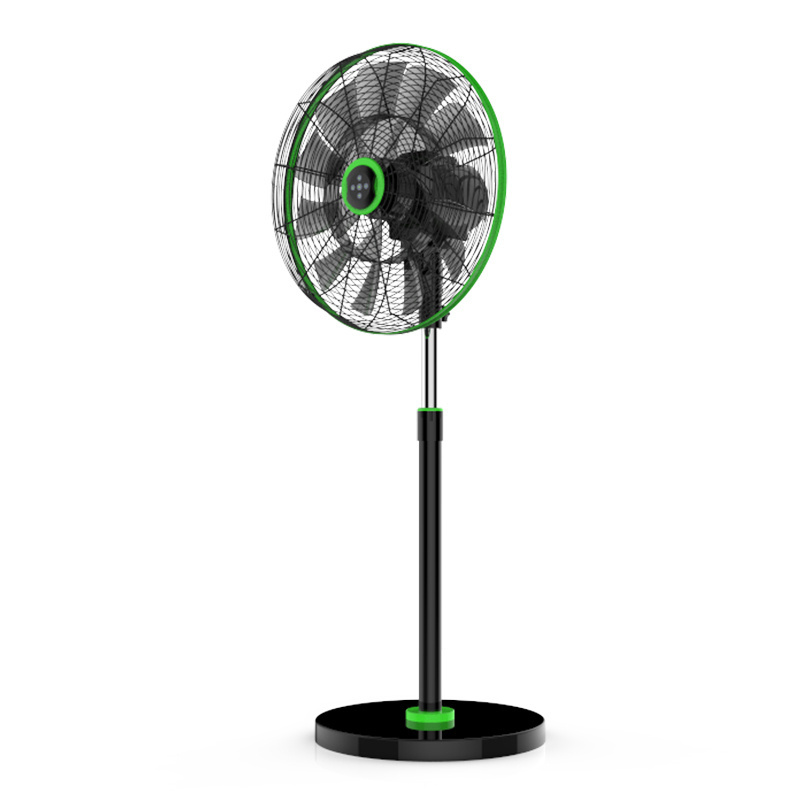

NAKKA 18 inch EC pedestal fan
|
|
Model NO.
|
FS45-DC17ARL
|
|
Certification
|
CE(EMC,LVD,RoHS), ERP,RED, CB
|
|
|
|
|
Electrical Parameter
|
|
|
EC Motor
|
EC motor without Holzer brushless, High performance, Fully sealed, Brushless, 8 speeds, 9 hours timer
|
|
Input
|
220v,50/60Hz
|
|
Maxmum Power
|
3w-90w
|
|
ERP
|
1.92(m³/min)/w
|
|
RPM
|
minimum RPM=200r/min, maximum RPM=850r/min
|
|
Maxmum Air Volume
|
170m³/min,
|
|
Remote Control
|
Hz433 RF， with learning function
|
|
|
|
|
Performance
|
|
|
Grill
|
18 inch 12 lines strong grill with green frame (pass the finger testing )
|
|
Blade
|
18 inch 18 blades design ( lowest noise , max air volume) noise 56db
|
|
Pole
|
cross adjustable pole, diameter is 42mm (the height of the fan is 135cm)
|
|
Base
|
3.5kg plastic pedestal (can past 10" ramp testing )
|
|
Power cord
|
3*0.5mm 100% copper power line( The leakage length of the power line is 1.8m)
|
|
Plug
|
Optional
|
|
|
|
|
Packing info and MOQ
|
|
|
Packing size
|
72*19*52.5 cm , One box one fan ( one 40HQ can load about 910pcs)
|
|
Net Weight
|
9.7kg
|
|
Gross Weight
|
11.6kg
|
|
HS Code
|
8414519200
|
|
MOQ
|
MOQ is 50 pcs ( with NAKKA brand name), MOQ is 300 pcs( with customer's brand name)
|
