100 brand new original YAESU FT-250R, VHF 136-174Mhz Handheld radio ,YAESU FT-250R

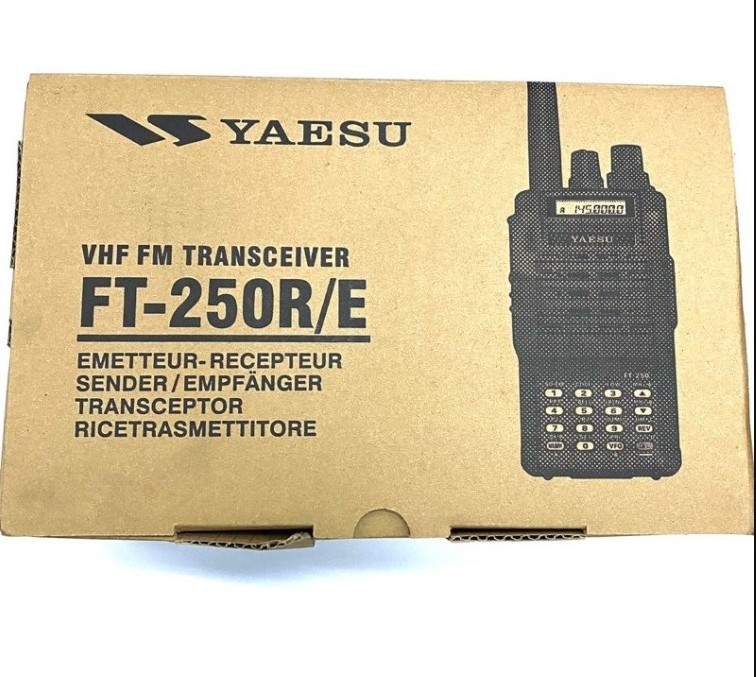

YAESU FT-250R VHF 136-174Mhz Handheld radio

ULTRA COMPACT 5-WATT 144 MHz HANDHELD

Compact yet incredibly rugged, the FT-250R 2-meter handheld is derived from our Vertex commercial transceiver line, providing exceptional receiver performance along with clean, clear transmit audio. Built to withstand the rigors of outdoor use, the 16-key FT-250R is constructed inside a die-cast aluminum housing, with a large, high-output speaker delivering 700 mW of Loud Audio for outside field environments. And the illuminated keypad provides easy viewing during nighttime operation. You need a radio that/'/s as tough as your operating environment; compare the features of the FT-250R to other handhelds, and you’ll see that there is no comparison!

FEATURES

5 Watts Power Output

The FT-250R puts out a maximum of 5 Watts of clean power, with selectable power-saving choices of 2 Watts and ½ Watt also being available with the touch of a front panel key.

Long-life Battery and Desktop Charger

The FT-250R comes complete with a 1400 mAh battery and a desirable desktop charger.

Loud Audio

The FT-250R provides 700mW of Loud Audio and is the perfect choice for noisy enviornments.

Power Saving Circuit Design

The FT-250R includes Yaesu/'/s exclusive power saving circuit design that provides for longer operating time that most other handhelds with comparable batteries.

Direct Keypad Frequency Entry

The FT-250R includes a 16-key keypad, providing both direct frequency entry and fingertip DTMF control on transmission. And a 9-memory DTMF autodialer allows simple access to autopatches or Internet Linking nodes such as the Yaesu WIRES-II system.

209 Memories

The versatile memory system of the FT-250R includes a total of 209 channels that can store frequency, CTCSS/DCS information, repeater shift, and a 7-character alpha-numeric label to aid in channel recognition.

Wide/Narrow Deviation Selection

For operation in narrow-band channel situation, the FT-250R includes both Wide and Narrow deviation selection capability, to ensure compatibility with local operating requirements.

Ultra-Rugged Construction

The FT-250R is tested to meet the exacting requirements of MIL STD 810C/D for shock and vibration. Among the most rugged Amateur hand-helds ever created, the VX-150 is ready for action in the most challenging operating environments!

Specifications

GENERAL

Frequency Range Receive: 136 - 174 MHz

Frequency Range Transmit: 136 - 174 MHz

Channel Steps: 5/10/12.5/15/20/25 & 50 kHz

Standard Repeater Shift: ±600 kHz

Emission Type: F2D, F3E

Supply Voltage: 6.0~16 VDC

Current Consumption: 130 mA (Receive)

8 mA (Auto Power Off)

1300mA (5W)

Case Size: 2.3" W x 4.3" H x 1" D (58x109x27mm)

Weight: 12.4 oz. 352 g. (Approx., w/ant. & battery)



RECEIVER

Circuit Type: Double-conversion superheterodyne

Sensitivity (12dB SINAD): Better than 0.16uV

Adjacent Channel Selectivity: Better than 70 dB

Intermodulation: Better than 70 dB

AF Output: 0.4W @ 8 Ohms for 5% THD (@ 7.2 V)



TRANSMITTER

RF Power Output: 5/2/0.5W (@ 7.2 V DC)

Frequency Stability: Better than ±5 ppm

Modulation Type: Variable Reactance

Maximum Deviation: ±5 kHz

Spurious Emission: Better than 60 dB below carrier

Audio Distortion: Less than 5% (@1 kHz, w/3 kHz deviation)

Microphone Impedance: 2 k Ohm Condenser



*Specifications are subject to change without notice,

and are guaranteed within amateur bands only.
