Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Engraving metal Materials
-
Wavelength:
-
1064nm
-
Laser Pulse Frequency:
-
20-80Khz
-
Beam Quality:
-
<1.6M2
-
Marking Depth:
-
≤0.4MM
-
Repetition Precision:
-
±0.01MM
-
Min. Line Width:
-
0.02MM
Quick Details
-
Engraving Area:
-
110X110mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
≤5000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Engraving metal Materials
-
Wavelength:
-
1064nm
-
Laser Pulse Frequency:
-
20-80Khz
-
Beam Quality:
-
<1.6M2
-
Marking Depth:
-
≤0.4MM
-
Repetition Precision:
-
±0.01MM
-
Min. Line Width:
-
0.02MM
Product Description

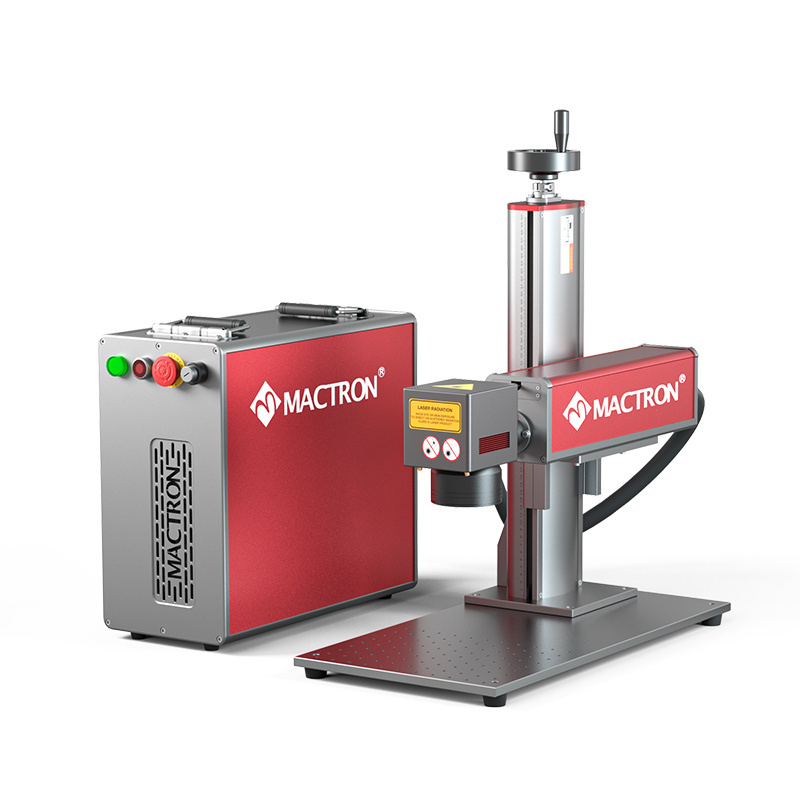

MT-FP series fiber laser marking machine
Equipped with self-developed Macmark software, Germany Siemens electrical system, using built-in DSP chip set and industrial embedded operating system,ensuringsuperior performance,
the equipment is more stable and reliable!
The high quality fiber laser with strong beam quality and high efficiency galvo head with dual red light positioning system for precise positioning. It has the advantages of low consumable, non - toxic and no pollution.
|
Model
|
MT-FP20
|
MT-FP30
|
MT-FP50
|
||
|
Laser Type
|
Q-Switched Pulse Fiber Laser / MOPA Pulse Fiber Laser
|
|
|
||
|
Wavelength (nm)
|
1064
|
|
|
||
|
Laser Power (W)
|
20
|
30
|
50
|
||
|
Pulse Energy (mJ)
|
0.66 / 0.8
|
1 / 0.8
|
1 / 1.25
|
||
|
Repetition Rate (kHz)
|
30-60 / 1-600 or 1-4000
|
|
50-100 / 1-600
|
||
|
Pulse Duration (ns)
|
120-150 / 200 or 2-350
|
|
120-150 / 200
|
||
|
Beam Quality (M2)
|
<1.5 / 1.4
|
<1.6 / 1.5 or 1.4
|
<1.6 / 1.8
|
||
|
Output Power (%)
|
10 - 100
|
|
|
||
|
Marking Specifications
|
Font formats: TTF, JSF, DMF, SHX fonts, etc.
Vector formats: PLT, DST, AI, DXF, SVG, GBR, NC, CAD, CDR, DWG, BOT, etc. Barcode formats: Code39, EAN, PDF417, DATAMATRIX, QR, 2D codes, etc. Bitmap formats: JPC, BMP, JPG, JPEG, PNG, etc. |
|
|
||
|
Speed
|
Up to 8000 mm/s (314.96 in/s)
|
|
|
||
|
Beam Quality (M2)
|
Minimum Line 0.01 mm (0.0004 in)
|
|
|
||
|
Minimum Character
|
0.2 mm (0.008 in)
|
|
|
||
|
Z axis type
|
Manual / Motorized & Programmable (optional)
|
|
|
||
|
Software
|
MacMark / PC software EzCAD (on separate, external, optional Windows OS PC)
|
|
|
||
|
Communication interfaces
|
USB; Terminal block I/O; (standard)
Laser Safety Dedicated I/O; RS232; Ethernet TCP/IP (optional) |
|
|
||
|
Marking Area -
Available lenses |
Standard: F160: 110 mm (4.33 in) x 110 mm (4.33in)
Optional: F100: 70 mm (2.76 in) x 70 mm (2.76 in), F254: 160 mm (6.29 in) x 160 mm (6.29 in) F330: 200 mm (7.87 in) x 200 mm (7.87 in), F450: 300 mm (11.8 in) x 300 mm (11.8 in) |
|
|
||
|
Cooling
|
Air-cooled, auto overheat protection
|
|
|
||
|
Laser safety classification
|
Class 4
|
|
|
||
|
Operating Temperature
|
10°C to 40°C (50F to 104F)
|
|
|
||
|
Humidity
|
10%- 90%, non-condensing
|
|
|
||
|
Electrical Requirements
|
L/N/PE 100 - 240 VAC 50/60Hz ( According to local electricity supply )
|
|
|
||
|
Power consumption rate
|
400 W (800 W Max)
|
|
|
||
|
Machine weight
|
52 Kg (114.64lbs)
|
|
57Kg (125.66 lbs)
|
||
Applicable Materials:
Fiber Laser engraving Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.
Applicable Industry:
widely used in food and beverage,pharmaceutical,tobacco,leather,packaging,building materials,lighting,accessories,cosmetics,electronics components and other sectors of the engraving.
