Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator
Environmental protection equipment 500g large-scale ozone generator

Environmental protection equipment 500g large-scale ozone generator

FOB Reference Price: Get Latest Price
≥1 Sets
US $2830
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
OZOSUPPLIER
Material:
Wooden box
Weight:
95KG
Size:
0.3CBM
Power:
5.0
Productivity:
500G/Hr
Weight (KG):
130 kg
Ozone output:
500G/Hr
Product name:
500G/Hr ozone spare parts
Application:
All kinds of water treatment
Ozone concentration:
50-120Mg/L under pure oxygen
Cooling method:
By air and water
Ozone housing material:
SS304

Quick Details

Applicable Industries:
Water treatment
Core Components:
Ozone cell, High voltage transformer, Ozone electric card
Place of Origin:
Guangdong, China
Brand Name:
OZOSUPPLIER
Material:
Wooden box
Weight:
95KG
Size:
0.3CBM
Power:
5.0
Productivity:
500G/Hr
Weight (KG):
130 kg
Ozone output:
500G/Hr
Product name:
500G/Hr ozone spare parts
Application:
All kinds of water treatment
Ozone concentration:
50-120Mg/L under pure oxygen
Cooling method:
By air and water
Ozone housing material:
SS304
Environmental protection equipment 500g large-scale ozone generator
Product Description
Features:
1. The ozone discharge chamber inside combined with several groups of ozone discharge tubes, called Honeycomb structure design;
2. The inner and outer electrodes both by SS316L material, housing with SS304;
3. High purity silica quartz tube;
4. High ozone concentration: ozone concentration can be up to 150Mg/L under pure O2, 10-25Mg/L under dry air;
5. High quality power supply to ensure life time and stable ozone capacity;
6. Accept with PLC control, with 0-10V or 4-20mA signal output.

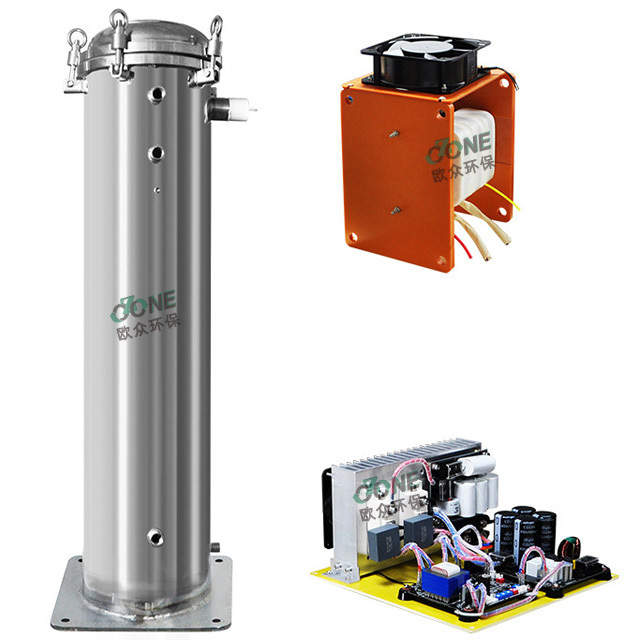

7. Three parts included: ozone discharge chamber, high voltage transformer, ozone electric card.
Features for high-voltage power supply: Military-grade variable-frequency and variable-voltage PCB circuit and vacuum epoxy high-voltage package;
IGBT drive, auto/manual bandwidth, slow start, (limiting surge current), over-voltage protection, converter overheating protection, output short circuit and open circuit protection, sound and light warning.
Three proofings design.
It can be flexibly adapted to PLC control or customized.
Normally life time is >12,000 hours.




Ozonedischarge chamber
ozone discharge chamber inside combined with several groups of ozone discharge tubes;
High purity silica quartz tubes;
Inner and outer electrodes both with SS316L;
By water cooling.

GO-AQ 100G
GO-AQ 200G

GO-AQ 300G

GO-AQ 400G-500G

Specification
item
Water cooled quartz ozone generator
Model
GO-AQ 500G
Ozone concentration by pure O2
50Mg/L - 150Mg/L
Ozone concentration by dry air
10Mg/L - 25Mg/L
Power
4.0-5.0Kw
Water inlet/outlet size
1/2''
High voltage transformer size
230*180*230mm
PCB size
310*320*160mm
Ozone discharge chamber size
300*300*1410mm
Core Components
Ozone cell, High voltage transformer, Ozone electric card
Brand Name
OZOSUPPLIER
Size
0.3CBM
Warranty
1 Year
Ozone housing material
SS304
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
