Quick Details
-
Type:
-
Camera Power Supply
-
Input:
-
110/220VAC, 50/60Hz
-
Output Channels:
-
1
-
Output:
-
12VDC
-
Output Current:
-
10 Amp
-
Fuses:
-
PTC
-
Protections:
-
Over Voltage, Over Current, Short-circuit Protection
-
Application:
-
CCTV Surveillance Security System
-
Product Description:
-
CCTV Surveillance Security Camera Power Supply
-
Efficiency:
-
≥80%
-
Certificates:
-
CE, RoHS, FCC, IEC60950-1
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chinasky, OEM
-
Model Number:
-
12VDC10A1P/B
-
Type:
-
Camera Power Supply
-
Input:
-
110/220VAC, 50/60Hz
-
Output Channels:
-
1
-
Output:
-
12VDC
-
Output Current:
-
10 Amp
-
Fuses:
-
PTC
-
Protections:
-
Over Voltage, Over Current, Short-circuit Protection
-
Application:
-
CCTV Surveillance Security System
-
Product Description:
-
CCTV Surveillance Security Camera Power Supply
-
Efficiency:
-
≥80%
-
Certificates:
-
CE, RoHS, FCC, IEC60950-1

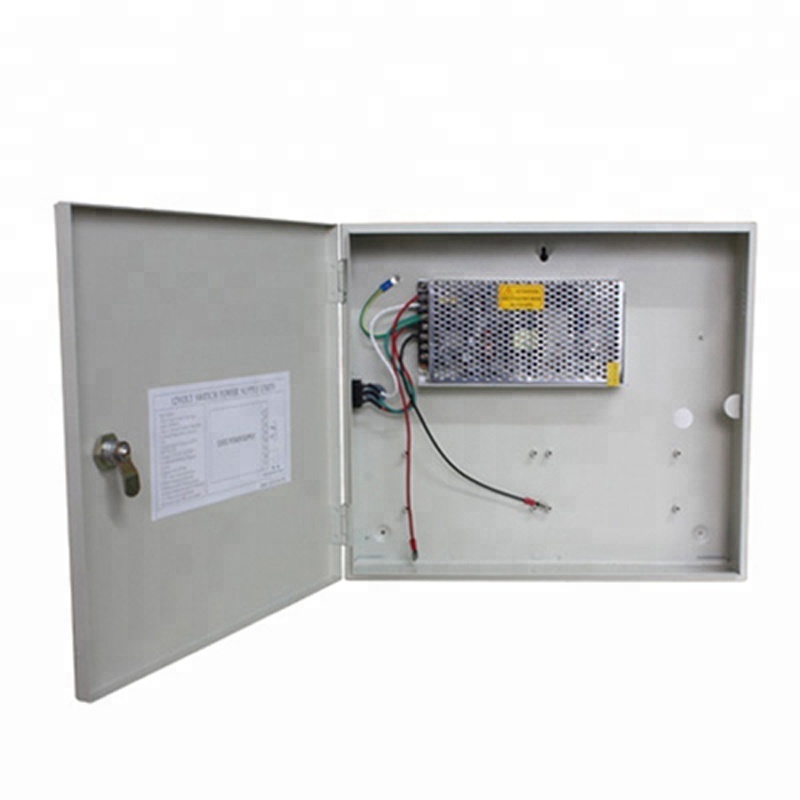

120W CCTV Camera Power Supply with Battery Backup (12VDC10A1P/B)
120W CCTV Camera Power Supply with Battery Backup (12VDC10A1P/B)
12VDC10A1P/B: 12VDC 10Amp 1 Channel Power Store with Battery Back-up
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.
Features:
1. 12 Volt DC 10Amp switch mode power supply
2. 1 Channel output
3. Backup battery: 12V 7AH
4. Charging Current: 350mA
5. Soft starting current, effectively reduce the impact of AC input, independent short-circuit protection and surge protection, resume automatically after clearing of fault, EMI filter, minimum ripple, 100% load test, quality guarantee, high efficiency, low T-rise, continuous duty
Technical specifications:
|
Model |
12VDC10A1P/B |
|
|
Power |
120 W |
|
|
Metal Case Dimension |
37.7×33.2×8.2 cm |
|
|
Net Weight |
3.45 kgs |
|
|
Input |
Input Voltage |
110/220 VVAC |
|
Input Voltage Frequency |
50Hz-60Hz |
|
|
Output
|
12VDC±5% |
|
|
Output Current |
10A |
|
|
Output Ripple Noise(Vp-p) |
110 mVp-p@25℃/ Rated input voltage & Rated output load |
|
|
Reply Time of Starting up |
≤3S Input 100Vac, Rated output load |
|
|
Fuse |
Type /Rating |
PTC 1.6 A/60V |
|
Protection |
Over Current Protection |
Over current point 10 ~ 11A |
|
Short-circuit Protection |
When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically. |
|
|
Charge |
The power supply will automatically switch to storage battery if there is outage. |
|
|
Circumstances |
Working Temperature |
0℃-+ 50 ℃ |
|
Storage Temperature |
-20℃-+ 80 ℃ |
|
|
RH |
20%-90 % |
|
|
Heat Release |
Natural heat dissipation |
|
|
Connection |
Input |
Three-pin socket |
|
Output |
1 channel output |
|
|
Dielectric Strength |
Input to output |
1500Vac/60S leakage current≤1.5mA |
|
Input to FG |
1500Vac/60S leakage current≤2.0mA |
|
|
FG to output |
500Vac/60S leakage current≤1.5mA |
|
|
Insulating strength |
Input to output |
≥20MΩ/500VDC@25℃ |
|
Leakage Current |
≤ 0.02 mA @AC110V(220V)/25℃ |
|
|
RG |
≤ 0.012 Ω@DC8V/25A/25℃ |
|
|
Packaging Details |
Inner Paper Box Size: 40*34*9cm Outer Carton Size: 40.5*35*47cm Packing rate: 5 PCS/CTN |
|
