Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
9.4m*1.2m*1.6m
-
Application:
-
wood cutting, woodworking, Wood block cutting, Wood pallet making
-
Weight (KG):
-
1600 KG
-
Power (kW):
-
12.5kw
-
Name:
-
Cut-off saw
-
Product name:
-
Wood Saw Wood Cut
-
Keyword:
-
Automatic Cutting Saw Machine
-
After-sales Service Provided:
-
Engineers
-
Function:
-
Wood Cuttiing
-
Application Wood:
-
Hardwood
-
Cutting material:
-
Wood Sheets
-
KEY WORDS:
-
Cutting machines wood
-
Other name:
-
Cut wood machine
-
Model:
-
SF6060
Quick Details
-
Type:
-
cut off saw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Saifan
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
9.4m*1.2m*1.6m
-
Application:
-
wood cutting, woodworking, Wood block cutting, Wood pallet making
-
Weight (KG):
-
1600 KG
-
Power (kW):
-
12.5kw
-
Name:
-
Cut-off saw
-
Product name:
-
Wood Saw Wood Cut
-
Keyword:
-
Automatic Cutting Saw Machine
-
After-sales Service Provided:
-
Engineers
-
Function:
-
Wood Cuttiing
-
Application Wood:
-
Hardwood
-
Cutting material:
-
Wood Sheets
-
KEY WORDS:
-
Cutting machines wood
-
Other name:
-
Cut wood machine
-
Model:
-
SF6060
Product Description
Feature

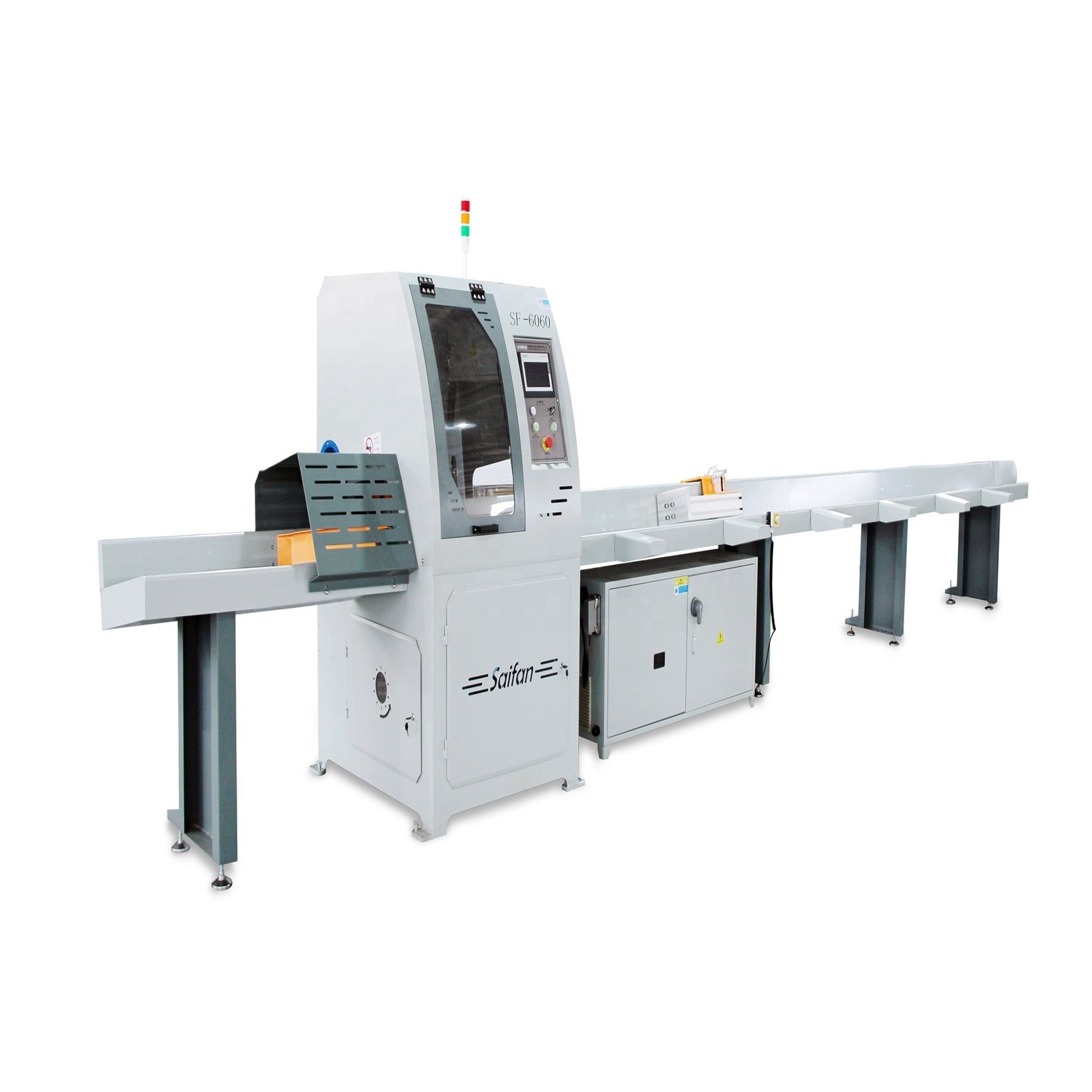

This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
It contains cutting program, input parameters from the Siemens PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Product Parameter
|
Name
|
Wood Cross Cut Off Saw
|
|
|
||
|
Model
|
SF6045
|
SF6060
|
|
||
|
Saw blade diameter
|
450mm
|
600mm
|
|
||
|
Feeding table length
|
2m/ 4m/ 6m
|
|
|
||
|
Max. Feeding length
|
2.1m/4.1m/6.1m
|
|
|
||
|
Out-feeding table length
|
1.2m
|
|
|
||
|
Cutting thickness
|
10-120mm
|
|
10-140mm
|
||
|
Cutting width
|
30- 200mm
|
|
30-300mm
|
||
|
Cutting section
Thickness*width |
Max. 120*150mm
Max. 100*200mm
|
|
Max.150*280mm
Max. 140*300mm
|
||
|
Feeding speed
|
5-30m/min
|
|
|
||
|
Saw spindle diameter
|
30mm
|
|
30mm
|
||
|
Cutter spindle rotation speed
|
3000rpm
|
|
3150rpm
|
||
|
Servo drive motor power
|
0.75kw
|
|
1kw
|
||
|
Cutting motor power
|
7.5kw
|
|
11kw
|
||
|
Total power
|
8.5kw
|
|
12.5kw
|
||
|
Voltage
|
380v 50hz 3phase
|
|
|
||
|
Pressing method
|
Cylinder, air pressure 0.5-0.7Mpa
|
|
|
||
|
Cutting tolerance
|
In +/-1mm
|
|
|
||
|
Machine working dimension
Length*width*height |
5.4m*1.2m*1.6m (2m model)
7.4m*1.2m*1.6m (4m model)
9.4m*1.2m*1.6m (6m model)
|
|
|
||
|
Machine weight
|
1200-1400kg
|
|
|
||
|
Dust collection port
|
100mm*2pc
|
|
|
||
|
Electrical components
|
Schneider
|
|
|
||
|
PLC Touching screen
|
Siemens
|
|
|
||
Detailed Images
Control cabinet
Siemens PLC and touch screen, in 4 languages Chinese English Spanish Russia.
Other language is also ok, if you can translate for us.
Program
Measure the raw material length, then can input 8 different size and quantity, or input one size only, machine can work automatically.
Pusher
Servo feeding pusher, material aluminum alloy, reliable and long life
Feeding table
2m 4m 6m length for your choice, slanted table thus wood can align to the fence more easier
Electric cabinet
Door with safety switch
Safety cover
Door with safety switch
Pressing system
Pneumatic pressing boards, front side 1pc, top 1pc, rear side 1pc, ensure smooth cutting.
Sensors
IFM sensors to detect the wood length
Magnetic start button
Can put anywhere of the machine, anywhere convenient to the operator.
Separate saw blade station
Replace saw blade convenient and safe.
Dust Collection Port
2 pcs 100mm diameter dust collection port, strong ability to output the sawdust.
Left feeding
Can make to left feeding
Final Product
