Quick Details
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H510&B560
-
Place of Origin:
-
Guangdong, China
-
Ports::
-
wifi, SATA, VGA, USB 2.0, Ethernet, USB 3.0, HDMI
-
Condition::
-
4SATA, SATA 3
-
CPU Type::
-
Core I7/Core I5/Core I3/Pentium/Celeron, Intel Core i7
-
Application::
-
Desktop
-
Form Factor::
-
Thin Mini-ITX
-
Network::
-
Realtek RTL8111H Gigabit chip
-
CPU Platform::
-
Intel LGA1200 10/11 Gen CPU TDP:65W
-
Maximum Ram Capacity::
-
64 GB
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Desktop
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H510&B560
-
Place of Origin:
-
Guangdong, China
-
Ports::
-
wifi, SATA, VGA, USB 2.0, Ethernet, USB 3.0, HDMI
-
Condition::
-
4SATA, SATA 3
-
CPU Type::
-
Core I7/Core I5/Core I3/Pentium/Celeron, Intel Core i7
-
Application::
-
Desktop
-
Form Factor::
-
Thin Mini-ITX
-
Network::
-
Realtek RTL8111H Gigabit chip
-
CPU Platform::
-
Intel LGA1200 10/11 Gen CPU TDP:65W
-
Maximum Ram Capacity::
-
64 GB
Product Description
|

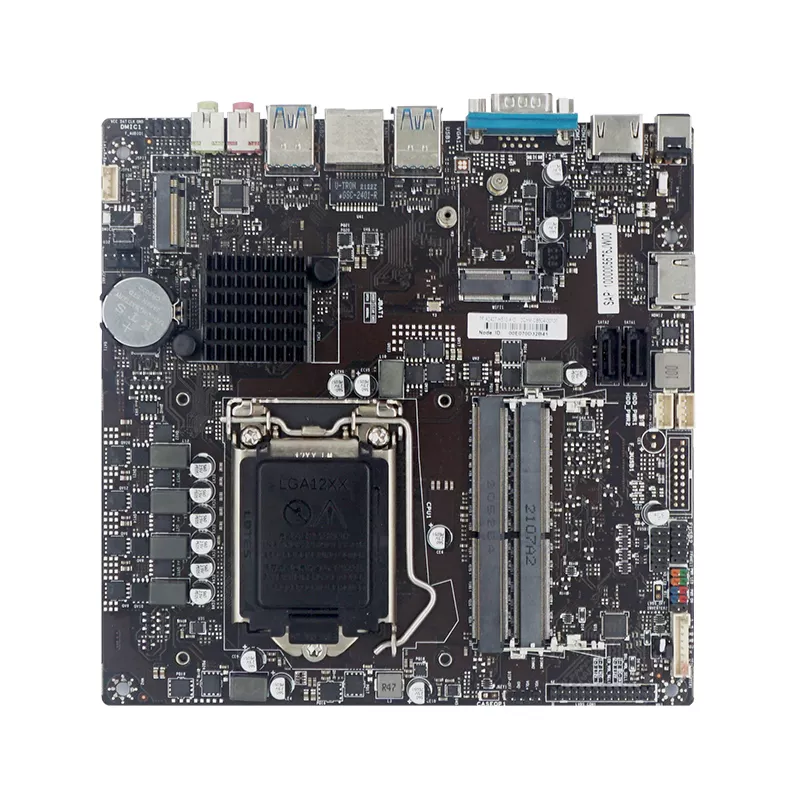

Motherboard
|
|
|
|
|||
|
Chipset
|
Intel H510&B560
|
|
|
|||
|
Audio
|
Realtek ALC662HD Audio IC
|
|
|
|||
|
Network
|
Realtek RTL8111H Gigabit chip
|
|
|
|||
|
CPU Spec
|
|
|
|
|||
|
CPU Type
|
Intel Core i7/Core i5/Core i3/Pentium
|
|
|
|||
|
CPU Platform
|
|
|
Intel LGA1200 10/11 Gen CPU TDP:65W
|
|||
|
Ram
|
|
|
|
|||
|
Ram
|
|
|
DDR4 2400MHz/2666MHz/2933MHz Max:64G
|
|||
|
Ramslot
|
|
|
2×DDR4 SO-DIMM
|
|||
|
Expansion slot
|
|
|
|
|||
|
WiFi
|
|
|
1×M.2 2230（support WIFI/BT/CNVI）
|
|||
|
SSD
|
|
|
1×M.2 2280（support SATA/NVME Switch mode）
|
|||
|
I/O interface
|
|
|
|
|||
|
Input port
|
|
|
1×DC Power (12-19V)
|
|||
|
Display Port
|
|
|
1×HDMI、1×HDMI（Slide Out）1×VGA
|
|||
|
Network
|
|
|
1×RJ45
|
|||
|
USB port
|
|
|
4×USB3.0
|
|||
|
Audio
|
|
|
1×OUT、1×MIC
|
|||
|
Plug-in Spec
|
|
|
|
|||
|
LVDS
|
|
|
1×LVDS(30Pin 2.0mm)pin、1×LCD_VOL_SEL Display voltage Jumper (5V/12V)
1×JKEY 4PIN Panel function Pin(turn off display 、Volume +/-)、 1×LVDS_OFF 2PIN |
|||
|
LCD
|
|
|
1×INVERTER(Oppotional 8PIN backlight +/-)、1×BKL_VOL Backlight voltage jumper(12V/19V)
|
|||
|
Hard disk socket
|
|
|
2×SATA3.0、2×SATA Power interface
|
|||
|
USB Socket
|
|
|
H510:2×Dual-row USB2.0 Pin
B560:2×Dual-row USB2.0 Pin、1×Dual-row USB3.0 Pin |
|||
|
Audio Pin
|
|
|
1×AUDIO Audio Pin、1×SPEAK Port、1×D-MIC Pin(optional)
|
|||
|
Onboard Pin
|
|
|
1×FPANEL Panel Pin、1×4PIN CPU Fan
|
|||
|
BIOS function
|
|
|
1×JBAT Pin、1×JBIOS Burning Pin
|
|||
|
Other function
|
|
|
2×SATA/NVME SSD Mode plug switch、1×Case Open(optional )、 1×JCOM(optional)
|
|||
|
Other Spec
|
|
|
|
|||
|
Dimension
|
|
|
Thin Mini-ITX 170mm(W)×170mm(L)
|
|||
|
BIOS support
|
|
128M flash ROM，AMI UEFI BIOS，PC Health，WOL
|
|
|||
|
Packing
|
|
|
|
|||
|
Packing List
|
|
Motherboard ×1 （carton ：20PCS）
|
|
|||
Packing&Shipping
Super secure packaging
zero damage in transit
