1. Municipal project, subway, underground and roof waterproofing
2. Landfill, wastewater treatment, industrial waste
3. Waterproofing and reinforcement in water conservancy, river lake, and dam
4. Artificial lake, golf course, and fish pond
5. Petrifaction and mineral waterproofing Specification
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sdmarlboro
-
Model Number:
-
SDM104
-
Type:
-
Geocomposite
-
Product name:
-
Geosynthetic Clay Liner (GCL)
-
Gram weight:
-
4000/sqm~6000/sqm
-
Roll width:
-
1m-6m (Customized)
-
Roll Length:
-
20m-40m(Customized)
-
Certification:
-
CE/ISO
-
Material:
-
Geotextile+Sodium Bentonite+Non woven fabric
-
Package:
-
PP woven bags or waterproof bags
-
Manufacturer:
-
Sdmarlboro
-
MOQ:
-
20'GP
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sdmarlboro
-
Model Number:
-
SDM104
-
Type:
-
Geocomposite
-
Product name:
-
Geosynthetic Clay Liner (GCL)
-
Gram weight:
-
4000/sqm~6000/sqm
-
Roll width:
-
1m-6m (Customized)
-
Roll Length:
-
20m-40m(Customized)
-
Certification:
-
CE/ISO
-
Material:
-
Geotextile+Sodium Bentonite+Non woven fabric
-
Package:
-
PP woven bags or waterproof bags
-
Manufacturer:
-
Sdmarlboro
-
MOQ:
-
20'GP
Shandong Sdmarlboro New Material Technology Co., Ltd. is located in the famous root of Mount Tai-Tai'an City, Shandong Province. The geographical position is superior and the transportation is convenient. Is a high-quality supplier of geosynthetics. The main products are as follows: geomembrane, geotextile, geogrid drainage net, etc. Shandong Sdmarlboro has been committed to the research, development, production, sales and installation of geosynthetics for many years. Professional design, manufacture and installation of geomembrane liners, the product has a wide range of applications, you can refer to the following diagrams, such as construction industry, water storage engineering, road infrastructure, energy and environmental protection projects. The products are continuously exported to Thailand, Chile, the Philippines, Indonesia, Kenya, Ecuador, Mexico and other countries, and are well received by users.
Black Pond Liner Fish Farm Basement Waterproofing Blanket Geosynthetic Clay Liner GCL
Geosynthetic Clay Liners is called bentonite composite waterproof blanket (GCL), also known as bentonite waterproof blanket,waterproof mat, GCL waterproof mat and other bentonite composite waterproof blanket (GCL) which is a new type of geosynthetic material. It is a blanket waterproofing membrane made by mixing the natural sodium-based bentonite particles and the corresponding admixtures into raw materials, and fixing the bentonite particles between the geotextile and the plastic woven fabric through a needle punching process and equipment. The bentonite waterproof blanket has all the characteristics of geotechnical materials and excellent waterproof (permeability) properties.
Application
GCL Simple construction and easy maintenance
Simple construction
:

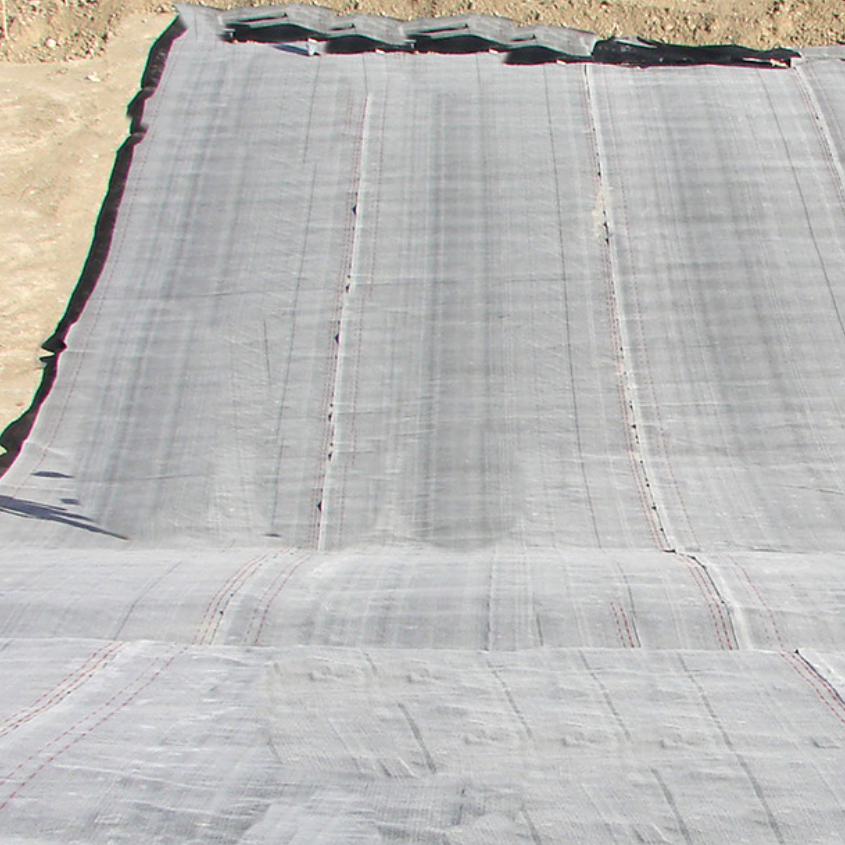

It has all the characteristics of geotextile materials, such as separation, reinforcement, protection, filtration, etc. It is easy to construct and is not restricted by the construction environment temperature. It can also be constructed below 0°C. Only need to spread the GCL waterproof blanket on the ground during construction, fix it with nails and washers during vertical or inclined construction, and stack it as needed.
Easy to repair:
Even after the anti-seepage construction is over, if the waterproof layer is accidentally damaged, as long as the damaged part is simply repaired, the perfect waterproof performance can be restored.
|
Geotextile layers
|
|
|
||
|
Geotextile of cover layer (non-woven geotextile)
|
g/m2
|
200
|
||
|
Geotextile of carrier layer (woven geotextile,PP)
|
g/m2
|
110
|
||
|
HDPE layer
|
|
|
||
|
HDPE geomembrane
|
mm
|
0.2
|
||
|
Bentonite layer
|
|
|
||
|
Type
|
-
|
Sodium bentonite
|
||
|
Mass per unit area
|
g/m2
|
≥4500
|
||
|
Swell index
|
ml/2g
|
≥24
|
||
|
Fluid Loss
|
ml
|
≤18
|
||
|
Geosynthetic Clay Liner
|
|
|
||
|
Mass per unit area
|
g/m2
|
≥4800
|
||
|
Tensile strength
|
N/100mm
|
≥700
|
||
|
Elongation at break
|
%
|
≥10
|
||
|
Peel strength (nowoven geotextile-woven geotextile)
|
N/100mm
|
≥40
|
||
|
Peel strength (nowoven geotextile-PE film)
|
N/100mm
|
≥30
|
||
|
Permeability
|
m/s
|
≤5.0×10-11
|
||
About company
Sdmarlboro has multiple production bases, a sales department dedicated to you, and a construction team with many years of construction experience. We take customer satisfaction as our goal, and based on the principle of win-win cooperation, we welcome friends from all over the world to visit our company in Tai'an, Shandong. We are willing to work with you to create a better future.
