Quick Details
-
Dimension(L*W*H):
-
Customization
-
Weight:
-
127000 KG
-
Silo Life:
-
25-40 Years
-
Discount:
-
5% or more
-
After sale:
-
24 o'clock online, feel free to answer at any time
-
Quality:
-
ISO9001/ISO45001/ISO14001/CE
-
WhatsApp:
-
+86 13598071775
-
Delivery date:
-
On-time delivery rate of 100%
-
Capacity:
-
10-10,000 tons can provide
-
Bottom Type:
-
Hopper/Flat bottom
-
Usage:
-
grain/feed/pellet/soybean meal storage
Quick Details
-
Core Components:
-
Steel Plate
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HKB
-
Dimension(L*W*H):
-
Customization
-
Weight:
-
127000 KG
-
Silo Life:
-
25-40 Years
-
Discount:
-
5% or more
-
After sale:
-
24 o'clock online, feel free to answer at any time
-
Quality:
-
ISO9001/ISO45001/ISO14001/CE
-
WhatsApp:
-
+86 13598071775
-
Delivery date:
-
On-time delivery rate of 100%
-
Capacity:
-
10-10,000 tons can provide
-
Bottom Type:
-
Hopper/Flat bottom
-
Usage:
-
grain/feed/pellet/soybean meal storage

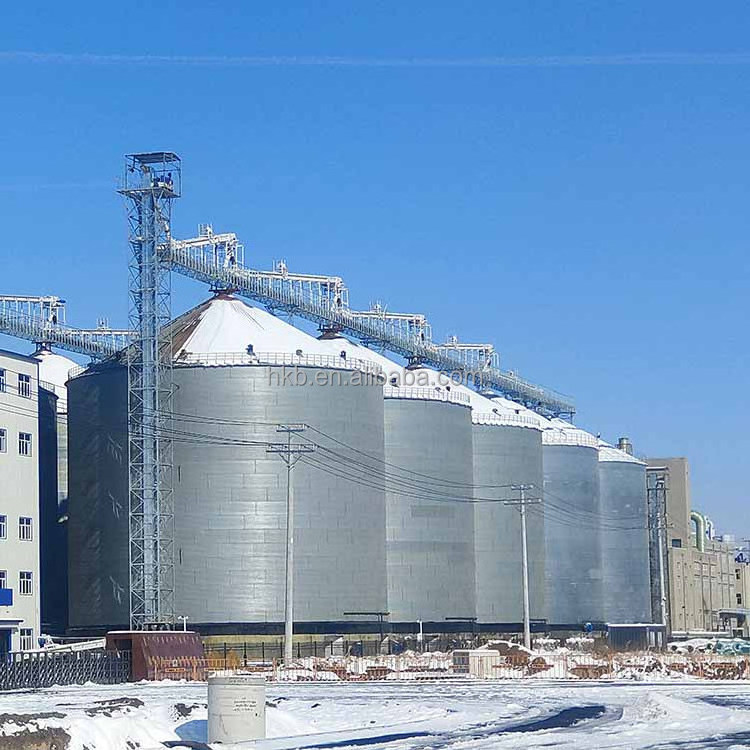

China Top Supplier Hopper Bottom Grain Silo
- Provide an integrated grain storage system, include grain receiving, cleaning, drying, safety storage, distribution, and electric control system.
- Provide EPC solution for bulk material storage used in commercial center, food processing, depot, port, etc. industry.
- Rich experience for an overseas project, one-stop service from design to site construction.
- Built projects in Thailand, Tanzania, Uganda, Philippines, Malaysia, Vietnam, Kenya, Nigeria, Ecuador, Cyprus, etc.
- Technology is the base of development, quality is the reason for existence, credit for friends overseas, present scientifically advanced silo projects for user profit.
HKB Grain Silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.
What you can get from HKB -- Grain Storage Silo Turn-key Solution :
- Engineering design: be scientific, be flexible, be economical, be practical.
- Solid silo and steel structure, high-quality handling equipment, high efficient drying system.
- Our professional package service including protective equipment package, transportation, customs clearance.
- Experience overseas site construction for project success landed, quality warranty till final acceptance test.
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 0.75kg/m3, and surely HKB customizes silo systems unique for you.
| Most Popular Hopper Bottom Steel Silo Technical Specifications | ||||||||
| Capacity | 50Ton | 100Ton | 150Ton | 200Ton | 300Ton | 500Ton | 1000Ton | 1500Ton |
| Model |
TCZK 03605 |
TCZK 04507 |
TCZK 05507 |
TCZK 06406 |
TCZK 07307 |
TCZK 07313 |
TCZK 11010 |
TCZK 12811 |
| Diameter(m) | 3.667 | 4.584 | 5.500 | 6.417 | 7.334 | 7.334 | 11.000 | 12.834 |
| Total Height(m) | 9.56 | 12.53 | 13.25 | 12.85 | 14.70 | 21.42 | 20.95 | 23.51 |
|
Volume(m³) Density:0.75ton/m³ |
69 | 150 | 222 | 273 | 415 | 699 | 1346 |
2039 |
| Most Popular Flat Bottom Steel Silo Technical Specifications | ||||||||
| Capacity | 1000Ton | 1500Ton | 2000Ton | 2500Ton | 3000Ton | 5000Ton | 8000Ton | 10000Ton |
| Model |
TCK 10014 |
TCK 11915 |
TCK 13715 |
TCK 15514 |
TCK 15518 |
TCK 18321 |
TCK 24718 |
TCK 25621 |
| Diameter(m) | 10.084 | 11.918 | 13.750 | 15.584 | 15.584 | 18.334 | 24.751 | 25.668 |
| Total Height(m) | 18.69 | 20.34 | 20.87 | 20.30 | 24.78 | 28.60 | 26.99 | 30.60 |
|
Volume(m³) Density: 0.75ton/m³ |
1335 | 2009 | 2701 | 2467 | 4145 | 6693 | 10879 | 13484 |
1- Roof Top:
The roof is designed to stand up even the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
2- Body Steel Plate:
A commercial 275g/m2 double galvanized steel coating increases life and durability. 450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that can overcome extreme power, pressure.
3- Stiffeners:
HKB’s high tension stiffener(can be located inside or outside the silo,) profiles make bins stronger allowing silos to stand well even under an extreme hurricane. Base stiffener boots are coated so they won’t rust over time.
4- Wind Ring:
For tall silos or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; Swaged technology ensure silo power load capacity.
5- High strength bolts and screws:
HKB’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain bin stands the test of time.
6- Manhole:
Double layer security locking manhole system.
7- Wide Flange H Beam Support Structure:
The wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads for a long time, and with consideration of wind and seismic requirements.
Optional Accessories
Starting from the initial project analysis, to develop your custom grain silo system plan and to the final turnkey completion of the project, HKB’s engineers will stand together with you to get the best matching profitable solution.
Henan Haokebang Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger and other accessories to meet the diverse needs of customers.
Silo Installation
HKB’s own installation engineers team plays a respectable role in the success high-performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under strict and standardized installation management system, thorough installation cross-checking rules, and they promise one-time project acceptance.
After-Sale Service
- HKB provides advanced grain safety storage technology to assure your grain 100% quality stability.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long-lasting safety and reliability.
- HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the silo system well.
HKB silo have passed many certifications, attracting customers from all over the world with efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda , Colombia, Thailand, Philippines, Zimbabwe, Kenya and other countries and regions.
Standing on our strong integral solution design power, HKB’s s rich manufacturing expertise guarantees the best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. The introduction of advanced laser cutting machine, intelligent CNC robot and silo hoarding forming machine ensures that the steel plate is cut accurately and efficiently, the incisions are flat and beautiful, the silo has high strength, good seismic performance and long service life.
1. Factory price and perfect after-sales service.
2. Alibaba assessed gold supplier .
3. Professional engineers and sales team issue design drawings according to your needs to solve your grain storage problems.
4. 100% QC inspection before shipping.
5. Cases in many countries.
6. Foreign 48 hours to provide solutions
7. Professional overseas installation team .
8. From grain cleaning, drying to storage, HKB creates one stop service for you.
