- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Wired
-
Brand Name:
-
original
-
Place of Origin:
-
Beijing, China
-
Device Type:
-
Router
-
Enclosure Type:
-
Rack-mountable - modular - 1U
-
Data Link Protocol:
-
Ethernet, Fast Ethernet, Gigabit Ethernet
-
Performance:
-
Aggregate throughput : 200 Mbps
-
Network / Transport Protocol:
-
IPSec, PPPoE, DHCP
-
Installed Size:
-
8 GB
-
RAM:
-
4GB
-
Nominal Voltage:
-
AC 120/230 V
-
Dimensions (WxDxH):
-
43.815 cm x 50.72 cm x 4.39 cm
-
Weight:
-
8.4 kg
Quick Details
-
Max. LAN Data Rate:
-
1000Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
NO
-
Type:
-
Wired
-
Brand Name:
-
original
-
Place of Origin:
-
Beijing, China
-
Device Type:
-
Router
-
Enclosure Type:
-
Rack-mountable - modular - 1U
-
Data Link Protocol:
-
Ethernet, Fast Ethernet, Gigabit Ethernet
-
Performance:
-
Aggregate throughput : 200 Mbps
-
Network / Transport Protocol:
-
IPSec, PPPoE, DHCP
-
Installed Size:
-
8 GB
-
RAM:
-
4GB
-
Nominal Voltage:
-
AC 120/230 V
-
Dimensions (WxDxH):
-
43.815 cm x 50.72 cm x 4.39 cm
-
Weight:
-
8.4 kg

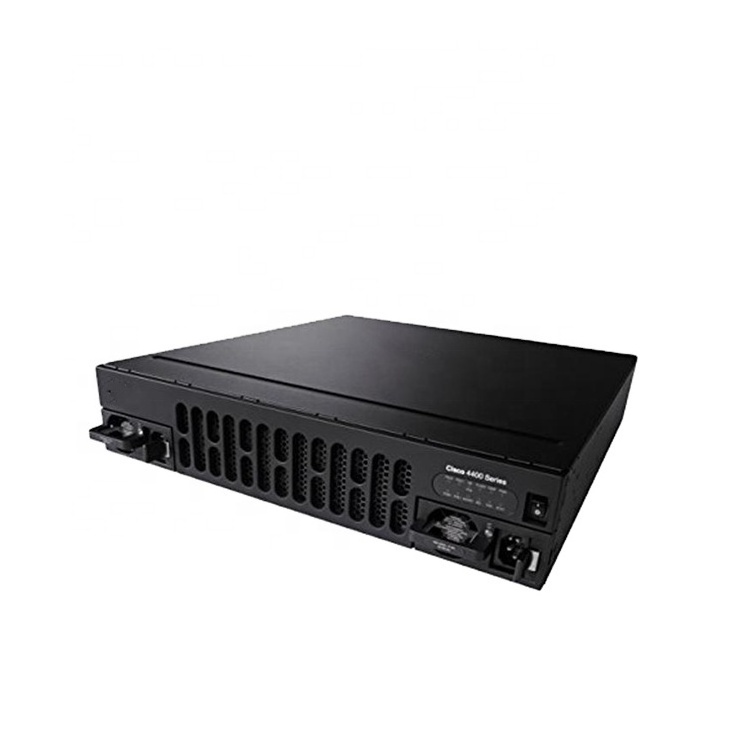

Managed Integrated Services Router ISR4431/K9
|
Environmental Parameters
|
|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
|
Interface Provided
|
|
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty | 2 |
| Type | Management |
| Connector Type | SFP (mini-GBIC) |
|
Miscellaneous
|
|
| Rack Mounting Kit | Included |
| Compliant Standards | AS/NZS 3548 Class A, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438, CS-03, EN 60950-1, EN 61000, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, KN22, KN24, R&TTE, UL 60950-1, VCCI V-3 |
| Height (Rack Units) | 1 |
| Color Category | Black |
|
Networking
|
|
| Type | Router |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | RMON, SNMP |
| Compliant Standards | ANSI T1.101, IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, ITU-T G.823, ITU-T G.824 |
| Features | Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), IPFIX, IPv6 support, NetFlow, Quality of Service (QoS), RADIUS support, Syslog support, VLAN support, VPN support, Wall mountable, Weighted Random Early Detection (WRED) |
| Network Transport Protocol | DHCP, IPSec, PPPoE |
| Routing Protocol | BGP, DVMRP, EIGRP, GRE, IGMPv3, IPv4-to-IPv6 Multicast, IS-IS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing |
| Modular | Modular |
| Form Factor | Rack-mountable |
| WAN Ports Qty | 4 |
| Key Features | USB port, VPN support |
|
OS Provided
|
|
| Type | IOS IP Base |
|
Performance
|
|
| Type | Aggregate throughput |
| Value | 500 Mbps |
|
Power Device
|
|
| Frequency Required | 50/60 Hz |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Type | Internal power supply |
| Hot-Plug | Hot-plug |
|
RAM
|
|
| Installed Size | 4 GB |
| Max Supported Size | 16 GB |
| Technology | DDR3 SDRAM |
|
Flash Memory
|
|
| Installed Size | 8 GB |
| Max Supported Size | 32 GB |
| Dimensions (WxDxH) | 43.815 cm x 50.72 cm x 4.39 cm |
| Weight | 8.4 kg |
1 . Condition: All the items are 100 % Original.
.
2 . The Fastest Delivery: We ensure you that we can fast ship the equipment upon your confirmation.
3 . The Best Service: certified sales engineers are here to offer presales suggestion and solve the problems of installation.
4 . The Highest Quality: All equipment is fully tested and authenticated byCCIE engineers and provided 1 year warranty.
