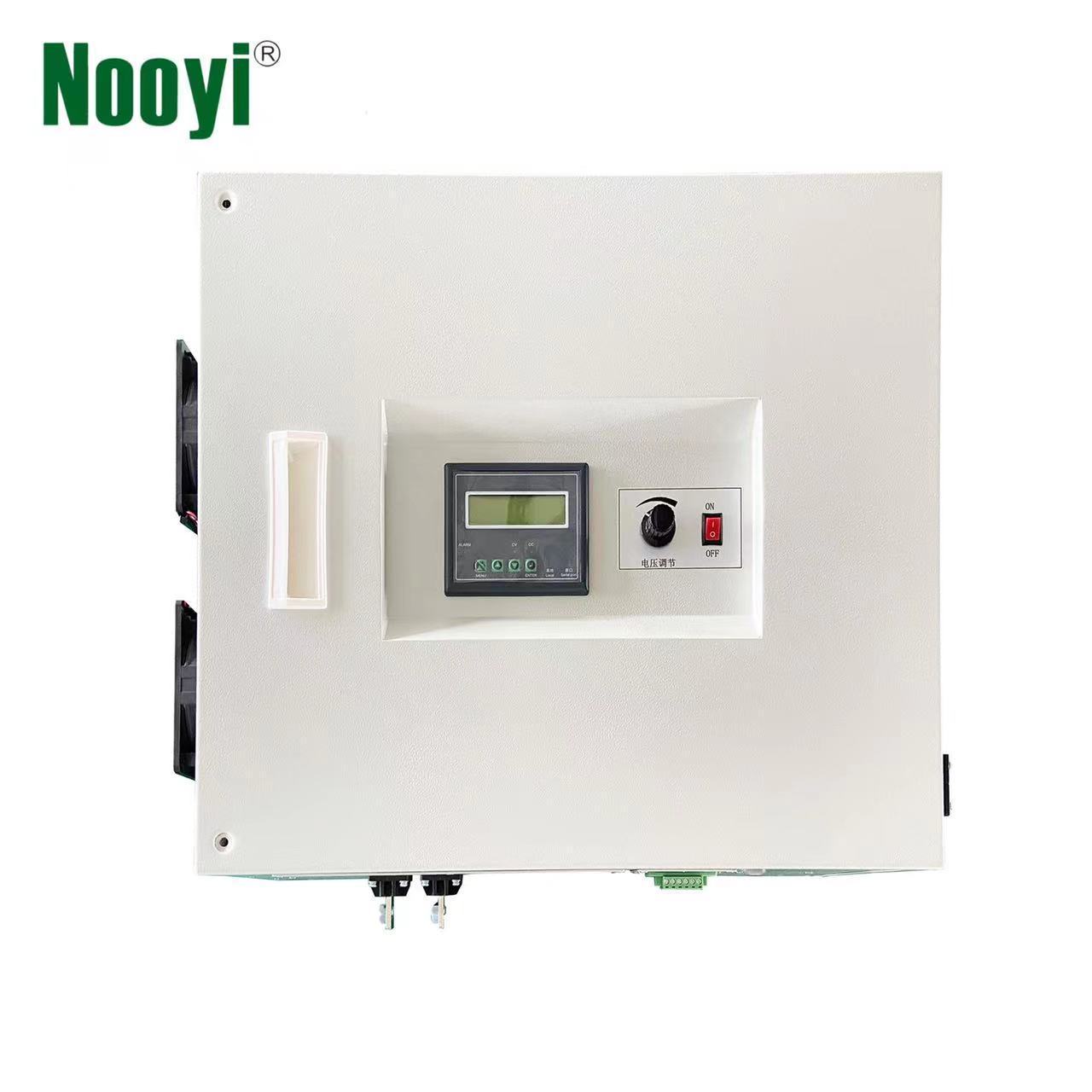

electroplating rectifier 12V 600 amp power supply

electroplating rectifier 12V 600 amp power supply

FOB Reference Price: Get Latest Price

≥1 Sets

US $1691

≥5 Sets

US $1651

≥10 Sets

US $1616

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Nooyi

Model Number:: Customize series

Output Frequency:: 50/60Hz

Output Current:: 80V 63A ( can customize 0-200A)

Certificate:: CE / ISO9001

Protection:: Overvoltage Overload Short Circuit Overtemperature

Application:: Industrial Automation Machinery

Input:: 380VAC three phase

Efficiency:: 95%

Product Name:: DC POWER SUPPLY

Brand:: Nooyi

Main control:: 32-bit processor

MOQ:: 1set

Quick Details

Output Power:: 5kW (can customize3-10KW)

Input Voltage:: 380±15

Output Voltage:: 80V 63A (can customize 0-1000V)

Place of Origin:: Jiangsu, China

Brand Name:: Nooyi

Model Number:: Customize series

Output Frequency:: 50/60Hz

Output Current:: 80V 63A ( can customize 0-200A)

Certificate:: CE / ISO9001

Protection:: Overvoltage Overload Short Circuit Overtemperature

Application:: Industrial Automation Machinery

Input:: 380VAC three phase

Efficiency:: 95%

Product Name:: DC POWER SUPPLY

Brand:: Nooyi

Main control:: 32-bit processor

MOQ:: 1set

Product Description

Nooyi DC power supply is an efficient DC constant voltage constant current constant power supply with ARM new generation 32-bit processor as the monitoring chip, PWM pulse width modulation mode, IGBT as the main control element, medium and high frequency transformer isolation, fast recovery diode rectification. DPH series DC power supply works in the process of ac-dc-medium and high frequency AC-DC. It is a new generation of high frequency isolated DC power supply with small volume, energy saving and high efficiency. It is an alternative product of SCR high frequency isolated DC power supply.

DPH DC Power Supply------We can make up to 20000V50000A

With high frequency switching technology
Small size, Light weight and high efficiency
Modular structure
Automatic switch of voltage regulation and current regulation
High accuracy in voltage regulation and current

Flexible use, simple operation
Complete protection function
Long service life

Details Images

Product features:
1. With ARM 32-bit processor, it can be applied to various intelligent control schemes
2. IGBT as the main control element and medium and high frequency transformer is used for isolation
3. Constant voltage, constant current and constant power automatic switching
4. Fast dynamic response and stability
5. High precision, small output ripple
6. External battery can be used for backup, with charge and discharge management functio
7. Complete protection functions, overload, overvoltage, overcurrent, over temperature, under voltage, short circuit.
8. LCD parameter display, set value and actual value display at the same time
9. RS232 communication interface, standard MODBUS-RTU protocol, can be transferred to any other protocol.

What is IGBT rectifier?
The high frequency switching IGBT rectifier’s three phase AC input is converted to DC through rectification and filter, then DC voltage is transformed to DC output through phase shift full bridge PWM DC/DC converter. The power supply has independent power modules, each module could output independently or output in parallel connection.

IGBT has many advantages compared to traditional SCR rectifier, such as:
-- Lower investment cost
-- Energy saving more than 20% because of higher conversion efficiency, especially low DC output voltage
-- Less electroplating/anodizing time needed because of high frequency pulse output
-- High power factor >0.93, avoid government fine due to low power factor
-- Compact size, 1/3 size of SCR size
-- Light weight, easy to install, transport, maintain
-- When IGBT rectifier is more energy saving than SCR rectifier?
-- When the rated output voltage is below 50V, IGBT rectifier's energy saving effect is more obvious.
-- 1000A 12V rectifier saves power per year about 16800KWh, comsumes power 17% less than SCR rectifier.

Application Field

The IGBT rectifier is used for the fields wherever require DC output power. such as:
Electrochemistry: Plating, anodizing, electro polishing, electrolysis, electro winning, electro refining, electronic cleaning,
tinning, pickling, surface coloring, cathode protection,p roduction line testing.
Heating: Inductive heating, DC heating, single phase AC heating
Water treatment: Waste water treatment, seawater desalination
Everything else needs a DC regulated power supply.

Product Paramenters

Model	80V 63A (can customize other voltage and current)
Size WxDxH(mm)	440530175mm
Input
Rated voltage	Three phase 380V, singe phase 220V(can customize any voltage )
Fluctuation Range	±10% (can customize other range)
Input frequency	40-70Hz
12 pulse rectifier transformer	Phase-shifting. transformer (Optional, non-standard )
Efficiency	>92% different load rates may have a deviation
Power factor	>0.98
Output
Output DC voltage	DC 0-1000V
Output current	0-1000A
Voltage stability	≤0.5%
Current stability	≤0.5%
Output overshoot voltage	No overshoot at startup output (With soft start function)
Control
Main control element	The main measurement and control chip adopts arm32-bit processor
Control frequency	6-100KHz according to the power size and heat dissipation
Control voltage and current acquisition mode	DC voltage and current isolation sensor collection
Control mode	Voltage closed-loop control, current closed- loop mode, voltage and current double feedback closed-loop mode
Interfaces	RS485, MODBUS-RTU protocol, Optional RS232, TCP/IP, GPRS
Working mode	Work continuously for 24 hours
Display
Display media	4.3-inch touch screen or 7-inch touch screen
Rated parameters	Output DC voltage, current, power, load rate percentage; Set value voltage, current, power;
Alarm	IGBT module fault, inverter over-current fault, over temperature fault, output over- voltage, output over-current, high temperature
Display accuracy of rated parameters	1.0 grade
Resolution voltage parameter	0.1V or 0.01V (can customize higher resolution)
Current parameter resolution	0.1A or 0.01A (can customize higher resolution)
Protection
Protection type	Voltage feedback fault, current feedback fault, IGBT alarm, inverter alarm, output overload, high temperature
Protection mode	1. Cut off output when failure occurs; 2. current and voltage limit.
Working Environment
Ambient Temperature	10℃-45℃ (No condensation)
Working Humidity	0℅-90℅
Others
Heat dissipation mode	Natural cooling or forced air cooling
Degree of protection	Indoor IP21

In order to give you the best price, please kindly specify your requirements as clearly as possible.
Pls offer the below specification:

1. AC Input Voltage?

2. Single phase or three phase?

3. DC output voltage？

4. DC output current?

5. Application?

6. Order quantity?
OEM and ODM is welcome, we have professional and experienced engineer team for you.

Company Introduction

Nuoyi Electric Co., Ltd. is a production-oriented enterprise specializing in the R & D, production and sales of power supply. The company is headquartered in Shanghai and the factory is located in Suzhou, with a plant area of 15000 square meters. The main products are variable frequency power supply, DC power supply, UPS uninterruptible power supply, grid connected inverter, DVR, AC voltage regulator etc. Our products are widely used in national defense, medical treatment, machining, transportation, communication, scientific research, new energy and other fields.

FAQ

1.Are you manufacturer?
Yes, we are OEM manufacturer. We focused on the research of voltage regulator since 1997, we have over 20 years experience in produce the electric power equipment (DC Power supply, variable frequency power supply, UPS and frequency inverter).

2.Do you can be provide the international power installation and construction?
Yes, we have the qualification certification and strong team to provide the service for the national and international electric
power installation and construction project.

3.How about the pre-sale and after-sale service?
Before order we will be discuss full products details, price details, delivery details and install details etc. After order we
will be provide technical support. We are agree oversea service if you need.

4.What’s your MOQ?
One set for our electric power equipment.

5.How’s the delivery time needed?

Our produce time need about 15 days. The exact time based on the order.

6. How about the quality guarantee?
We help our customers solve their after-sales problem and offer 12 months warranty. If you are interest in our products, pls kindly contact us for more details.
