Quick Details
-
Rolling thinckness:
-
1.5mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
YUFA
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
9.8*1.3*1.3 m
-
Weight:
-
9800 kg
-
Feeding width:
-
as the drawing customized
-
Marketing Type:
-
New Product 2022
-
Product name:
-

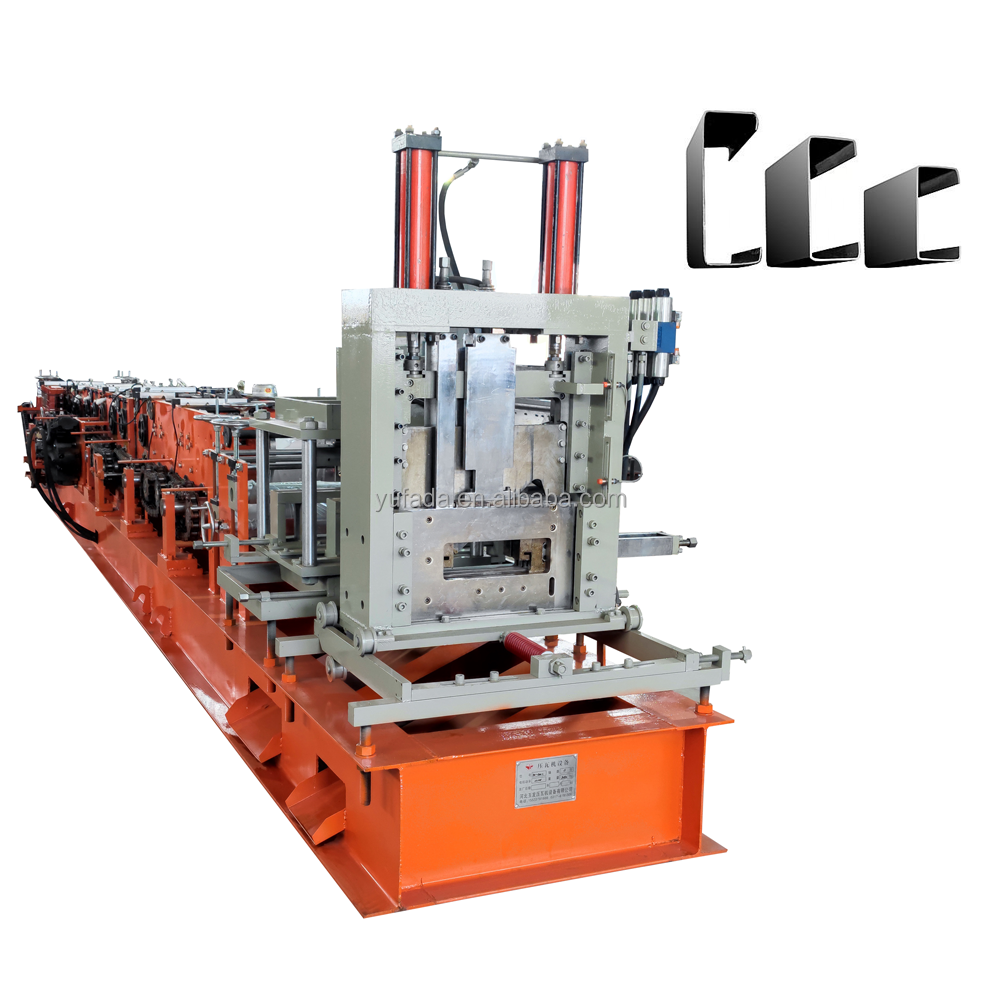

C Purlin Sheet Roll Forming Machine
-
Power:
-
Hydraulic
-
Automation:
-
Automatic
-
Raw material:
-
Galvanized sheet
-
Raw material thickness:
-
1.5-3 mm
-
material of cutting blade:
-
Cr12
-
Control system:
-
PLC(detla) System
-
Material of rollers:
-
45# Cr Plated
-
Shaft material:
-
Bearing steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-25 m/min
-
Rolling thinckness:
-
1.5mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
YUFA
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
9.8*1.3*1.3 m
-
Weight:
-
9800 kg
-
Feeding width:
-
as the drawing customized
-
Marketing Type:
-
New Product 2022
-
Product name:
-
C Purlin Sheet Roll Forming Machine
-
Power:
-
Hydraulic
-
Automation:
-
Automatic
-
Raw material:
-
Galvanized sheet
-
Raw material thickness:
-
1.5-3 mm
-
material of cutting blade:
-
Cr12
-
Control system:
-
PLC(detla) System
-
Material of rollers:
-
45# Cr Plated
-
Shaft material:
-
Bearing steel
Welcome to YUFADA, we are yourChina supplier c purlin roll forming z section steel roller machine machinery cz rollformers hydraulic beam purline making maintain expert.
China supplier c purlin roll forming z section steel roller machine machinery cz rollformers hydraulic beam purline making
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- output table
China supplier c purlin roll forming z section steel roller machine machinery cz rollformers hydraulic beam purline making
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | <1000 mm coil sheet |
| 2 | Thickness of feeding material | max 4.0 mm coil sheet |
| 3 | Roller station | 8-18 stations |
| 4 | Shaft Diameter | 55-95 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | Bearing steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 9 ton |
| 9 | length | 8-11 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 tons |
| 13 | Motor | 22-30 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.5-2 inch |
| 16 | Cutting system | Hydraulic cutter |
