- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1500*800*1000mm
-
Weight:
-
150
-
Warranty:
-
12 Months
-
Name:
-
Almond Sheller machine line
-
Application:
-
Nuts
-
Shelling rate:
-
98-99%
-
Capacity:
-
400-500kg/h
-
Keyword:
-
almond Husker
-
Delivery Time:
-
7days
-
Advantage:
-
Easy Operation High Peeling Rate
-
Material:
-
Carobon Steel
-
Final products:
-
almond
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Farm Machine
-
Use:
-
Nut grader machine
-
Production Capacity:
-
500-700kg/h
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1500*800*1000mm
-
Weight:
-
150
-
Warranty:
-
12 Months
-
Name:
-
Almond Sheller machine line
-
Application:
-
Nuts
-
Shelling rate:
-
98-99%
-
Capacity:
-
400-500kg/h
-
Keyword:
-
almond Husker
-
Delivery Time:
-
7days
-
Advantage:
-
Easy Operation High Peeling Rate
-
Material:
-
Carobon Steel
-
Final products:
-
almond
-
Certification:
-
ISO9001
Application
This Product can be used for rice, grains, tea, flower tea, nuts, beans, wlnut ,almond
apricot kernels, hazelnuts, almonds, different nuts
Specification
|
Model
|
Xt-200
|
Xt-300
|
Xt-2000
|
|
Power
|
2.2KW
|
2.2KW
|
6.5KW
|
|
Capacity
|
300-400kg/h
|
400-500kg/h
|
800-100KG/H
|
|
Size
|
1.8*0.8*1.5M
|
1.9*0.78*1.2M
|
3.2*2.1*2.6M
|
Product Description
This machine is mainly used for removal of all kinds of nuclear hard shell.
It consists of primary processing hulling roller,vibrating screen,a strip level specifications of almond,hazelnut,and other hard shell.It can adjust the roll gap and then take off another specification,and so on.
It consists of primary processing hulling roller,vibrating screen,a strip level specifications of almond,hazelnut,and other hard shell.It can adjust the roll gap and then take off another specification,and so on.

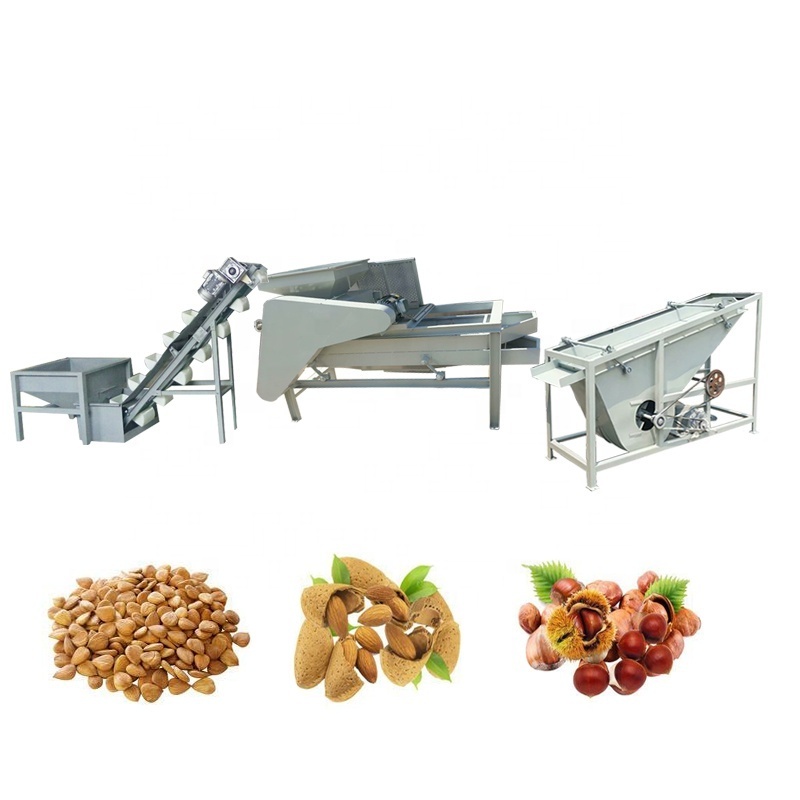

Processing line
Almond feeding elevator -- almond cracking machine -- almond shell kernel separating machine -- elevator -- almond grading machine.
Almond feeding elevator -- almond cracking machine -- almond shell kernel separating machine -- elevator -- almond grading machine.
Flow chat:
1, Almond Skip Elevator
The bucket elevator is a mechanical conveying device for fixed devices. It is mainly suitable for continuous vertical lifting of
powder, granular and small materials.
- The lifting tube adopts the undercut structure to make the seal more reliable and prevent dust from leaking out.
- The operating tube is fully open, making inspection and maintenance more convenient.
- High-speed lifting, large conveying capacity, and higher output than domestic similar products.
powder, granular and small materials.
- The lifting tube adopts the undercut structure to make the seal more reliable and prevent dust from leaking out.
- The operating tube is fully open, making inspection and maintenance more convenient.
- High-speed lifting, large conveying capacity, and higher output than domestic similar products.
2, Almond classifier
1. This machine is mainly used for separating almonds, apricot kernels, walnut kernels and walnut crusts. It is a supporting equipment of sheller.
2. This machine makes use of the different proportions of nuts and crushed shells and the different suspension velocities, and promotes the separation of almonds and crushed shells by means of the upward air flow passing through the particle gap. Because the specific gravity of almonds and crushed shells is different from each other, the separation effect of large gap between almonds and crushed shells is good, and the separation effect of small gap is poor. The isolation rate of common varieties is 90-95%.
1. This machine is mainly used for separating almonds, apricot kernels, walnut kernels and walnut crusts. It is a supporting equipment of sheller.
2. This machine makes use of the different proportions of nuts and crushed shells and the different suspension velocities, and promotes the separation of almonds and crushed shells by means of the upward air flow passing through the particle gap. Because the specific gravity of almonds and crushed shells is different from each other, the separation effect of large gap between almonds and crushed shells is good, and the separation effect of small gap is poor. The isolation rate of common varieties is 90-95%.
3.Almond sheller machine
This Good Performance Cashew Nut Shell Removing Machine Almond Nut Cracking Machine can be used for cracking various kinds of nuts, such as almond, walnut, hazelnut, badam, etc. The machine has the feed hopper, the stripe roller, the shed bar, the fan, the gravity separator, the fan and so on. Customers can adjust the clearance to get a better breaking performance, based on specific requirement.
4, Almond Saparator machine
Apricot kernel shell separator, used for shelling of apricot kernel sheller, separating the almond and apricot shell with a shell
separator. It can also be used for the separation of shell kernels after shelling of nuts such as walnuts. The machine utilizes the difference in specific gravity and suspension speed between the shell and the kernel, and promotes separation between the
shells by means of a gas flow that passes upward through the gap of the particles. This product adopts single (double) fan, which has good separation effect and high output. It is an ideal shell separation equipment. The device is easy to operate, has a small footprint, and can be easily assembled into a production line.
Apricot kernel shell separator, used for shelling of apricot kernel sheller, separating the almond and apricot shell with a shell
separator. It can also be used for the separation of shell kernels after shelling of nuts such as walnuts. The machine utilizes the difference in specific gravity and suspension speed between the shell and the kernel, and promotes separation between the
shells by means of a gas flow that passes upward through the gap of the particles. This product adopts single (double) fan, which has good separation effect and high output. It is an ideal shell separation equipment. The device is easy to operate, has a small footprint, and can be easily assembled into a production line.
Details Images
1. The almond cracking rate can reach 98% with less than 1% broken rate( for a better cracking effect, you should grade the almonds first)
2. All these procedures are automatic and two people can control the whole almond shelling and separating line
3. Rotary and adjustable rollers make almond shelling machine suitable for almond with all hardness.
4. Main components all adopt stainless steel and has a long service life.
5. High shelling efficiency with low energy consumption.
6. Low land occupancy and investment.
2. All these procedures are automatic and two people can control the whole almond shelling and separating line
3. Rotary and adjustable rollers make almond shelling machine suitable for almond with all hardness.
4. Main components all adopt stainless steel and has a long service life.
5. High shelling efficiency with low energy consumption.
6. Low land occupancy and investment.
Our Advantages
1. Almonds can be shelled without grading.
2. Advanced shelling technology improved the productivity.
3. High shelling rate and low broken rate.
4. No injury to human hands.
5. High degree of automation.
6. Easy operation, stable performance, durable in use.
2. Advanced shelling technology improved the productivity.
3. High shelling rate and low broken rate.
4. No injury to human hands.
5. High degree of automation.
6. Easy operation, stable performance, durable in use.
