* No Dead Zones
* No Dragging the Welder Around
* No Tangled or Cut Cables
* No Clutter on the Shop Floor
* Increased Safety
* Increased Productivity
* Engineered to Perform and Designed to Last
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
160
-
Voltage:
-
100%
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
300mm*100mm*2800mm
-
Usage:
-
Auxiliary Welding
-
product aliases:
-
Space Arm
-
wire feeder bracket:
-
80-120kg
-
forearm length / lift travel:
-
3m / 2-2.5m
-
rotating arm length / angle:
-
0.4m / 360°
-
base assembly rotation angle:
-
180°-210°
-
cylinder:
-
5 ton
-
flexible suction arm rotates:
-
360°
-
air pipe:
-
galvanized material / diameter,150mm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xutai
-
Weight (KG):
-
160
-
Voltage:
-
100%
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
300mm*100mm*2800mm
-
Usage:
-
Auxiliary Welding
-
product aliases:
-
Space Arm
-
wire feeder bracket:
-
80-120kg
-
forearm length / lift travel:
-
3m / 2-2.5m
-
rotating arm length / angle:
-
0.4m / 360°
-
base assembly rotation angle:
-
180°-210°
-
cylinder:
-
5 ton
-
flexible suction arm rotates:
-
360°
-
air pipe:
-
galvanized material / diameter,150mm
Products Description
Advantages
Mig Welding Booms and Arms（Space Arm）
The space arm of the welding machine is to install the scattered wire feeder, cable, wire feeding hose, gas pipe and other parts on the cross arm,
walk in the space
,
do not occupy the ground
, and can stay and work smoothly in the three-dimensional space within the welding range required by the user during welding.
Reduced time spent on non-welding tasks
More time welding Clean, organized welding cell
Eliminates tripping hazards and shop floor clutter
Increased operator safety, motivation, and productivity
Customer Photos
Product Information Parameters
Manual Hydraulic Welding Boom
|
Manual Hydraulic Welding Boom
|
|
|
||
|
Name
|
Parameters
|
|
||
|
Column
|
3m high
|
Height customizable/without columns
|
||
|
Base assembly
|
0.2m long
|
Rotation angle 180°-210°
|
||
|
Main arm
|
3m long
|
Regular 1-6 m /special length can be customized
|
||
|
Swivel arm
|
0.4m long
|
Rotation angle 320°
|
||
|
Forearm
|
3m long
|
Lifting stroke 2.5-2.8 m / special length can be customized
|
||
|
Wire feeder bracket
|
Load capacity 80-120 kg
|
|
||
|
|
|
|||
Spring Balancer Welding Boom
|
Spring Balancer Welding Boom
|
|
|
||
|
Name
|
Parameters
|
|
||
|
Column
|
3m high
|
Height customizable/without columns
|
||
|
Base assembly
|
0.2m long
|
Rotation angle 180°-210°
|
||
|
Main arm
|
3m long
|
Regular 1-6 m /special length can be customized
|
||
|
Swivel arm
|
0.4m long
|
Rotation angle 320°
|
||
|
Forearm
|
3m long
|
Lifting stroke 2.5-2.8 m / special length can be customized
|
||
|
Wire feeder bracket
|
Load capacity 25 kg
|
|
||
|
|
|
|||

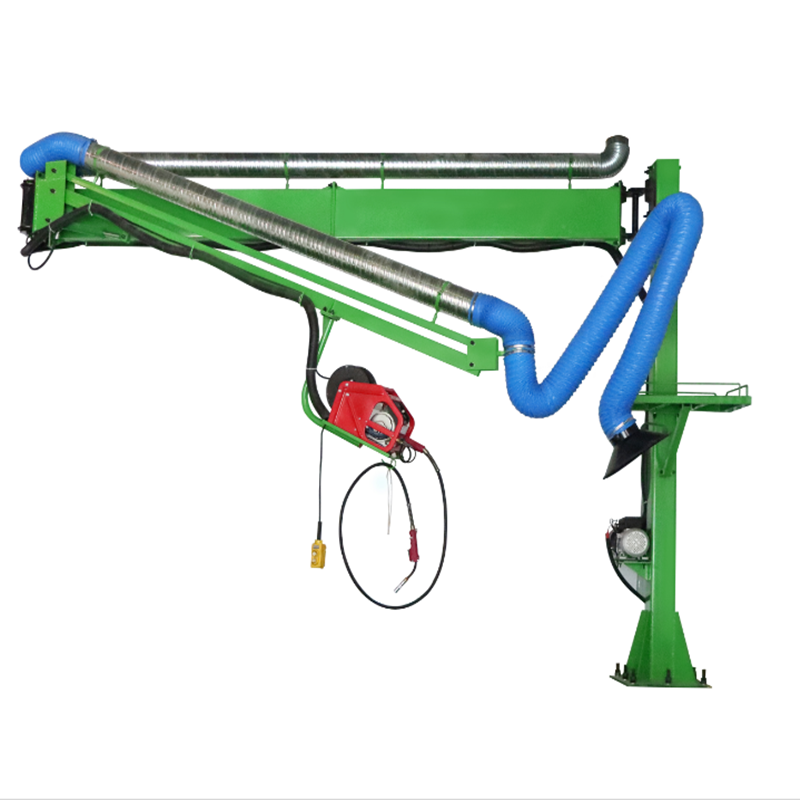

Electro Hydraulic Welding Boom
|
Electro Hydraulic Welding Boom（The vacuum arm is optional）
|
|
|
||
|
Name
|
Parameters
|
|
||
|
Column
|
3m high
|
Height customizable/without columns
|
||
|
Base assembly
|
0.2m long
|
Rotation angle 180°-210°
|
||
|
Main arm
|
3m long
|
Regular 1-6 m /special length can be customized
|
||
|
Swivel arm
|
0.4m long
|
Rotation angle 320°
|
||
|
Forearm
|
3m long
|
Lifting stroke 2.5-2.8 m / special length can be customized
|
||
|
Spiral ducts
|
3m long
|
Diameter 150mm/galvanized
|
||
|
Flexible suction arm
|
3m long
|
Diameter 160mm/can be rotated 360°
|
||
|
Suction hood
|
Diameter 400mm
|
|
||
|
Wire feeder bracket
|
Load capacity 80-120 kg
|
|
||
|
|
|
|||
Customize
The power mode can be selected
Manual hydraulics
Welding Boom
（Large and small models are available）
Electro Hydraulic Welding Boom
（One-button control lifting）
