- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
300A
-
Max. Current:
-
300A
-
Mechanical Life:
-
10000
-
Product Name:
-
Smart Battery Isolator
-
Terminal Stud Size:
-
3*M10
-
Application:
-
Marine, Boat, Yachts, 4WD, RV, Caravan, Trunk...etc
-
Color:
-
red black
-
Switch Positions:
-
4
-
Voltage Rating:
-
12-48V DC
-
Operation:
-
ON/OFF
-
Function:
-
Battery Switch Selector 4 Position
-
Keyword:
-
battery switch 300a
-
Size:
-
73*73*86mm
Quick Details
-
Max. Voltage:
-
48V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONEGOL
-
Model Number:
-
300A
-
Max. Current:
-
300A
-
Mechanical Life:
-
10000
-
Product Name:
-
Smart Battery Isolator
-
Terminal Stud Size:
-
3*M10
-
Application:
-
Marine, Boat, Yachts, 4WD, RV, Caravan, Trunk...etc
-
Color:
-
red black
-
Switch Positions:
-
4
-
Voltage Rating:
-
12-48V DC
-
Operation:
-
ON/OFF
-
Function:
-
Battery Switch Selector 4 Position
-
Keyword:
-
battery switch 300a
-
Size:
-
73*73*86mm
Specification

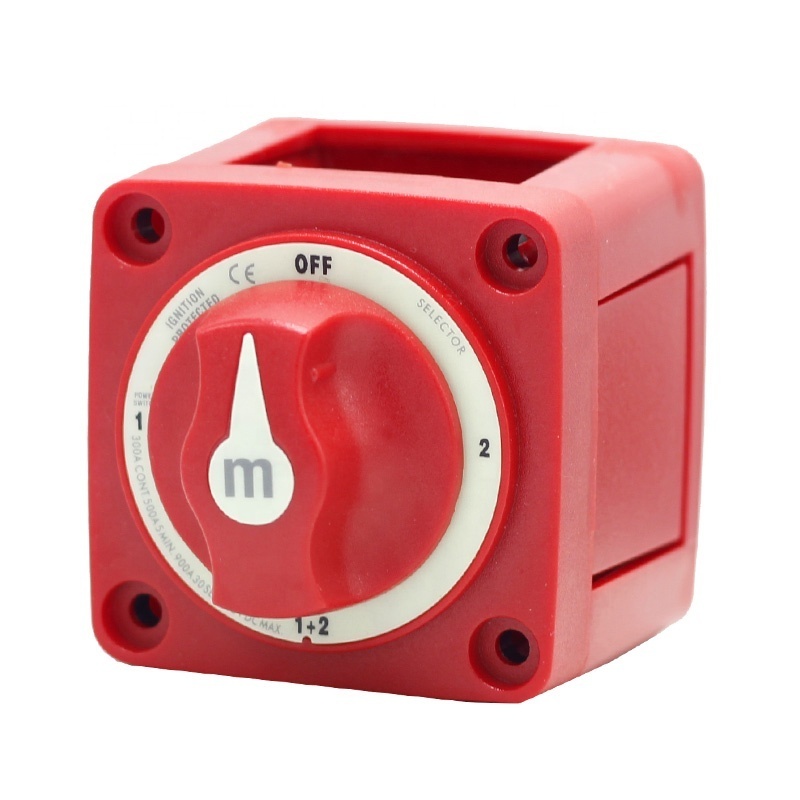

300A Dual Battery Selector Switch 6007 M-Series Selector 4 Position 1-2-Both-Off Marine Battery Isolator switch for Boat Trucks
300 Amps continuous rating for outboards and small gasoline or diesel engines.
Battery management is central to the safe operation of a boat or vehicle.
Battery management is central to the safe operation of a boat or vehicle.
TP-34 ZW-338
|
Product
|
Battery Selector Switch
|
|
Switch Positions
|
Selector 4 Position
|
|
Voltage
|
48V DC
|
|
Continuous Rating
|
300A
|
|
Product installation range
|
cars,off-road vehicles,buses,RVs,yachts,boats,etc.
|
|
Intermittent Rating
|
500A (5 min)
|
|
Cranking Rating 10 sec
|
1500A
|
|
Cranking Rating 1 min
|
775A
|
|
Battery Inputs
|
2
|
|
Cable Clearance For 4/0 AWG Cables
|
1.12in (28.45 mm)
|
|
Cable Size to Meet Ratings
|
4/0 AWG (120mm sq)
|
|
Mounting Holes
|
Accept #10 Screw
|
|
Terminal Stud Size
|
3/8″ – 16 (M10)
|
