Quick Details
-
Brand Name:
-
BORUI
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
2700x1750x2100
-
Weight (KG):
-
4200
-
Power (kW):
-
4
-
model:
-
M7140
-
Table size:
-
1000*400mm
-
Max. work load:
-
200kg
-
Slide way:
-
V-type rail with steel-ball
-
Product name:
-
Grinding Machine
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Metal Processing
-
Function:
-
Grinding Material
-
Color:
-
Customized Optional
-
Precision:
-
High Precision Machine
Quick Details
-
Wheel Size(mm):
-
350x40x127
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
2700x1750x2100
-
Weight (KG):
-
4200
-
Power (kW):
-
4
-
model:
-
M7140
-
Table size:
-
1000*400mm
-
Max. work load:
-
200kg
-
Slide way:
-
V-type rail with steel-ball
-
Product name:
-
Grinding Machine
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Metal Processing
-
Function:
-
Grinding Material
-
Color:
-
Customized Optional
-
Precision:
-
High Precision Machine

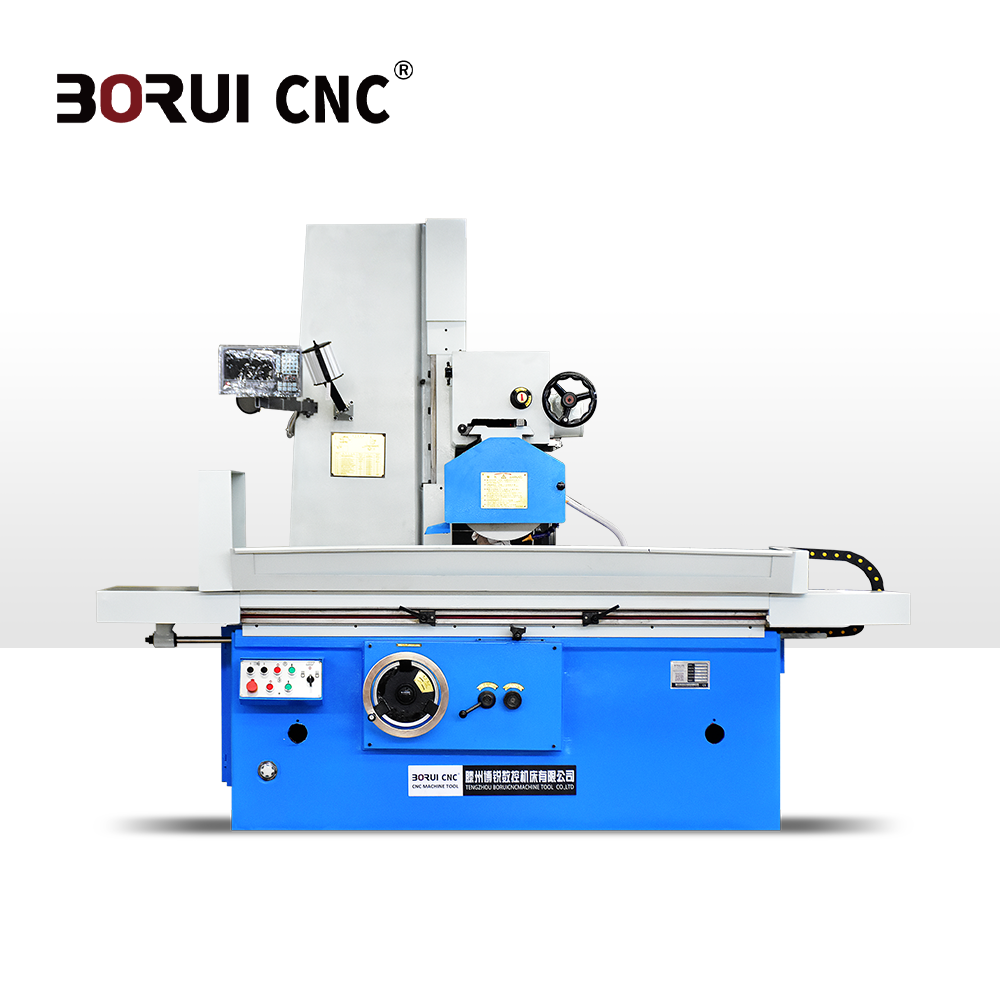

BORUI M7140 surface grinding machine
Product Description
Specification
|
Model
|
|
M7140-1000
|
M7140-1600
|
M7140-2000
|
||
|
Table size (length×width)
|
mm
|
1000×400
|
1600×400
|
2000×400
|
||
|
Max. longitudinal stroke of worktable
|
mm
|
1100
|
1700
|
2100
|
||
|
T-slot of worktable number of slots×width of slot
|
|
3×18
|
3×18
|
3×18
|
||
|
Table speed (infinite)
|
m/min
|
3--25
|
3--25
|
3--25
|
||
|
Max. distance from the center of the grinding wheel shaft to the worktable
|
mm
|
575
|
575
|
575
|
||
|
Max. stroke of grinding head Horizontal (manual and hydraulic)
|
mm
|
440
|
440
|
440
|
||
|
Max. stroke of grinding head Vertical (manual)
|
mm
|
400
|
400
|
400
|
||
|
Rotating Speed of Grinding Wheel Shaft
|
rpm
|
1440
|
1440
|
1440
|
||
|
Grinding wheel size (outer diameter×width×inner diameter)
|
mm
|
350×40×127
|
|
|
||
|
Vertical feed handwheel dial value
|
mm
|
0.01
|
0.01
|
0.01
|
||
|
Grinding head feed per turn of handwheel
|
mm
|
1.00
|
1.00
|
1.00
|
||
|
Total motor power
|
kw
|
11
|
12
|
12
|
||
|
power
|
kw
|
7.5
|
7.5
|
7.5
|
||
|
Rotating speed
|
r/min
|
1440
|
1440
|
1440
|
||
|
power
|
kw
|
0.37
|
0.37
|
0.55
|
||
|
Rotating speed
|
r/min
|
1440
|
1440
|
1440
|
||
|
Oil pump motor
|
kw
|
3
|
4
|
4
|
||
|
Rotating speed
|
r/min
|
960
|
960
|
960
|
||
|
Cooling pump motor
|
kw
|
0.125
|
0.125
|
0.125
|
||
|
Rotating speed
|
r/min
|
2800
|
2800
|
2800
|
||
|
flow
|
L/min
|
100
|
100
|
125/50
|
||
|
Work pressure
|
MPa
|
1.5
|
1.5
|
1.5
|
||
|
Parallelism of the machined surface to the base surface
|
mm
|
1000:0.015
|
1000:0.015
|
1000:0.015
|
||
|
Surface roughness
|
μm
|
Ra0.63
|
Ra0.63
|
Ra0.63
|
||
|
net weight/Gross weight
|
kg
|
3800/4200
|
5300/6000
|
6300/7000
|
||
|
Overall dimensions (length×width×height)
|
mm
|
2700×1750×2100
|
4400×1750×2100
|
5400×1750×2100
|
||
The main purpose:
Mainly used for rough grinding, fine, rough and precision of large parts of the surface, more than 0.8, the parallel degree within 0.005/300mm.
Especially suitable for metallurgy, automobile, tractor, saw blade, grinding tools, bearings and other industries for large parts of the.
