Quick Details
-
Max. Lifting Height:
-
3m
-
Span:
-
7.5-22.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengshan
-
Weight (KG):
-
2680 kg
-
Product name:
-
3 ton jib crane
-
Power Source:
-
3 phase 380V 50hz (on request)
-
Operational Method:
-
Ground
-
Working Temperature:
-
-25-40℃
-
Rotation Angle:
-
360°
-
Length of Arm:
-
2.8m
-
Paint Color:
-
on request
-
Slewing radius:
-
3.9m
-
Control method:
-
Electric Operated
-
HS Code:
-
842609
Quick Details
-
Application:
-
Plant,Yard,Mines,Warehouse
-
Rated Loading Capacity:
-
3t
-
Rated Lifting Moment:
-
30Kn
-
Max. Lifting Height:
-
3m
-
Span:
-
7.5-22.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengshan
-
Weight (KG):
-
2680 kg
-
Product name:
-
3 ton jib crane
-
Power Source:
-
3 phase 380V 50hz (on request)
-
Operational Method:
-
Ground
-
Working Temperature:
-
-25-40℃
-
Rotation Angle:
-
360°
-
Length of Arm:
-
2.8m
-
Paint Color:
-
on request
-
Slewing radius:
-
3.9m
-
Control method:
-
Electric Operated
-
HS Code:
-
842609
Products Description

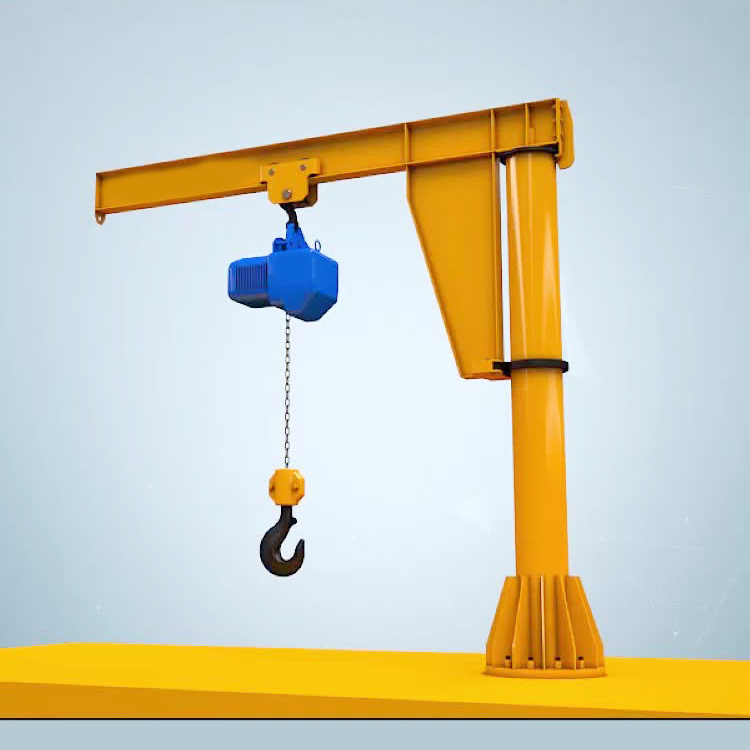

Jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production. And Jib Crane adopts West Germany technology , has the features of reasonable structure,easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf,etc.
Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
Advantage:
1. Installation with high strength bolt connection;
2. Convenient in operation,safe and turn to flexible;
3. Low noise,commodious cabin and good looking;
4. High quality and efficiency, competitive price;
5. Reasonable and simple whole structure,Light self-weight, conform to the state standards;
6. Inexpensive handling systems doesn't require modification of the building structure around.
2. Convenient in operation,safe and turn to flexible;
3. Low noise,commodious cabin and good looking;
4. High quality and efficiency, competitive price;
5. Reasonable and simple whole structure,Light self-weight, conform to the state standards;
6. Inexpensive handling systems doesn't require modification of the building structure around.
Product Paramenters
|
Item
|
Data
|
|
Capacity
|
0.25-10t
|
|
Lifting height
|
3-8m
|
|
Slew angle
|
360°
|
|
Lifting speed
|
1-10m/min
|
|
Travelling speed
|
0.6-0.7m/min
|
|
Lift mechanism
|
Wire rope hoist or chain hoist
|
|
Slewing speed
|
26m/min
|
|
Power source
|
3phase AC 380V 50HZ or as your demand
|
|
Other
|
According to your specific usage, specific model and design will offer
|
