Quick Details
-
Brand Name:
-
ZHIGAO
-
Model Number:
-
HFS-25
-
Operating Temperature:
-
1 ~100 ℃
-
Color:
-
red
-
Packing:
-
No brand export packing
-
Package:
-
carton
-
Flow switch Body material:
-
Brass flow switch
-
application:
-
different fluid, chemicalliquid , water, gas fluid,
-
installation:
-
vertically
-
Connection:
-
NPT Pipe Thread
-
Temperature Range:
-
1 ~100 ℃
-
Pressure:
-
10 Par
-
SPDT RATING:
-
220VAC 15A
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.5-48.5 m3/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHIGAO
-
Model Number:
-
HFS-25
-
Operating Temperature:
-
1 ~100 ℃
-
Color:
-
red
-
Packing:
-
No brand export packing
-
Package:
-
carton
-
Flow switch Body material:
-
Brass flow switch
-
application:
-
different fluid, chemicalliquid , water, gas fluid,
-
installation:
-
vertically
-
Connection:
-
NPT Pipe Thread
-
Temperature Range:
-
1 ~100 ℃
-
Pressure:
-
10 Par
-
SPDT RATING:
-
220VAC 15A

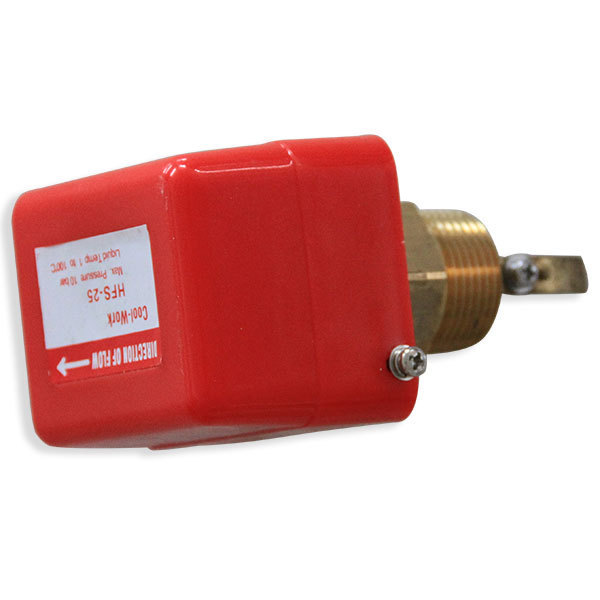

HFS-25 Thread SPDT Water Flow Switch
HFS-25 AC 220V 15A Male Thread SPDT Water Paddle Flow Switch
1'' NPT 10KG 100°c
SPDT 15A 250VAC
Flow switch adjustment:
Note: sealed adjustments are not field adjustable.
To adjust setting:
1:Remove switch cover.
2. For higher flow rate-turn range adjusting screw clockwise.
3. For lower flow rate-turn range adjusting screw counterclockwise.
4. Be sure flow switch cover is replaced before leaving job.
|
Pipe size |
mm |
20 |
25 |
32 |
38 |
51 |
63 |
76 |
102 |
127 |
152 |
200 |
|
inch |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
|
|
Min. Adjustment |
Flow increase m3/h |
1.11 |
1.36 |
2.22 |
2.89 |
4.27 |
5.51 |
6.82 |
9.02 |
13.33 |
17.99 |
48.5 |
|
Flow decrease m3/h |
0.66 |
0.82 |
1.27 |
1.59 |
2.13 |
2.63 |
2.72 |
4.49 |
6.65 |
8.99 |
29.4 |
