Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
TY22265
-
Weight:
-
10.0 kg
-
Warranty:
-
1 year
-
Air pressure:
-
0.5 MPa
-
Rated power:
-
2.5 kw
-
Rotor shaft rotation frequency:
-
6500 rpm
-
Air consumption:
-
105 CFM
-
Chain Bar Length:
-
350 mm
-
Overall dimensions:
-
780*280*250 mm
-
Estimated time sawn logs:
-
10 sec (300 mm dia.)
Quick Details
-
Engine Displacement:
-
-
-
Guide Bar Size:
-
-
-
Power:
-
4 HP
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
TY22265
-
Weight:
-
10.0 kg
-
Warranty:
-
1 year
-
Air pressure:
-
0.5 MPa
-
Rated power:
-
2.5 kw
-
Rotor shaft rotation frequency:
-
6500 rpm
-
Air consumption:
-
105 CFM
-
Chain Bar Length:
-
350 mm
-
Overall dimensions:
-
780*280*250 mm
-
Estimated time sawn logs:
-
10 sec (300 mm dia.)
MODEL |
TY22265 |
MODEL NUMBER DESIGNATION |
2, Cutting Tools 2,Saws 2, Chain Saws 65, Free Speed (6,500rpm) |
POWER |
2,500 W (4 HP) |
FREE SPEED |
6,500 RPM |
WEIGHT |
10KG (22 lbs) |
AIR CONSUMPTION |
84 CFM @ 90 PSI |
AIR INLET |
3/4 in. |
REC AIR HOSE |
3/4 in. |
CURRENT |
PNEUMATIC |
LENGTH W/O GUIDE BAR |
400mm (15-3/4 in.) |
ESTIMATED TIME TO CUT 300mm LOGS |
10 Seconds |
LENGTH W/ GUIDE BAR |
780mm (30.7 in.) |
GUIDE BAR LENGTH |
16 in. |
GAUGE |
0.058 in. |
PITCH |
0.325 in. |
DRIVE LINKS |
64 |
SKU |
589002 |

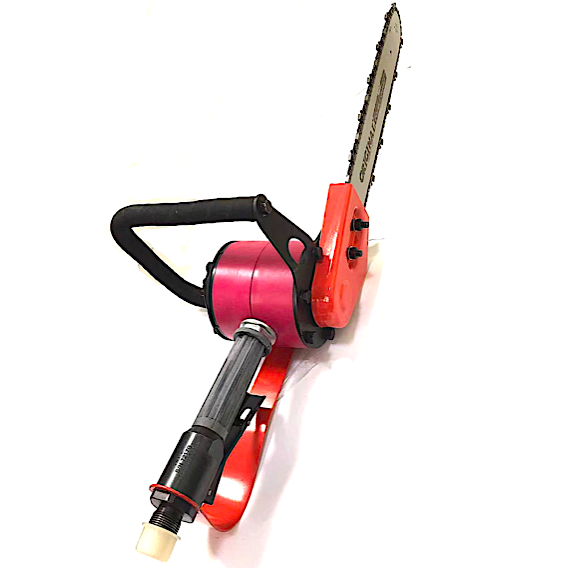

TY22265, compact and hand-held pneumatic chain saw, is intended for mechanization of mining operations for sawing timber in conditions where, according to safety conditions, it is impossible to use electric saws or chainsaws. In explosive atmospheres, with increased gas contamination or at risk of electric shock. TY22265 is ideal for activities such as tree felling, limbing, bucking, pruning, cutting firebreaks in wild land fire suppression and harvesting of firewood.
TY22265 Scope of Delivery,
1* TY22265
6* Vane
1* Guide Bar (OREGON)
1* Saw chains(OREGON)
1* Technical Passport (#9936603)
Tarboya Cutting Tools Brochure could be downloaded from www.tarboya.com
At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we a-r-e d-i-f-f-e-r-e-n-t !
Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.
Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.
You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.
We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.
Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.
Tarboya warrants TY22265 Pneumatic Chain Saw will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.
Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.
Tarboya’s warranty shall be deemed void in the event of:
- Improper use of the machine
- Use contrary to national or international standards
- Incorrect installation
- Faulty supply of compressed air or its poor quality
- Serious deficiencies in maintenance
- Unauthorized modifications and/or interventions
- Total or partial non-compliance with the instructions included in the manual
- Exceptional events, natural disasters and others
|
