Wholesale Price Cooling System air conditioning evaporator Coil titanium Evaporator coil heat exchanger for aquarium

Wholesale Price Cooling System air conditioning evaporator Coil titanium Evaporator coil heat exchanger for aquarium

FOB Reference Price: Get Latest Price

≥1 Sets

US $88

≥10 Sets

US $78.08

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: lvjie

Liquid Flow Rate:: Max 50 M3/h

Maximum Working Pressure:: 4.5Mpa

Weight:: 10 KG

Dimension(L*W*H):: Refer to the data in the table below

Working Temperature Range:: 0-50℃

Product Name:: coil titanium tubes

Application:: Cooling and heating

Feature:: Corrosion resistant

Material:: 316L / SUS304 / Copper / Titanium

Package:: Wooden Case

Is-customized:: Yes

After-sales Service Provided:: Video technical support/Online support

Certification:: ce/ISO9001:2008

Quantity:: 13.5Coils

Heat exchanger type:: Tube Heat Exchanger

Quick Details

Structure:: Tube Heat Exchanger

Voltage:: 220V/50Hz

Place of Origin:: Jiangsu, China

Brand Name:: lvjie

Liquid Flow Rate:: Max 50 M3/h

Maximum Working Pressure:: 4.5Mpa

Weight:: 10 KG

Dimension(L*W*H):: Refer to the data in the table below

Working Temperature Range:: 0-50℃

Product Name:: coil titanium tubes

Application:: Cooling and heating

Feature:: Corrosion resistant

Material:: 316L / SUS304 / Copper / Titanium

Package:: Wooden Case

Is-customized:: Yes

After-sales Service Provided:: Video technical support/Online support

Certification:: ce/ISO9001:2008

Quantity:: 13.5Coils

Heat exchanger type:: Tube Heat Exchanger

Products Description

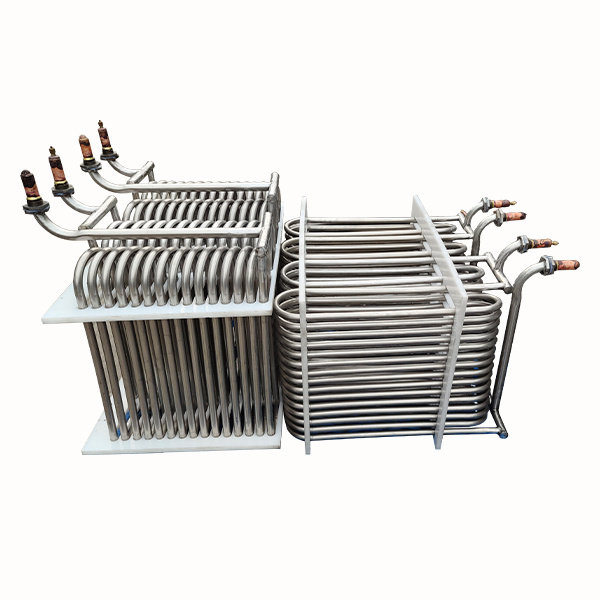

Coil Heat Exchanger

Processing various coils,bent pipes/bending pipe,bent heads,U-tubes,rings,snake-shaped tubes, cooling tubes,steam tubes,condensers
,steam tubes for heat exchangers,heat exchanger,evaporator,cooling tube fins,Profiled bending pipe,profiled tubes, radiators
etc.according to customer requirements

the product material and shape are customized according to customer requirements

Support customization, complete specifications, large quantity and excellent price, high quality, precision production

Coil Evaporator/Condenser

Work Condition

1)Refrigerant: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater,saltwater, ground water etc .

Material

Pure Titanium 、 316L/304 Stainless Steel、 Coppe r

Cooling Capacity

10-850 kw,Support customization

Quantity: 4.5-18.5 circles

Diameter: 16 or 19

Specs for the exchanger range from 1-60 HP

Please contact us with your drawings and samples for manufacturing

Corrosion Resistant

Coil Heat Exchanger

1.Fast heat exchange

2.Compact structure and small footprint

3.Flexible design+complete specifications

4.Strong practical pertinence

5.Energy saving

6.Light weight

7.Wide range of application conditions

8. Wide range of applications

9.Easy to install

10.Easy to clean, long cleaning cycle

11. Easy to operate

12.Removable

13. Anti-corrosion

Product Paramenters

Wholesale Price Cooling System air conditioning evaporator Coil titanium Evaporator coil heat exchanger for aquarium

Model

Quantity

(e)

Diameter

(d)

Freon Out

(a1)

Freon In

(a2)

External Dimensions

A B C

WHC-0.5DG

4.5 Circle

φ19

φ12.7

370 165 φ150mm

WHC-1.0DG

6.5 Circle

φ19

φ12.7

375 240 φ150mm

WHC-1.5DG

8.5 Circle

φ19

φ12.7

375 305 φ150mm

WHC-2.0DG

10.5 Circle

φ19

φ12.7

375 370 φ150mm

WHC-3.0DG

13.5 Circle

φ19

φ19.5

φ12.7

375 475 φ150mm

WHC-5.0DG

18.5 Circle

φ19

φ19.5

φ12.7

375 645 φ150mm

Our Advantages

Professional Technical Team

1:1 3D Design drawings

Our company has a mature technical team, which can customize heat exchangers of various specifications according to customer requirements, provide 3D design drawings, and the effect is intuitive

Factory Shipment,

Quality Stable and Reliable

Our own factory covers an area of 5,000 acres,direct shipment, cost-effective
Our Product:Mature design,rigorous production process,Factory inspection, strict control,Long service life and stable performance.

Complete certificates

Our company has CE certificate，Our company's products have also applied for many patents.

All products of our company strictly follow pressure vessel manufacturing specifications

Support Customization

Heat exchanger products of various specifications can be customized and can be matched with many programs
Tube material:aluminum brass,316L stainless steel,SS304 stainless steel,pure titanium
Outer Shell material:PP platsic, Carbon steel, Stainless steel
