Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ12F-10E/J/N/12V/R
-
IP level:
-
IP65
-
Product name:
-
12mm Metal IP65 push button switch
-
Head shape:
-
Flat Round Ring Illuminated
-
Operation type:
-
Momentary
-
Contact configuration:
-
1NO
-
Terminal type:
-
Pin terminal
-
Material:
-
Nickel-plated brass
-
LED color/voltage:
-
Red/12V
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
operation stroke:
-
2.0mm
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ12F-10E/J/N/12V/R
-
IP level:
-
IP65
-
Product name:
-
12mm Metal IP65 push button switch
-
Head shape:
-
Flat Round Ring Illuminated
-
Operation type:
-
Momentary
-
Contact configuration:
-
1NO
-
Terminal type:
-
Pin terminal
-
Material:
-
Nickel-plated brass
-
LED color/voltage:
-
Red/12V
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
operation stroke:
-
2.0mm
Products Description

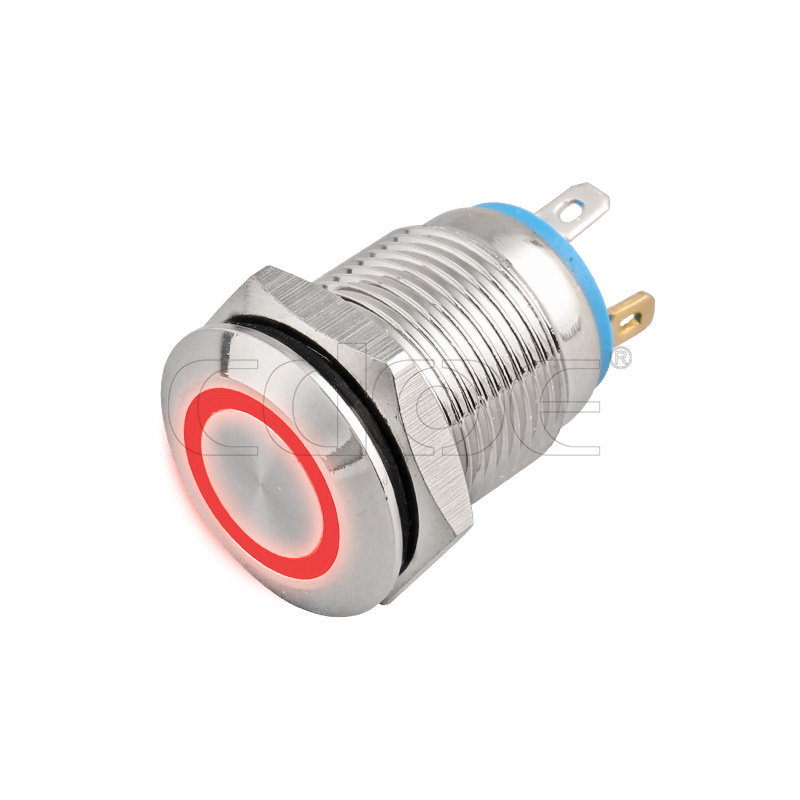

Metal ip65 12mm mini switch momentary button one normally open 4 pin terminal ring illuminated
|
Mounting hole size :
|
|
|
12mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
2A/36V DC
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO
|
|
||||
|
Head shape：
|
|
|
Flat
|
|
||||
|
Crust material:
|
|
|
Stainless Steel
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Electrical life :
|
|
|
≥50,000 times
|
|
||||
|
Mechanical life:
|
|
|
≥1，000,000 times
|
|
||||
|
Protection grade :
|
|
|
IP65
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Illumination type:
|
|
|
Ring illumination
|
|
||||
|
Led color:
|
|
|
Red
|
|
||||
|
Led voltage:
|
|
|
2V(3V),5V(6V),12V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
|
Certificates:
|
|
|
ISO 9001, UL,CE, SGS, ROSH,CCC,
|
|
||||
|
Why should you choose us?
|
|
|
|
|
||||
|
*
Founded in 2003 and experienced in the field of pushbutton switches for
more than 20 years
.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system. * And the world's top 500 enterprises have cooperation.
*
Multiple regional offices:Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.
*
Participated in several exhibitions:
Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions
* A number of technical patents: CCC, UL, Rohs, TUV, UL, etc. * Main production buttons: A nti-vandal metal push button switches (which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches (which can be used in elevator),touch switch ,20a high current switch, signal lamp（indicator）, buzzers and push button accessories. * Large quantity can enjoy a certain discount. |
|
|
|
|
||||
Product details
Support electroplated oxidation shell push button switches
Product packaging
Product packing method.
We pack
50 pieces
diameter
12 mm metal push button
into 1 foam box to protect them.
We supply 50 pieces rubber rings
.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
