Quick Details
-
Filling Accuracy:
-
99%, ±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Boom
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product Name:
-
Rotary Table Yogurt Cup Filling Sealing Machine with High Quality
-
Function:
-
Filling + Sealing
-
Speed:
-
800 cups per hour
-
Material:
-
Stainless Steel 304
-
Cup Diameter:
-
30-120mm (Customized)
-
Filling Volume:
-
50-300ml (Customized)
-
Sealing Film:
-
Plastic Roll Film, Plastic PreCut Film, Aluminum Pre-Cut Film
-
Applicable:
-
Yogurt, Water, Ice Cream, Sauce, Honey, Seasoning, etc.
-
Control System:
-
Touch Screen + PLC Control
Quick Details
-
Machinery Capacity:
-
6000BPH, 400BPH, 20000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Other
-
Filling Material:
-
Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
99%, ±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Boom
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product Name:
-
Rotary Table Yogurt Cup Filling Sealing Machine with High Quality
-
Function:
-
Filling + Sealing
-
Speed:
-
800 cups per hour
-
Material:
-
Stainless Steel 304
-
Cup Diameter:
-
30-120mm (Customized)
-
Filling Volume:
-
50-300ml (Customized)
-
Sealing Film:
-
Plastic Roll Film, Plastic PreCut Film, Aluminum Pre-Cut Film
-
Applicable:
-
Yogurt, Water, Ice Cream, Sauce, Honey, Seasoning, etc.
-
Control System:
-
Touch Screen + PLC Control
PRODUCT DESCRIPTION

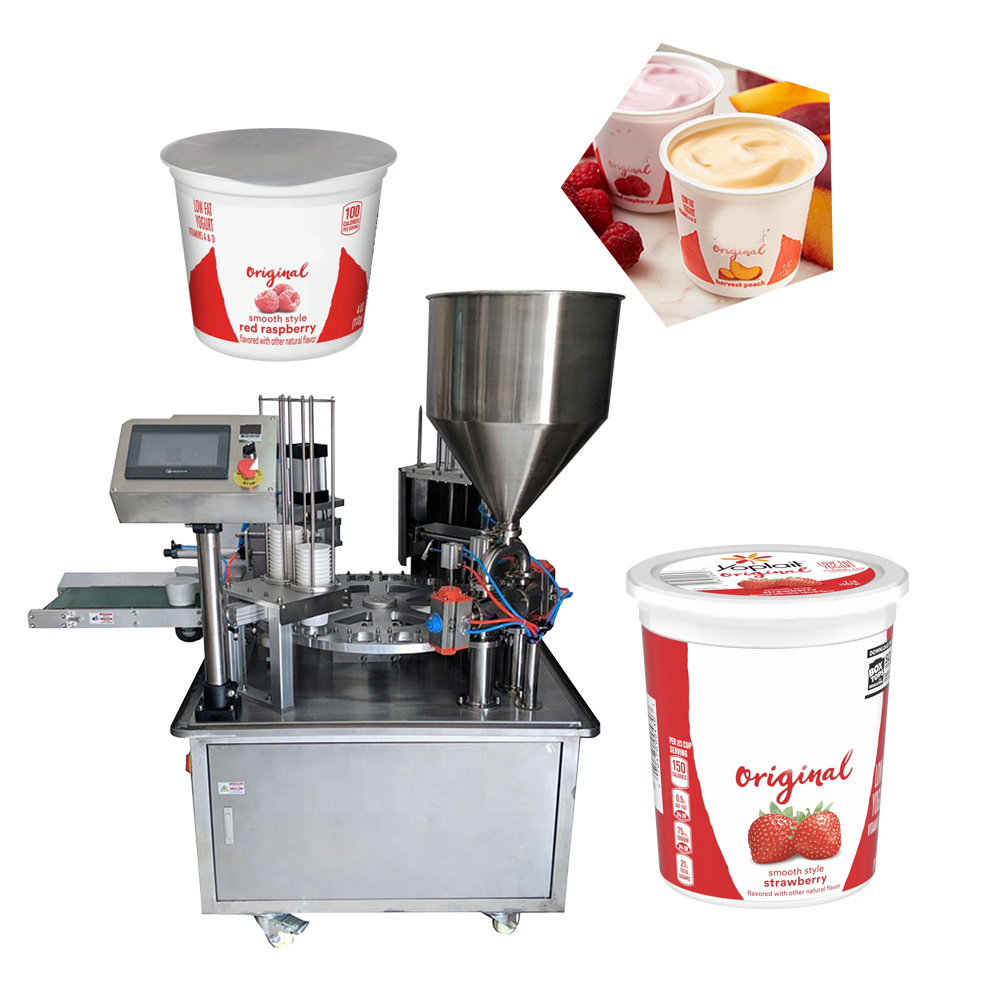

Small Manufacturing Machines Automatic Leben Yoghurt Filling Machine
HTC-1 Rotary Cup Filling Sealing Machine adopts pneumatic gap operation mode. The electric appliance adopts a German programmable logic controller, which has the functions of automatic cup drop, filling, vacuum film, single-channel heat sealing, and automatic discharging of the finished product. Adopts an intelligent digital display temperature control system to control the sealing temperature, the temperature error is less than ±1%, the sealing strength is high, and the sealing performance is good.
Suitable For:
Yogurt, Water, Ice Cream, Sauce, Honey, Seasoning, etc.
SPECIFICATIONS
|
Parameters
|
Number Reference
|
|
|
|
Model
|
HTC-1
|
HT-NC-2, HT-KC-2
|
|
|
Productivity
|
800cups/h
|
1200-1600cups/h
|
|
|
Filling Head
|
1 Head
|
2 Heads
|
|
|
Cup Diameter
|
30-120mm (Customized)
|
|
|
|
Filling Volume
|
50-300ml (Customized)
|
|
|
|
Filling Accuracy
|
±1%
|
|
|
|
Sealing Film
|
Plastic Roll Film, Plastic Pre-Cut Film, Aluminum Pre-Cut Film
|
|
|
|
Control System
|
Touch Screen + PLC Control
|
|
|
|
Gas Consumption
|
0.6m³/min
|
|
|
|
Power
|
1KW
|
|
|
|
Voltage
|
AC380V/220V, 50Hz/60Hz
|
|
|
|
Machine Dimension
|
1250*1250*1650mm (for reference only)
|
|
|
|
Machine Weight
|
About 250KG
|
|
|
FEATURES AT A GLANCE
1.
The sealing strength is high, and the sealing performance is good.
2.
The body is made of stainless steel, which meets relevant food hygiene standards.
3.
Suitable for all kinds of imported and domestic aluminum-plastic, PP, PZ, CPP, and other composite roll packaging and sealing materials. It is widely used in plastic boxes for beverages, milk, yogurt, dairy products, soy products, fruit frozen brewing and other industries.
4.
Equipped with a solid-state PLC and a touchscreen HMI gives the flexibility to configure the equipment properly for your application.
